Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
LY011
-
Product Name:
-
linear actuator with control unit and remote control
-
Typical Applications:
-
Medical Device
-
Noise:
-
Low Noise Level
-
No load speed:
-
4-30mm/s
-
Stroke:
-
Customizable
Quick Details
-
Speed(RPM):
-
2600RPM
-
Continuous Current(A):
-
0.5~2.8A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LUNYEE
-
Model Number:
-
LY011
-
Product Name:
-
linear actuator with control unit and remote control
-
Typical Applications:
-
Medical Device
-
Noise:
-
Low Noise Level
-
No load speed:
-
4-30mm/s
-
Stroke:
-
Customizable
Product Overview

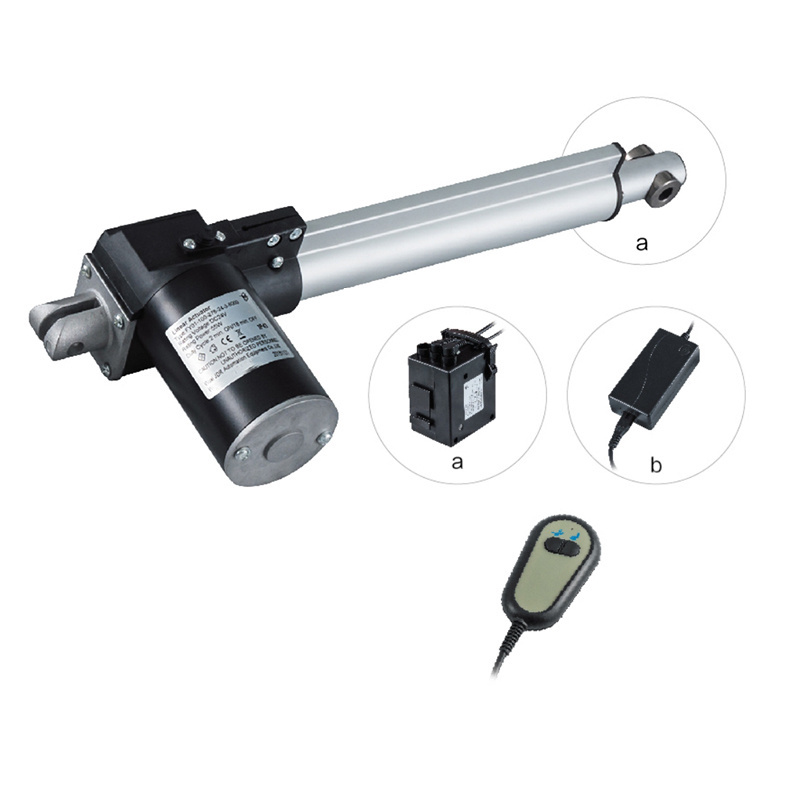

LY011 High repurchased rate limit switch Feedback Motor fast linear actuator with control unit and remote control for RV
LY011
linear actuator with control unit and remote control
is a multi-purpose product, and it is an indispensable and important product in RV. Excellent product performance and strong output load capacity make this product assume important responsibilities in industrial applications.
PRODUCT SPECIFICATIONS
If the product model cannot meet your requirements, please feel free to inform us of your requirements, such as stroke, voltage,usage, thrust, speed and quantity. Our company also has other types of linear actuators for you to choose and can be customized according to your requirements!
Stroke(100-1200mm) can be customized. Please contact us soon, you can contact us+8619337118652(whatsapp) or email: sales019 (at)lunyee.com
|
Input Voltage
|
12v/24v DC
|
|
Load Capacity
|
6000N
|
|
No-load speed
|
4-30mm/s
|
|
Stoke
|
100mm-1200mm （customizable）
|
|
Type of Duty
|
10%, 2min.on 18min.off
|
|
Limit Switches
|
Inner
|
|
Operation temperature
|
-15℃~45℃
|
|
Color
|
Black or Grey
|
|
Protection Class
|
IP43
|
|
Current
|
0.5-2.8A
|
|
Output Power
|
55W
|
|
Commutation
|
Brush
|
|
Efficiency
|
IE3
|
|
Installation dimension
|
Stroke+175mm
|
Product Features
1. Mini DC permanent magnet motor, small size, easy to install;
2. The usability is flexible and customized according to requirements, the speed is 4mm/s-25mm/s;
3. Load limit 6000N (600KG);
4. Operating temperature -15℃~45℃;
5.Hall signal feedback can be selected (Hall adopts American imports);
6. Built-in Limit switch, self-locking ability;
7. Protection grade IP43, waterproof and dustproof.
8. Low noise
9. high-end materials, durable and long-lasting;
10. Pure aluminum alloy shell, the screws are GB standard, and the internal wire is American standard;
11. Electrode plugs can choose national standard, American standard, European standard, etc.
