Quick Details
-
Brand Name:
-
KACON
-
Model Number:
-
HRF-M1Y
-
material:
-
Engineering Plastics (ABS)
-
Contact resistance:
-
Below 50mΩ (first time)
-
Insulation resistance:
-
100MΩ and above 500VDC test
-
Dielectric withstand voltage:
-
2000VAC time 1 minute
-
Ambient temperature:
-
-25℃~+70℃
-
Ambient humidity:
-
45%~85%RH
-
Class of protection:
-
IP54 EC/EN60529
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KACON
-
Model Number:
-
HRF-M1Y
-
material:
-
Engineering Plastics (ABS)
-
Contact resistance:
-
Below 50mΩ (first time)
-
Insulation resistance:
-
100MΩ and above 500VDC test
-
Dielectric withstand voltage:
-
2000VAC time 1 minute
-
Ambient temperature:
-
-25℃~+70℃
-
Ambient humidity:
-
45%~85%RH
-
Class of protection:
-
IP54 EC/EN60529
Product technical parameters

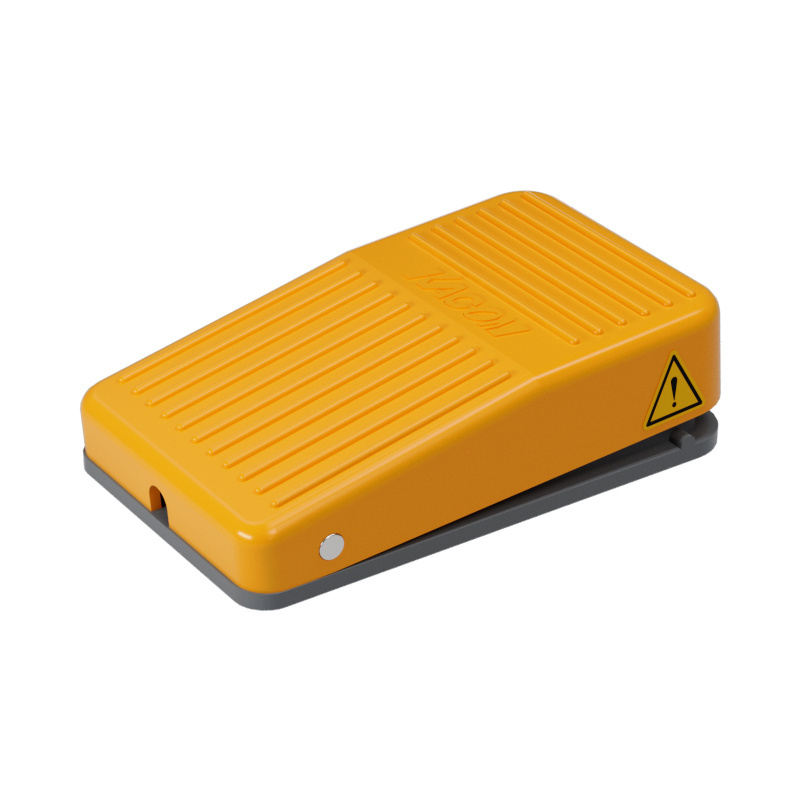

Small plastic foot switch
1.
Small size, beautiful appearance, cost-effective, suitable for all kinds of machinery and equipment control.
2.
Made of flame retardant engineering plastic ABS, high strength, Resistant to impact and wear.
3.
Available in up to 8 colors, gray, yellow, red, Orange, green, blue, white, black.
4.
Built-in V15F-01C instantaneous microswitch, obtain UL, c-UL, VDE, CE certification, contact plated 24K gold treatment, Large load capacity, high contact reliability.
5.
Standard configuration R 2 ◆ VV 0.5mm x 2-core x 2m cable.
|
HRF-M1-①-②-③-④-⑤ Small plastic foot switch
|
|
|
|
|||
|
①
|
Pedal color
|
③
|
connector
|
|||
|
C
|
gray
|
NO
|
No connector (standard configuration）
|
|||
|
Y
|
yellow.
|
A
|
6.35mm audio connector (standard) can be customized to 3.5mm
|
|||
|
R
|
red.
|
D
|
DB9 Serial port connector
|
|||
|
A
|
orange.
|
U
|
USB connector
|
|||
|
G
|
green.
|
④
|
Cable line
|
|||
|
B
|
blue.
|
NO
|
0.5mm x 2m(standard configuration)
|
|||
|
W
|
white.
|
3
|
0.5mm ×3m
|
|||
|
K
|
black.
|
5
|
0.5mm ×5m
|
|||
|
②
|
Functional option
|
⑤
|
Combined form
|
|||
|
NO
|
standard configuration
|
NO
|
Single linkage
|
|||
|
F
|
waterproof type protection class IP67
|
2P
|
Double pedals
|
|||
|
|
|
3P
|
Three-pedal combination
|
|||
|
|
|
4P
|
Four pedal combination
|
|||
|
|
|
5P
|
Five pedal combination
|
|||
|
|
|
6P
|
Six pedal set
|
|||
FAQ
Q: Can we customize the length of the cable?
A: Yes, normally we offer 2m cables as standard, but per customer requirements, we can customize the cable length.
Q: What’s the combined form of this switch?
A: Combine with 2, 3, 4, 5, 6 pcs.
Q: What machines can I used on with this foot switch?
A: Normally this foot switch can be used on like CNC, sewing machine.
Q: What are the dimensions of this item?
A: 100x61x32mm.
