thermogravimetric analyzer for Free water, structured water content Failure characteristics of additives, fillers, binders

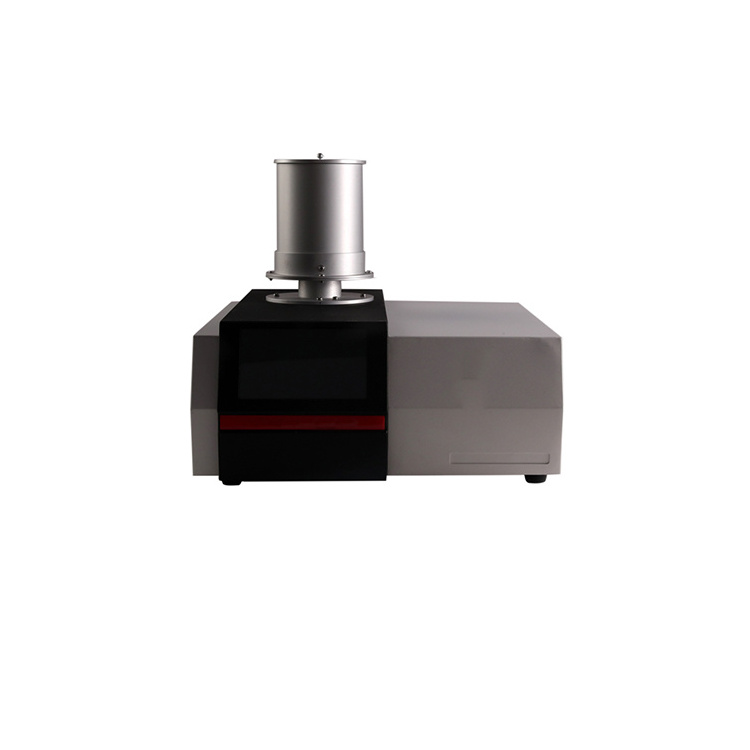

Thermogravimetric Analyzer

Thermogravimetric analysis (TG, TGA) is to observe the change of sample mass with temperature or time during the process of heating and constant temperature. The purpose is to study the thermal stability and composition of the material.

It is widely used in research and development, process optimization and quality monitoring in various fields such as plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials.

Structural advantages

1. The furnace body is heated by double-row winding of customized nickel-chromium wire, which reduces interference and is more resistant to high temperatures.

2. The pallet sensor is made of alloy wire and has the advantages of high temperature resistance, oxidation resistance, and corrosion resistance.

3. The power supply and circulation heat dissipation part are separated from the main unit to reduce the impact of heat and vibration on the micro-thermal balance.

4. It adopts a top-opening structure and is easy to operate. It is difficult to move the furnace body upward to place the sample, which may easily cause damage to the sample rod.

5. The main unit uses a heating furnace body to insulate the thermal impact on the chassis and micro-heating balance.

6. The furnace body can be replaced according to customer requirements

Technical Parameters:

1.Temperature range: room temperature~1150℃

2. Temperature resolution: 0.01℃

3. Temperature fluctuation: ±0.01℃

4. Heating rate: 0.1~100℃/min

5. Temperature control method: heating, constant temperature

6. Program control: Program to set multi-stage heating and constant temperature

6. Balance measurement range: 0.01mg~3g, expandable to 50g [Sartorius]

7. Accuracy: 0.01mg

8. Constant temperature time: arbitrarily set

9. Display mode: Chinese character large-screen LCD display

10. Atmosphere device: Built-in gas flow meter, including two-way gas switching and flow size control

11. Software: Intelligent software can automatically record TG curves for data processing and print experimental reports

12. Data interface: standard USB interface, special software (software will be upgraded for free from time to time)

13.Power supply: AC220V 50Hz

14. Appearance size: 500*400*430mm (length, width and height)

15. The software has a multi-point correction function, making high and low temperature tests more accurate.
