Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MING
-
Dimension(L*W*H):
-
customized
-
Weight:
-
18000 KG
-
Power:
-
1.5kw~2.2kw
-
Warranty:
-
1 Year, 12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Commodity name:
-

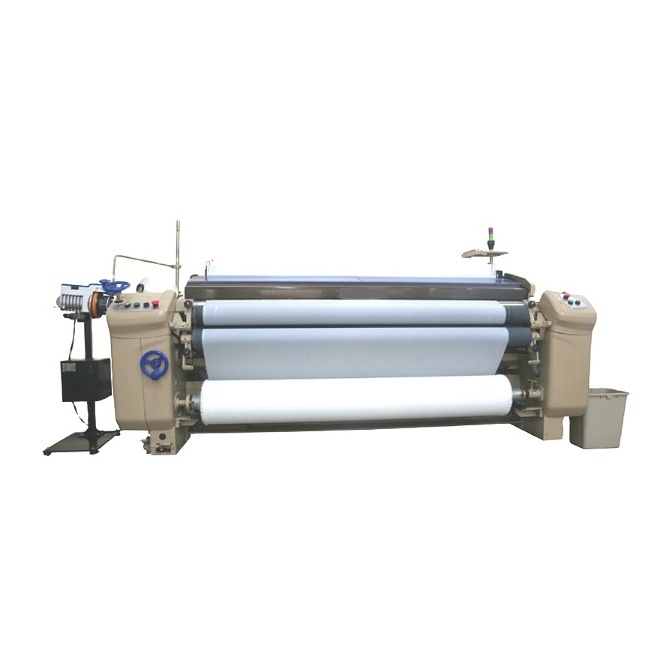

280cm cam shedding waterjet loom textile weaving machine
-
Reed width:
-
140cm~280cm
-
Voltage:
-
380v, 415v, 220v
-
Approved:
-
A-TUF, ISO
-
OEM:
-
Accept
-
Capacity:
-
1000 sets per month
-
Nozzle:
-
2 nozzles
-
Speed:
-
800-1000RPM
Quick Details
-
Type:
-
Water Jet Loom
-
Production Capacity:
-
98%
-
Application:
-
Polyester fabric weaving
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MING
-
Dimension(L*W*H):
-
customized
-
Weight:
-
18000 KG
-
Power:
-
1.5kw~2.2kw
-
Warranty:
-
1 Year, 12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Commodity name:
-
280cm cam shedding waterjet loom textile weaving machine
-
Reed width:
-
140cm~280cm
-
Voltage:
-
380v, 415v, 220v
-
Approved:
-
A-TUF, ISO
-
OEM:
-
Accept
-
Capacity:
-
1000 sets per month
-
Nozzle:
-
2 nozzles
-
Speed:
-
800-1000RPM
|
Reed
|
150cm, 170cm, 190cm, 210cm, 230cm, 260cm, 280cm, 320cm, 340cm
|
|
Effective Reed
|
Deduct 0-50cm within 210cm(standard).
Deduct 0-70cm above 230cm(optional)
|
|
Power
|
2.2~4.0kw
|
|
Structure
|
Case structure, oil lubrication system
|
|
Nozzle
|
1~4
|
|
Pump
|
1~2
|
|
Measuring Feeder
|
(RDP) or electronic measuring&storage system
|
|
Beating
|
Bi-crank multi-laid beating structure
|
|
Shedding
|
Plain/Cam/Dobby
|
|
Heald Frame
|
Max 8/10/16 pieces
|
|
Let off
|
MLO, 0~Max transmission, belt transmission mode (optional)
|
|
|
Electronic let off (optional)
|
|
|
Beam diameter: 800mm(standard), 914mm & 1000mm(optional)
|
|
|
L/R bi-bearing, bi-cudgel(standard),
Heavy duty style for high-density fabric (optional)
|
|
Take up
|
Mechanical take up, weft density: 5~60 picks/cm(standard），35~90picks/cm(optional)
|
|
|
Electronic take up(optional), weft density: 17~82 picks/cm
|
|
|
S or L take-up pattern, Max. Diameter: 520mm
|
|
Catch Cord Device
|
Gears cross-twist system. automatic yarn cutting sensor
|
|
Yarn-end Disposal
|
False twist spindle
|
|
Weft Cutting
|
Mechanical cutter
|
|
Electric
|
Super optical feeler
|
|
|
Push-Button operation panel or touching operation panel for warm-up, star,
Stop, slow inch, reversed slow inch.
|
|
|
Digital watch indicates output, speed, efficiency and stop frequency
|
|
|
4-color lamp for indicating stop cause
|
|
|
Slow-motion system
|
|
Blower
|
Mechanical(standard), Electric(0.375kw)(Optional)
|
|
Weft Supply Stand
|
Floor-mounted 2~8 pieces per set
|
