Quick Details
-
Symbologies:
-
1D/2D/QR Code
-
NFC:
-
ISO14443 A/B, IC Card, ID Card, Mifare, 13.65MHZ
-
Application:
-
Access Control,Kiosk,Vending Machines
-
Successful Prompt:
-
Green LED, Beeper
-
Firmware:
-
download and upgrade capability
-
SDK:
-
Windows, Linux and Android (JAVA)
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO/IEC 14443 A/B
-
Place of Origin:
-
China
-
Symbologies:
-
1D/2D/QR Code
-
NFC:
-
ISO14443 A/B, IC Card, ID Card, Mifare, 13.65MHZ
-
Application:
-
Access Control,Kiosk,Vending Machines
-
Successful Prompt:
-
Green LED, Beeper
-
Firmware:
-
download and upgrade capability
-
SDK:
-
Windows, Linux and Android (JAVA)

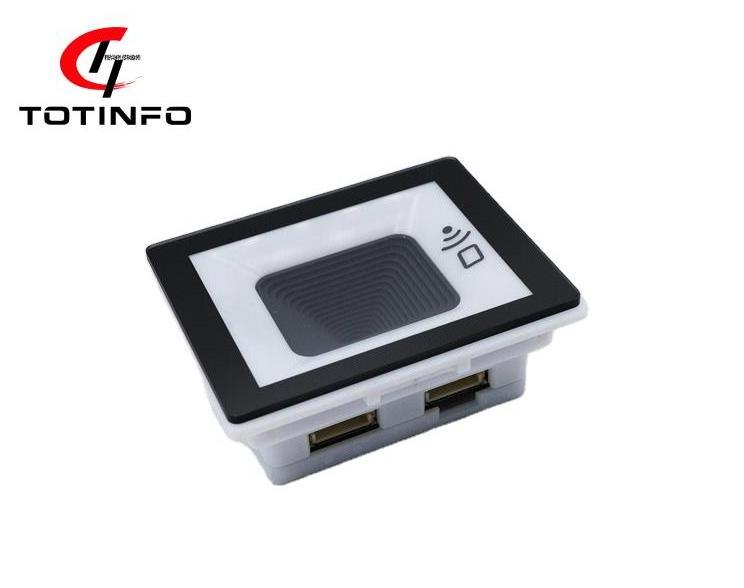

ID IC 13.56mHZ NFC Card Reader Support Read and Write and Green Pass EU QR code Scanner for Turnstile
|
Acquisition Performance |
||
|
Sensor |
Image Type,CMOS Sensor |
|
|
Acquisition Speed |
1/120fps |
|
|
FOV |
Diagonal 84°,Level 72°,Vertical 54° |
|
|
Reading Performance |
||
|
Precision |
≥5mil |
|
|
Reading Mode |
Close to the barcode, 0-30cm(According to the different barcode) |
|
|
Depth of Field |
Testing Condition |
Depth of Field |
|
Code 128 10mil 18bytes (on Paper) |
40~150mm |
|
|
Code 128 18bytes (on Screen) |
40~160mm |
|
|
QR 10mil 160bytes (on Paper) |
30~100mm |
|
|
DM 15mil 100bytes (on Paper) |
30~120mm |
|
|
QR 18bytes (on Screen) |
30~200mm |
|
|
Scan Angle |
Roll 360°, Pitch ± 55°, Skew ± 55° |
|
|
Symbologies |
2D: QR Code,Data Matrix, PDF417,Aztec code, Han Xin Code,Dotcode,OCR,etc. |
|
|
1D: UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, ISBT 128, Code 39, Code93,Code 11, Interleaved 2 of 5, Industrial 2 of 5,Matrix 25, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 DataBar,etc. |
||
|
Print Contrast |
20% minimum reflectance |
|
|
LED |
||
|
Illumination |
White LED |
|
|
NFC |
||
|
13.56Mhz NFC Card Reading |
Protocol : ISO/IEC 14443 A ISO/IEC 14443 B Card : MIFARE Classic ( Can Read UID, Can Read and Write the Block ) MIFARE Ultralight C ( Can Read UID, Can Read the Page ) MIFARE Desfire (Only support Reading UID, other functions need customization) FELICA ( Only support Reading UID, other functions need customization) Other Function : (1) Support the ADPU of the ISO/IEC 14443 B P rotocol C ard (2) Support Chinese ID card reading |
|
|
Reading Distance |
0~7cm |
|
|
Physical Parameter |
||
|
Size (mm) |
69×53×42(L×W×H) |
|
|
Weight |
<35g |
|
|
Interface |
||
|
Socket |
Double 5PIN sockets, 2.0mm Pitch, POS industry general. 3-3.6V or 3.6-16V power supply (configurable) Single 5PIN:USB SERIAL PORT/USB KBW Single 5PIN:3V TTL/5V TTL/RS232/RS485/Wiegand |
|
|
Scanning Mode |
Command Mode/Sense Mode/Trigger Mode |
|
|
Notification |
Green LED, Beeper |
|
|
Cable(Optional) |
2 meter USB cable,2 meter RS232 cable,customized |
|
|
Environmental Parameter |
||
|
Operating Temperature |
-30℃ ~ 70℃ |
|
|
Storage Temperature |
-40℃ ~ 80℃ |
|
|
Humidity |
5% ~ 95% RH (non-condensing) |
|
|
Ambient Light |
Max.100,000 Lux |
|
|
Electrical Parameter |
||
|
Input Voltage |
Input with 5-pin or 12-pin FPC; the voltage 3-3.6V or 3.6-16V (optional) |
|
|
Operating Current |
<200mA (3.3v Input), <160mA (5v Input), <100mA(10v Input) |
|
|
Standby Current |
<5mA(3.3v Input) |
|
