Quick Details
-
Production Capacity:
-
100
-
Power:
-
.5KW
-
Dimension(L*W*H):
-
1500 1200 1200mm
-
Product name:
-
Double Head Welding Machine
-
Usage:
-
PVC Windows Welding
-
Keyword:
-
UPVC PVC Window Door Machine
-
Air pressure:
-
0.5-0.8MPa
-
Place of Origin:
-
Jinan
-
Input power:
-
2.5KW
Quick Details
-
Brand Name:
-
Mingmei
-
Voltage:
-
220v
-
Weight:
-
500 kg
-
Production Capacity:
-
100
-
Power:
-
.5KW
-
Dimension(L*W*H):
-
1500 1200 1200mm
-
Product name:
-
Double Head Welding Machine
-
Usage:
-
PVC Windows Welding
-
Keyword:
-
UPVC PVC Window Door Machine
-
Air pressure:
-
0.5-0.8MPa
-
Place of Origin:
-
Jinan
-
Input power:
-
2.5KW
SHJ02-120*3500 Two head welding machine
Main features
1). The window machine is used for PVC door-window welding.
2). PLC controls the welding action program, high reliability.
3). Machine heads can work separately or jointly.
4). Free angle welding of right machine head.
5). Parameters can be set to meet various profiles' processing requirements.
6). High welding precision.
7). Imported PLC and other main electric components.
8). One of the heads can weld various angles, which can meet the customers need of welding an arc and other special-shaped windows. Good welding corner appearance.
9). Widely window type application as follows:

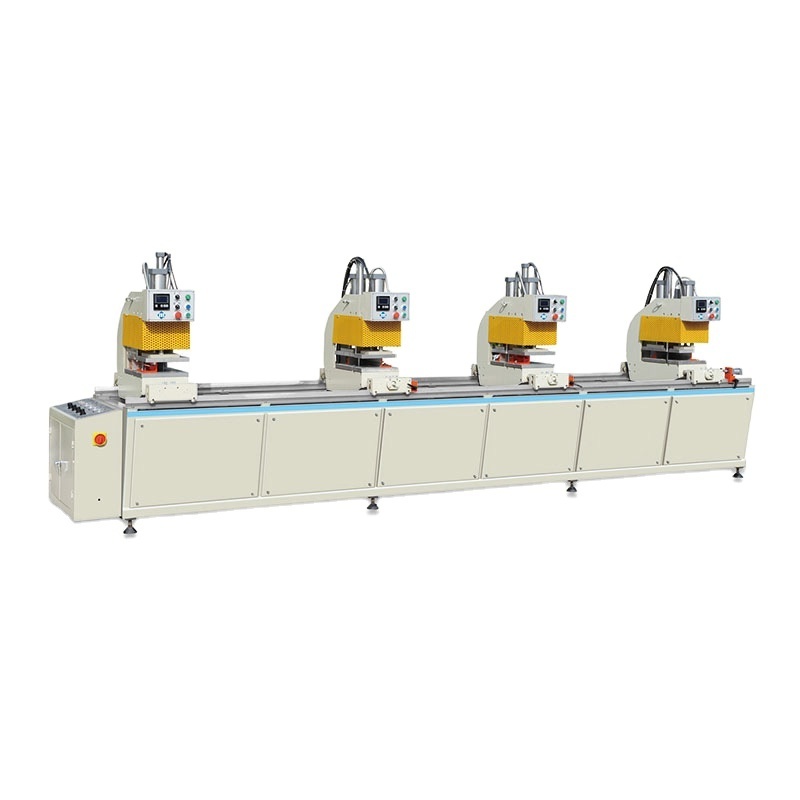

10). Optional model: SHJ03--120,SHJ04--120 for different machinery head. Owning different machinery welding capacity.
Technical Parameters
|
Power voltage |
220V /380V 50HZ |
|
Input power |
2.5KW |
|
Air pressure |
0.5~0.8MPa |
|
Air consumption |
100L/min |
|
Welding range |
400mm-3500mm |
|
Welding profile height |
20mm~120mm |
|
Welding profile width |
0-120mm |
|
Welding angle range |
30°~180°(max welding joints size 90mm) |
|
Overall dimension |
4400*950*1700mm |
|
Weight |
1300kg |
