Quick Details
-
Power Source:
-
Manual
-
Place of Origin:
-
Taiwan, China, Taiwan
-
Brand Name:
-
OEM
-
Model Number:
-
RFL-IN10
-
Filter Size:
-
2" OD x 10" Length
-
Port Size:
-
1/4" NPTF
-
Filter Type:
-
In-Line
-
Color:
-
Transparent
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
1 Year
-
Application:
-
Commercial, Household
-
Power Source:
-
Manual
-
Place of Origin:
-
Taiwan, China, Taiwan
-
Brand Name:
-
OEM
-
Model Number:
-
RFL-IN10
-
Filter Size:
-
2" OD x 10" Length
-
Port Size:
-
1/4" NPTF
-
Filter Type:
-
In-Line
-
Color:
-
Transparent

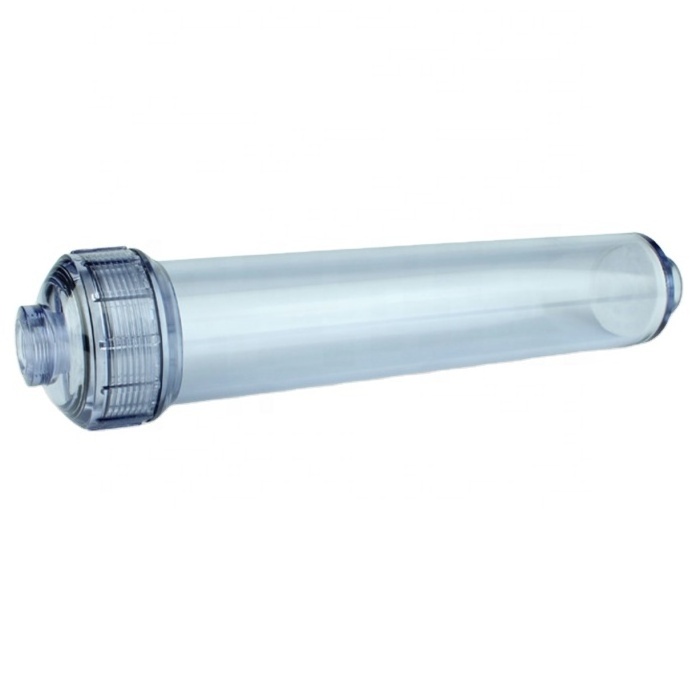

10" Refillable Clear Inline Water Filter Cartridge
for Water Purification System
Features:
- Refillable Inline Cartridges are designed to meet a wide range of filtration applications.
- These empty cartridges can be customized with any filtration media or resin by choice.
- Cartridges can be used as a single stage of treatment or integrated into a water treatment system.
- TWDC refillable Inline cartridges come with a built-in mesh pad to keep the media from being washed out of the cartridge.
- This durable cartridge offer flexibility and high quality.
Application:
- Residential reverse osmosis water filter system.
- Aquarium RO/DI system.
- Kitchen Water Purifier.
Specification:
| Item No. | RFL-IN10 |
| Size | 2" OD x 10" Length |
| Material | Polypropylene / ASN |
| Inlet/Outlet Port Size | 1/4" NPT |
BIO Ceramic
Bio ceramic cartridges are made of ceramic filtration material. The filtration material, in the form of ceramic balls, is produced with carefully selected ceramic clay and porous binding material. The production process involves dissipation, sieving, compacting and frying. The surface is hard and micro-porous. In addition, this material is characterized by a larger functional surface and has more pores.
On contact with water, the hallmarks of bioceramic cartridges are:
- a greater capacity for impurity removal,
- reduced pressure loss,
- prolonged filtration period,
- reduced water usage in reverse filtration.
The new, original design of the material increases water throughput, increases water quality and reduces energy usage.
MINERAL
Mineral Filter cartridges saturate water with mineral salt ions. The appropriate dissipation of minerals contained in the cartridge filling causes their dissolution in water. This, in turn, improves the taste and smell of water.
What do carbon filters remove from water?
Water purification removes harmful contaminants from water. Filtration, which physically blocks or chemically removes contaminants, is a different purification technique from reverse osmosis, which filters water through a semi-permeable membrane, and distillation, which vaporizes water to separate it from the contaminants. Carbon filtration is a relatively cheap and efficient way of to purify water.
How Carbon Filters Work
Carbon filters work so well because of their large surface area. According to the Home Water Purifiers and Filters website, one pound of carbon has a surface area of approximately 125 acres. This allows carbon to physically absorb a large amount of chemicals and substances that pose serious dangers to the normal domestic water supply. Many of these substances can cause cancer, neurological problems and other health risks if ingested in large quantities.
Types of Carbon Filters
There are generally two types of carbon filtration: granular activated carbon and block carbon . Activated carbon has a slightly positive charge so it can attract impurities, but block carbon has a higher contaminant removal ratio. However, there are many factors that affect this rate, including the amount of carbon in the unit, the flow of water, the length of time contaminants spend in contact with the carbon and the particle size. Carbon can remove particles 50 micrometers to 0.5 micrometers in size.
What Carbon Filters Remove
Carbon filters are very effective at removing a number of deleterious chemicals, reports the Home Water Purifiers and Filters site. These include chlorine, benzene, radon, solvents trihalomethane compounds, volatile organic chemicals such as pesticides and herbicides and hundreds of other man-made chemicals that may come into contact with tap water as it proceeds through the system. In addition, filters remove bad tastes and odors from the water.
What Carbon Filters Don't Remove
Carbon filters are not particularly successful at removing dissolved inorganic contaminants and heavy metals such as minerals, salts, antimony, arsenic, asbestos, barium, beryllium, cadmium, chromium, copper, fluoride, mercury, nickel, nitrates, selenium, sulfate, thallium and other contaminants, which may require a reverse osmosis system or distiller instead. Carbon block filters can remove some large, dangerous microorganisms, such as giardia and cryptosporidium, that can cause a number of diseases and epidemics, but nothing less than the size of the carbon itself. Viruses are too small to be removed by carbon, as they usually range between 20 and 400 nanometers in size, according to the University of Oregon.
Considerations
Carbon filters are even more effective if you ad physical or chemical absorption to the mix. Iron, manganese and hydrogen sulfide can be removed by high quality carbon filters, but a manganese iron reduction filter is generally more effective at removing these particles, especially at higher concentrations. A sediment pre-filter is better at removing sediment and particulate material, and extends the life of the carbon filter by preventing clogs, according to Home Water Purifiers and Filters.
