Hospital Patient Emergency Calling Bell with Software Management Wireless Nurse Call System

Hospital Patient Emergency Calling Bell with Software Management Wireless Nurse Call System

FOB Reference Price: Get Latest Price

≥2 Pieces

US $10.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Hospital Patient Emergency Management Wireless Nurse Call System

Wireless Mode:: RF Radio

Screen Material:: LED

Screen Size:: 10.1 inch

Call button Battery:: 23A/12V Battery

Installation Method:: Wall Mount

Power Supply:: DC 12V 1A

Working Distance:: 500m

Application:: hospitals, hotels, nursing homes, shopping malls, clinics

Warranty:: 2 Year

Quick Details

Place of Origin:: Fujian, China

Brand Name:: MEEYI

Model Number:: W900+W921-S2 +W601DL-G66+Y-FS2+W624-GT1

Product name:: Hospital Patient Emergency Management Wireless Nurse Call System

Wireless Mode:: RF Radio

Screen Material:: LED

Screen Size:: 10.1 inch

Call button Battery:: 23A/12V Battery

Installation Method:: Wall Mount

Power Supply:: DC 12V 1A

Working Distance:: 500m

Application:: hospitals, hotels, nursing homes, shopping malls, clinics

Warranty:: 2 Year

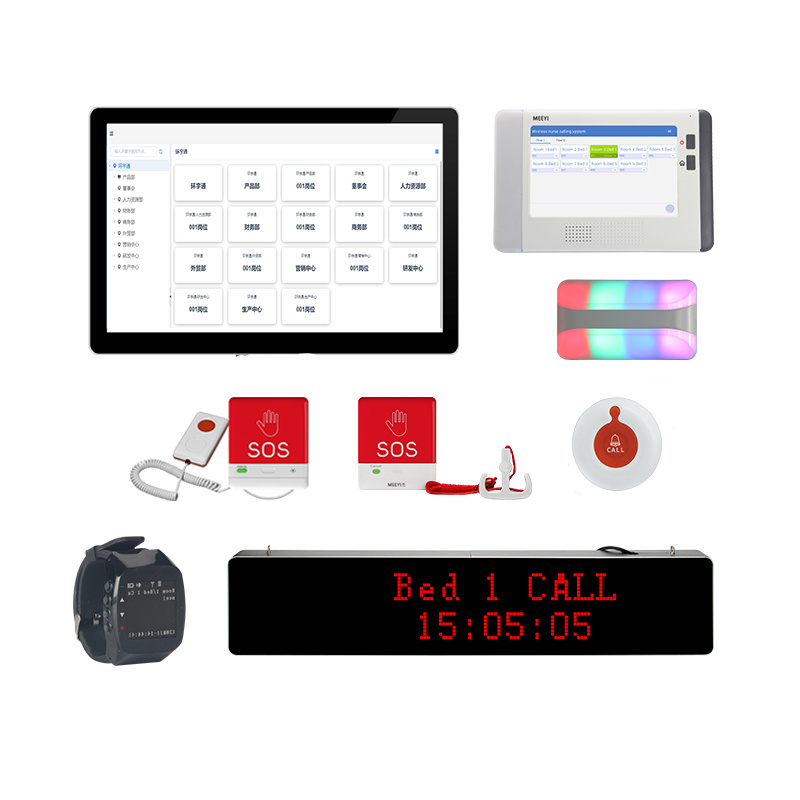

Hospital Patient Emergency Calling Bell with Software Management Wireless Nurse Call System

Different nurse station caregiver pager hosts/displays can be managed uniformly by MEEYI PC software management, including data collection, statistics, analysis. It can fast to help staff deal with paitents’ alert.

Benefits of MEEYI 's Wireless Nurse Call System :

● Pure wireless pagers for sickbed or washroom emergency call

● Smart receiver to show the calling information PC software management to manage the complete nurse call pager systems including different floors or buildings by remote.

● Wireless caregiver pagers but support LAN connection

FOR NURSE STATION

PC Software Management: W900

- ▲ Customizable call content.
- ▲ Built-in 6 chord tone reminder function.
- ▲ With multiple service status processing methods.
- ▲ Basic intelligent statistical analysis management function.
- ▲ With flexible configuration of service software application scenarios.
- ▲ Realizing third-party application platform docking through HTTP.
- ▲ With 11 countries voice broadcast, support "report what you write". With custom call timeout, warning and alarm timeout time.
- ▲ With 11 languages text message display, support "show what you write".
- ▲ With precise conditions of historical message access and message export.

Main Receiver : W921-S2

- ▲ Screen Size: 10.1 inch
- ▲ Capacitive Touch Screen
- ▲ Power Supply: DC 12V 1A
- ▲ Installation Method: Place Desktop, Wall Mount
- ▲ Dimension: 320（W）x211（H）x26.5（D）mm

▲ Main Functions:

1. Host display: menu type, can operate the host location name, date, time, calling device, etc.
2. Voice report number: When the pager calls the host, the host displays the content of the call, and the voice reports "call content"
3. Historical message access: host can query and export messages based on call time, processing status, call area, call location, and service status for precise conditions
4. Statistics management: Statistics can be used to query the service processing status, and perform simple statistical scoring

Gateway : W811-S101-JX500

- ▲ Receiving method RF433
- ▲ Receiving Distance: ＞1000 meters (visual distance)
- ▲ Launch Distance: ＞2000 meters (visual distance)
- ▲ Power Supply: 12V1A
- ▲ Dimension: 155（W）x114（H）x32（D）mm

▲ Main Functions:

1. Used to achieve unified management of system networking
2. Realize wireless signal to wired signal for long-distance transmission

FOR NURSE

Wrist Watch Receiver: W624-GT1

- ▲ Watch Standby Time: 15 Days
- ▲ Working Distance: 500m
- ▲ Device Dimension: 59（W）x45（H）x15（D）mm
- ▲ Color: Black

▲ Main Functions:

1. Support text display such as English, Japanese, Arabic numerals, punctuation marks, etc.;
2. 64 recent messages can be stored
3. It has the function of manual key-press return code response. With sound, vibration and other reminding methods

FOR CORRIDOR

Corridor Display : W601DL-G66

- ▲ LED dot matrix Display
- ▲ Power Supply: AC 100~240V 50/60Hz
- ▲ Visible Distance: ＞100 meters
- ▲ Installation Method: Wall Mount
- ▲ Dimension: 762（W）x155（H）x38（D）mm

▲ Main Functions:

1. Single side, 8 characters per line, LED monochrome display
2. Show time and custom slogan when no call
3. Show the content of the call when calling

Corridor lamp : W630-G75

- ▲ Total 8 colors (Red、green、blue、dark blue、yellow、purple、light blue、White)
- ▲ The sound level can be adjusted (large, medium, small)
- ▲ Power Supply: DC 12V 1A
- ▲ Alarm light Visible Distance: 50 meters
- ▲ Dimension: 62（W）x92（H）x50（D）mm

▲ Main Functions:

1. Configurable for up to 400 call buttons in one section
2. Configurable for up to 400 reset buttons in one section
3. Different color indicates different service area. One color can work with 400 transmitters in max.
