Quick Details
-
Voltage:
-
380V(For reference only)
-
Dimension(L*W*H):
-
2450*2250*2350(For reference only)
-
Weight (KG):
-
2500
-
Power (kW):
-
12For reference only)
-
Stem Diameter:
-
5-9mm
-
Head Diameter:
-
25-50mm
-
Total Length:
-
80-150mm
-
Valve Seat Angle:
-
45-60°
-
Processing Allowance:
-
Within 2mm(diameter)
-
Cycle Time:
-
Less than 7 seconds/piece(the whole output)
-
Control System:
-
PLC
-
Color:
-
White+Black
-
Customize:
-
OK
-
After-sales Service Provided:
-
Online Or Onsite
Quick Details
-
Year:
-
2024
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tianzhijiao
-
Voltage:
-
380V(For reference only)
-
Dimension(L*W*H):
-
2450*2250*2350(For reference only)
-
Weight (KG):
-
2500
-
Power (kW):
-
12For reference only)
-
Stem Diameter:
-
5-9mm
-
Head Diameter:
-
25-50mm
-
Total Length:
-
80-150mm
-
Valve Seat Angle:
-
45-60°
-
Processing Allowance:
-
Within 2mm(diameter)
-
Cycle Time:
-
Less than 7 seconds/piece(the whole output)
-
Control System:
-
PLC
-
Color:
-
White+Black
-
Customize:
-
OK
-
After-sales Service Provided:
-
Online Or Onsite
Products Description

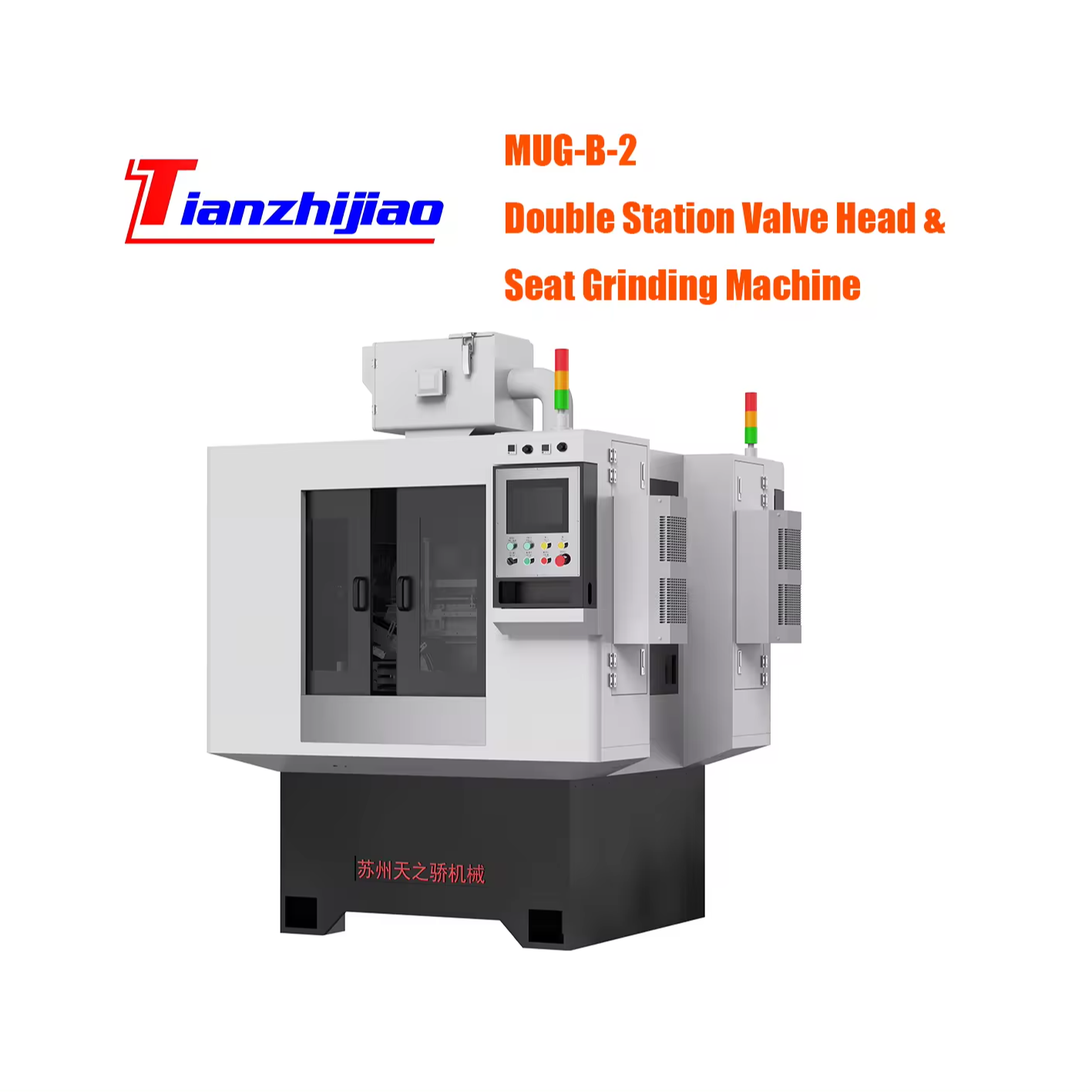

Double Station Valve Head &Seat Grinding Machine
MUG-B-2 disc cylindrical grinding machine,this machine tool is a mature and efficient special grinding machine developed and marketed in recent years,suitable for engine inlet and exhaust valve head and seat rough grinding.Two stations for simultaneous processing,equipped with two PLCS and touch screen.
Product Paramenters
|
Input
|
|
|
|
|
||||
|
Processing range
|
Stem diameter
|
5 mm to 9 mm
|
|
|
||||
|
|
Head diameter
|
25 mm to 50 mm
|
|
|
||||
|
|
Overall length
|
80 mm to 150 mm
|
|
|
||||
|
Raw material
|
21-4N、SUH:3、SUH:11、SUH:38、SUH:35、X45CrSi93
|
|
|
|
||||
|
Valve condition before machining
|
The valve rod runout 0.01mm and the head runout 0.1mm
|
|
|
|
||||
|
|
Valve seat angle:45-60°
|
|
|
|
||||
|
|
Processing allowance:within 2mm(diameter)
|
|
|
|
||||
|
Output
|
|
|
|
|
||||
|
Precision after valve machining
|
Head diameter
|
|
Within ±0.025mm
|
|
||||
|
|
Head runout
|
|
Within 0.03
|
|
||||
|
|
Seat runout
|
|
Within 0.03
|
|
||||
|
Cycle time
|
Less than 7 seconds/piece(the whole output)
|
|
|
|
||||
