Quick Details
-
Type:
-
Seed sorting machine
-
Use:
-
Removing bad seeds
-
Production Capacity (kg/h):
-
3000 - 5000
-
Sieve Size(mm):
-
2000*450
-
Power (kW):
-
6.8
-
Weight:
-
1300 KG
-
Application:
-
Cereal Grains
-
Product name:
-

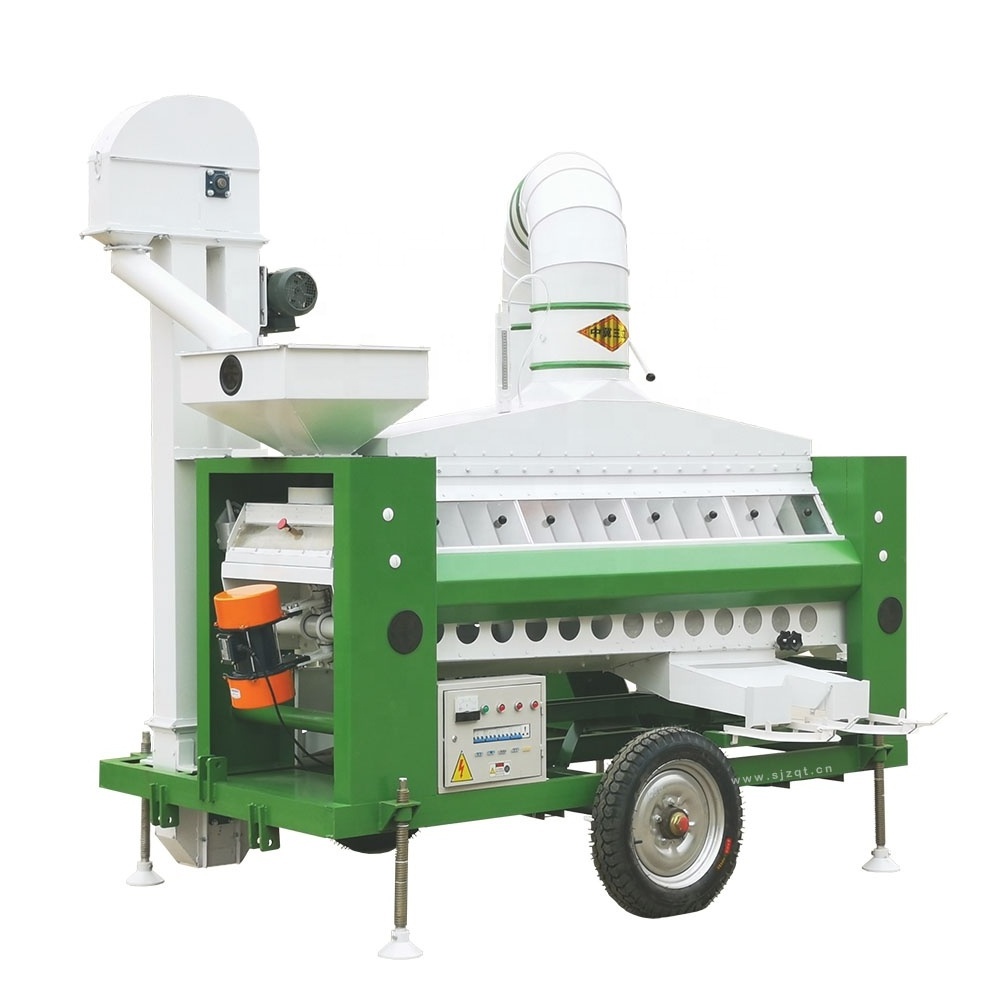

Gravity separator
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Processing Material:
-
Granular Grain Cereal Seeds Oilseeds
-
Certification:
-
ISO9001:2015
-
HS code:
-
84371090
-
MOQ:
-
1 set
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Sanli
-
Dimension(L*W*H):
-
4000*1990*2880mm
-
Type:
-
Seed sorting machine
-
Use:
-
Removing bad seeds
-
Production Capacity (kg/h):
-
3000 - 5000
-
Sieve Size(mm):
-
2000*450
-
Power (kW):
-
6.8
-
Weight:
-
1300 KG
-
Application:
-
Cereal Grains
-
Product name:
-
Gravity separator
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Processing Material:
-
Granular Grain Cereal Seeds Oilseeds
-
Certification:
-
ISO9001:2015
-
HS code:
-
84371090
-
MOQ:
-
1 set
Product Display
What's this machine can do?
It can effectively remove
impurities with light bulk density
. Like
moth eaten, mildew, pathological changes,underdeveloped, poor grain and other bad seeds.Also some straw objects.
The 5XJC Series gravity seed separator is suitable for processing various crops and all granular materials. Especially for wheat and rice seed, the effect is better.

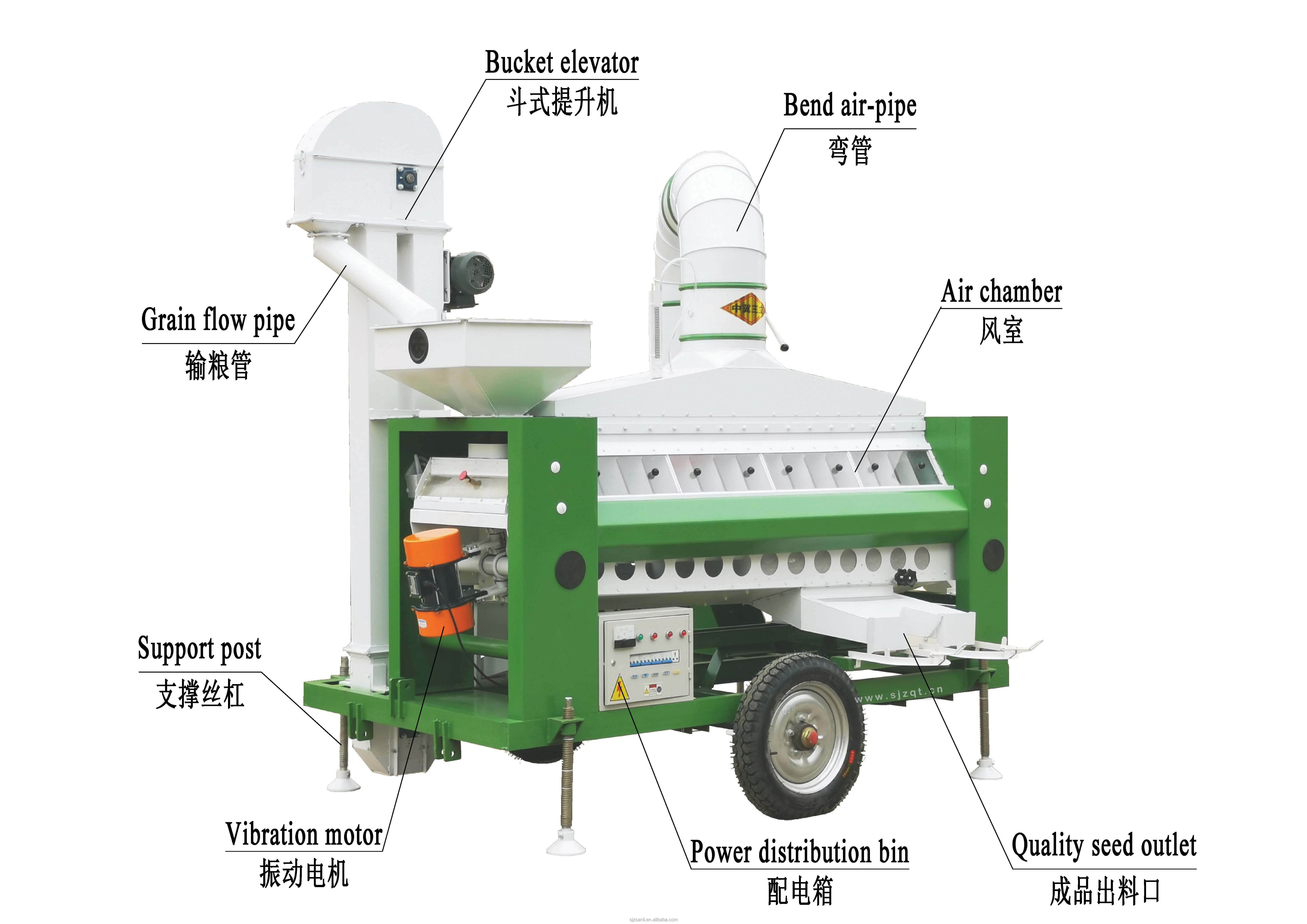

Diagrammatic sketch.
Features.
1. Superior enclosed counter-balanced drive system for smooth silent operations.
2. All steel construction for durability, easy cleaning and pollution control. Precise and efficient separations.
3. Easy screen replacement.
4. Adjustable dividers to obtain quality of grade desired.
5. Counter balanced eccentric drive.
6. It facilitates the separation of any granular material into lights and heavies.
Installation & After-sales service.
Overseas after-sales service
We have a professional after-sales installation and training team.
Video and documentation guided installation
When delivering goods, we carry detailed installation and commissioning guidance documents with the device to facilitate users to install by themselves. At the same time, we also can provide video guidance.
Product photos
Product Paramenters
|
Model
|
5XJC-3
|
5XJC-5
|
5XJC-6
|
||
|
Max-capacity
(Base on wheat seed)
|
3000 Kg/h
|
5000 Kg/h
|
6000 Kg/h
|
||
|
Overall size
|
4000×1800×2860mm
|
4000×1990×2880mm
|
4000×2150×2880mm
|
||
|
Screen size
|
2000×300mm
|
2000×450mm
|
2000×600 mm
|
||
|
Airflow
|
2664～5268 M³/h
|
4012～7419 M³/h
|
4012～7419 M³/h
|
||
|
Air pressure
|
1578～979 Pa
|
2014～1320 Pa
|
2014～1320 Pa
|
||
|
Cleaning rate
|
≥98%
|
≥98%
|
≥98%
|
||
|
Power source
|
380V / 50Hz / 3-Phase
|
380V/ 50Hz/ 3-Phase
|
|
||
|
Total Power
|
4 kW
|
6.62 kW
|
6.8 kW
|
||
|
Weight
|
1000 Kg
|
1300 Kg
|
1500 Kg
|
||
Note:
The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product.
