Quick Details
-
Item name:
-
4x4, 5x5, 6x6 Outdoor pagoda gazebo tent canopy for event
-
Type:
-
Wedding & Party Supplies, Party , Event
-
Frame:
-
65 x 65 x 2.5mm, aluminum alloy 6061/T6
-
Fabric:
-
850g/sqm double waterproof PVC fabric
-
Available Sizes:
-
3 x 3m, 4 x 4m, 5 x 5m, 6 x 6m, 8 x 8m, 10 x 10m
-
Available Color:
-
White, Blue, Green, Red, Black, Gray, Transparent
-
Feature:
-
100%waterfroof, flame retardant, UV-resistant, tear resistant
-
Flame retardant:
-
DIN4102 B1M2
-
Acessories:
-
lining, lighting, floor, windows, clear walls, glass door&wall,.
-
Lifespan of pagoda tent:
-
15-20years for frame,8-10years for walls
Quick Details
-
Brand Name:
-
WT pagoda tent
-
Place of Origin:
-
China
-
Model Number:
-
Pagoda Tent 16092301
-
Item name:
-
4x4, 5x5, 6x6 Outdoor pagoda gazebo tent canopy for event
-
Type:
-
Wedding & Party Supplies, Party , Event
-
Frame:
-
65 x 65 x 2.5mm, aluminum alloy 6061/T6
-
Fabric:
-
850g/sqm double waterproof PVC fabric
-
Available Sizes:
-
3 x 3m, 4 x 4m, 5 x 5m, 6 x 6m, 8 x 8m, 10 x 10m
-
Available Color:
-
White, Blue, Green, Red, Black, Gray, Transparent
-
Feature:
-
100%waterfroof, flame retardant, UV-resistant, tear resistant
-
Flame retardant:
-
DIN4102 B1M2
-
Acessories:
-
lining, lighting, floor, windows, clear walls, glass door&wall,.
-
Lifespan of pagoda tent:
-
15-20years for frame,8-10years for walls

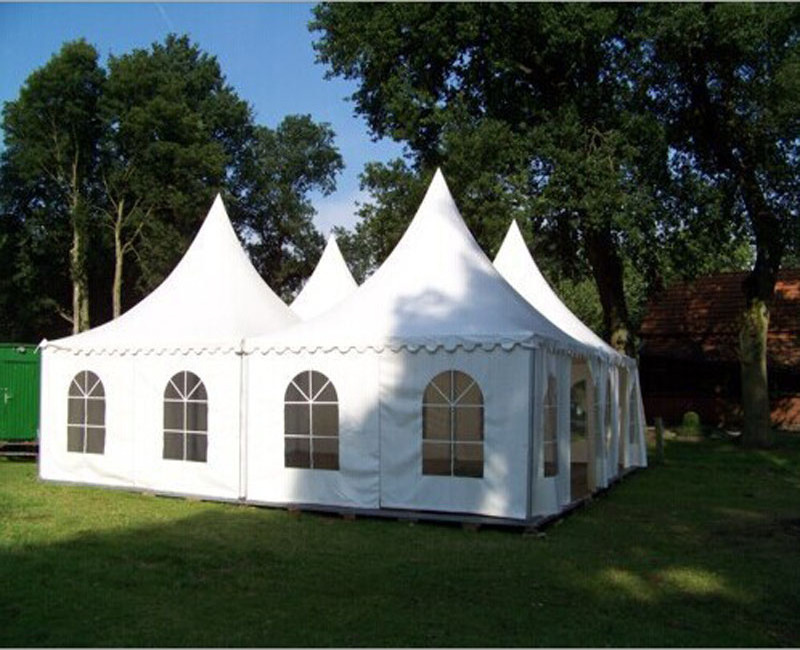

4x4, 5x5, 6x6 Outdoor pagoda gazebo tent canopy for event
4 x 4, 5 x 5, 6 x 6 Outdoor pagoda gazebo tent canopy for event
Specifications of our pagoda tent
NO pole inside. 100% use of the space
1.Frame: Aluminium 6061/T6.
2.Cover:PVC
3.Flame resistant:DIN 4102 B1,M2
4.Wind load:80-100km/h
5.Waterproof ,Anti-fire
6.Germany TUV, SGS, M2
Available Sizes of WT Pagoda Tent Series:
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| PAG | 3m/9.8' | 3m/9.8' | 2.5m | 4.3m | 65x65x2.5mm(4-channel) |
| PAG | 4m/13' | 4m/13' | 2.5m | 4.8m | 65x65x2.5mm(4-channel) |
| PAG | 5m/16.4' | 5m/16.4' | 2.5m | 5.43m | 65x65x2.5mm(4-channel) |
| PAG | 6m/19.7' | 6m/19.7' | 2.5m | 5.92m | 65x65x2.5mm(4-channel) |
| PAG | 8m/26.2' | 8m/26.2' | 2.6m | 5.36m | 120x68x3mm(4-channel) |
| PAG | 10m/32.8' | 10m/32.8' | 2.6m | 6.38m | 120x68x3mm(4-channel) |
| Pagoda tent can be used as a single unit or combined by a rain gutter to make a larger space or a special structure style. Customized size or shape is available. | |||||
Frame material of pagoda tent
1) Framework material: hard pressed extruded aluminum alloy (6061/T6).
2)Sizes of cross section of main profile: 65*65*2.5mm, 128 *68*3mm, 203* 112*4mm
3)Max wind speed:80-120km/Hour
4)The frame is strong,durable,light in weight, not easy to rust and distort
5) Eave connection:hot-dip galvanised steel insert
Cover material of
pagoda tent
1) 100%high tenacity polyester textiles with double side PVC coating cover.
2) Waterproof, anti-UV radiation, flame retardant according to DIN 4201,B1/M2,NFPA701
3) Weight for roof cover:850g/square meter(opaque PVC)
4) Weight for side wall cover,triangle cover and gable cover :650G/square meter ( transparent PVC )
Accessories of pagoda tent
- Covers: colourful cover(white, red, blue, green, black), transparent cover
- Walls: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall
- Windows: clear PVC windows, mesh window, glass window for glass wall
- Doors: soft PVC rolling door, double-swings glass door, single-wing glass door, hard PVC door, aluminium door, rolling shutter(automatic or manual)
- Wooden flooring system: VIP cassette flooring, simple cassette flooring
- Rain gutters: inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: drapers, curtain,table, chair, lighting, AC, carpet, installation tools
Optional fixing methods of pagoda tent
- Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.
- Inflatable screw: For hard surface like, cement, stone, or prefab concrete cubic, etc.
- Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc
Application
Used for party, outdoor exhibition, outdoor wedding, trade fair, celebration, sports event, military solution, temporary warehouse and workshop
Our tents have been supplied to 2008 Beijing Olympic Games, 2014 Nanjing YOG, 2010 Shanghai World Expo, Shanghai Fashion Shows, and many other international events.
==============Our Certificates=========
1.TUV Rheinland certification;
2. ISO9001 quality system certification;
3. the international tent Industry Association;
4. 2008 Beijing Olympic Games official partner of Honor;
5.France M2 class fire certificate, German DIN4102 B1 level fire certificate, California in the United B701-fire certificate;
6. China Exhibition Industry Association;
7.China's top ten best-selling brands tent industry;
8.China Shou contract re-credit enterprise
3 x 3, 4 x 4, 5 x 5, 6 x 6 Outdoor pagoda gazebo tent canopy for event
- aluminum frame packed in membrane film
- hardware packed in wooden box
- roof and sidewall in professional PVC carry bag
