Quick Details
-
Engine:
-
Briggs&Stratton
-
Power:
-
23HP
-
Fuel:
-
Gasoline
-
Fuel tank:
-
22L
-
load capacity:
-
260kg
-
speed:
-
8km/h
-
ground clearance:
-
160mm
-
weight:
-
840kg
-
Certification:
-
CE GOST
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
-
Product name:
-
small garden tractor loader backhoe
-
Engine:
-
Briggs&Stratton
-
Power:
-
23HP
-
Fuel:
-
Gasoline
-
Fuel tank:
-
22L
-
load capacity:
-
260kg
-
speed:
-
8km/h
-
ground clearance:
-
160mm
-
weight:
-
840kg
-
Certification:
-
CE GOST

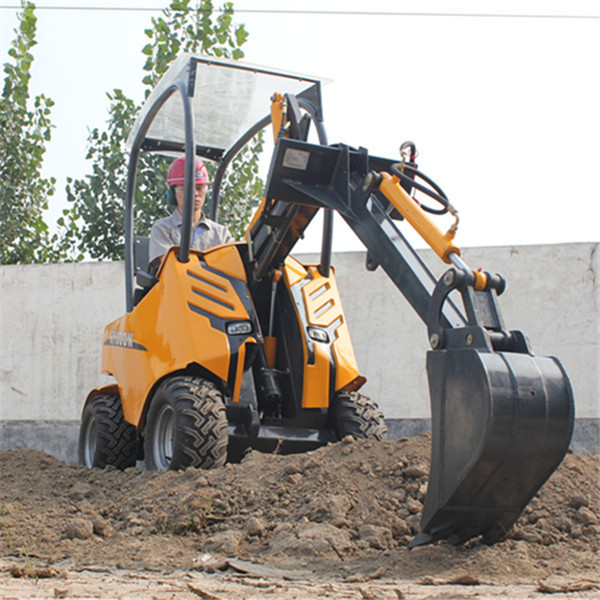

small garden tractor loader backhoe
Briggs&Strattong gasoline engine 23HP
quick hithc plate,multi-using
970mm width can enter into narrow space
ride on operate,comfortable
CE GOST
many loader attachment can be used together,such as digger,auger,sweeper,snow blower,lawn mower,tiller,trencher,breaker
The China small garden tractor loader backhoe is a multifunction compact loader,can enter into narrow space for different working.
It have quick hitch plate,can use with the loader attachment,such as bucket, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper, auger,lawn mower, snow blower, stump grinder, tree spade, trencher, dumping hopper, ripper, tillers, grapple , tilt, roller, snow blade.
The China small garden tractor loader backhoe with different loader attachment can be used on Land sorting, Garden, Snow removal, Mining, Landscaping, Construction, Dairy industry, Farm, Livestock farm ,Waste(animal waste, municipal solid waste, life garbage) removal,ditching, truck loading ,tree planting and so on.
Basic Data for the small garden tractor loader backhoe
| Engine Brand | Briggs&Stratton |
| Fuel | Gasoline |
| Rated Power | 17.21Kw (23HP) |
| Fuel Volume | 22L |
| Hydraulic oil volume | 21L |
| Operate Weight | 840kg |
| Load capacity | 260kg |
| Bucket capacity | 0.15cbm |
| Max lifting force | 460kg |
| Speed | 0-8km/h |
| Min Turning Radius | 2320mm |
| Tyre | 21*8.00-10TR |
Dimensions for the small garden tractor loader backhoe
| Max Pin Height (B) | 1767mm |
| Max Dumpe Height (C) | 1314mm |
| Dump distance at highest point (D) | 443mm |
| Total Height (H) | 2020mm |
| Ground Clearance (F) | 200mm |
| Wheelbase (G) | 1207mm |
| Length without bucket (J) | 1870mm |
| Total Width (W) | 970mm |
| Bucket Width (K) | 1150mm |
| Total Length(with bucket) (L) | 2255mm |
| Departure Angle | 40degree |
| Bucket dump angle | 37degree |
| Bucket Collection angle | 28degree |
sample small garden tractor loader backhoe will be better delivery by LCL container,packing by steel pallet with plywood cover
quantity small garden tractor loader backhoe will be better delivery by FLC container,no packing,loaded into container directly and fastened well.
Sample order available
Customize available
Quickly respond about after-sale service
