Quick Details
-
Power:
-
2.2-3kw
-
Min. Lifting Height:
-
2470mm
-
Table Size:
-
Customized
-
Overall Dimensions:
-
Customized
-
Weight:
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Industrial hydraulic vertical guide rail cargo lift freight elevator
-
Type:
-
Hydraulic cargo lift
-
Material:
-
High Strength Manganese Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation
-
OEM:
-
Available
-
Platform:
-
Anti-skid
-
Installation:
-
Pit or on ground
-
Application:
-
Warehouse cargo lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yuntian
-
Power:
-
2.2-3kw
-
Min. Lifting Height:
-
2470mm
-
Table Size:
-
Customized
-
Overall Dimensions:
-
Customized
-
Weight:
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Industrial hydraulic vertical guide rail cargo lift freight elevator
-
Type:
-
Hydraulic cargo lift
-
Material:
-
High Strength Manganese Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Feature:
-
Easy Operation
-
OEM:
-
Available
-
Platform:
-
Anti-skid
-
Installation:
-
Pit or on ground
-
Application:
-
Warehouse cargo lift

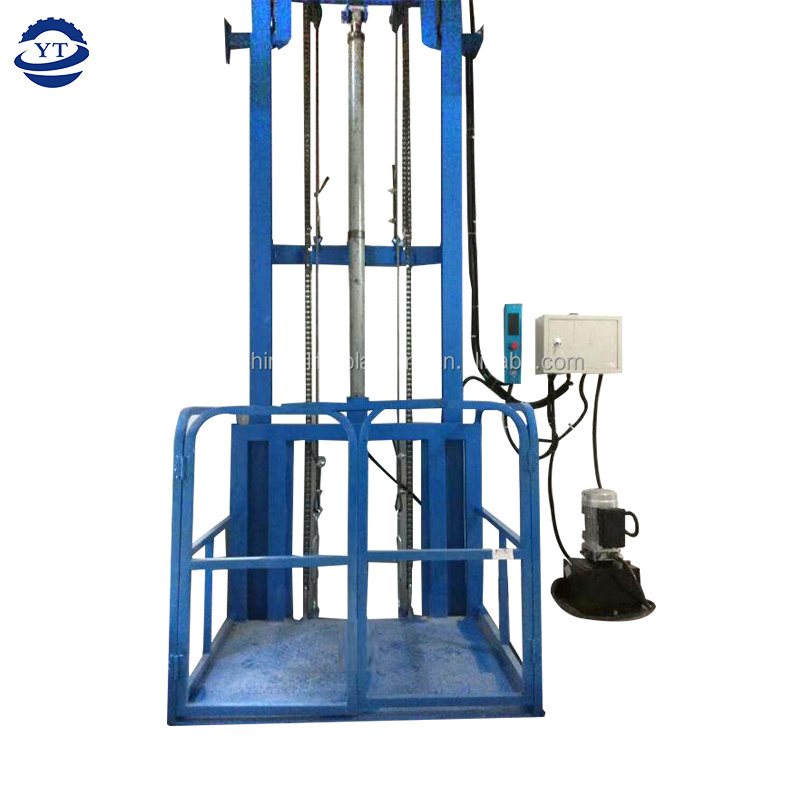

High quality small lift elevator warehouse freight elevator goods lift platform for sale
It is droved by the electric and hydraulic system, the lift platform is lifted up and drops down along the truck; it is installed
in the pit or the ground floor to convey the goods from one working level to another.The control panels are available at the
designated floors and one the lift platforms.
hydraulic cargo lift can save a lot of labor costs and time, and provide fast, efficient, convenient and safe balconies, basements and access to any floors in multi-storey buildings. It can be installed indoors and outdoors for lifting goods.
in the pit or the ground floor to convey the goods from one working level to another.The control panels are available at the
designated floors and one the lift platforms.
hydraulic cargo lift can save a lot of labor costs and time, and provide fast, efficient, convenient and safe balconies, basements and access to any floors in multi-storey buildings. It can be installed indoors and outdoors for lifting goods.
Warehouse Cargo Lift Advantage:
1. The hydraulic system is equipped with anti-falling.
2. Interlocking the upper and lower doors;
3. Each floor and lifting platform can be set with operation buttons to realize multi-point control;
4. Sturdy structure, heavy bearing, stable hoisting, easy installation, simple maintenance...
5. With CE certificate, can be customized
1. The hydraulic system is equipped with anti-falling.
2. Interlocking the upper and lower doors;
3. Each floor and lifting platform can be set with operation buttons to realize multi-point control;
4. Sturdy structure, heavy bearing, stable hoisting, easy installation, simple maintenance...
5. With CE certificate, can be customized
|
Model
|
Load Capacity(Kg)
|
Platform Size(mm)
|
Lifting Height(mm)
|
|
SJG0.5-3.0
|
500
|
1500*1500
|
3000
|
|
SJG1.0-3.5
|
1000
|
1500*2000
|
3500
|
|
SJG2.0-5.0
|
2000
|
2000*2000
|
5000
|
|
SJG3.0-5.0
|
3000
|
2500*3000
|
5000
|
|
SJG5.0-10.0
|
5000
|
3000*5000
|
10000
|
|
SJG10-8.0
|
10000
|
3000*4000
|
8000
|
|
SJG20-5.0
|
20000
|
2500*5000
|
5000
|
|
SJG30-11.0
|
30000
|
3000*3500
|
11000
|
This cargo lift is customized. Please advise the loading capacity, platform size and lifting height,we will design accordingly.
Customized:Loading capacity:500-20000kg,
platform size:1-20㎡,
Lifting height:2-20m
Customized:Loading capacity:500-20000kg,
platform size:1-20㎡,
Lifting height:2-20m
New Design 1000kg 2000kg 3000kg 5000kg Electric Hydraulic Goods Lift Freight Elevator Warehouse Cargo Lift
CE Approved cheap hydraulic cargo lift warehouse freight elevator goods automotive lift indoor outdoor
Cargo lift warehouse platform hydraulic goods freight cargo lift elevator
Hydraulic warehouse goods lift advantage:
1. Chain,It is the double safe device for cargo lift system, we make chain and steel rope to protect the platform not falling down and unbalance loading.
2. Digital display,It is hierarchical controlling,can be called at each floor, clear and make working efficiency.
3. Hydraulic cylinder,we use high-quality hydraulic cylinder,it is heavy-duty,smooth working performance and with durable cylinder seals no leaks.
4. Platform doors, platform with 1.1m height,protecting wire net door, manual centre opening
5. Guide rails,we use heavy-duty H beam steel as guide rail, make our cargo lift good stability and safety ,which is made of high quality carbon steel.
6. Pump station system, we use China top brand lisheng pump station,which is equip with emergency decline calve，spillover valve, explosion-proof valves
2. Digital display,It is hierarchical controlling,can be called at each floor, clear and make working efficiency.
3. Hydraulic cylinder,we use high-quality hydraulic cylinder,it is heavy-duty,smooth working performance and with durable cylinder seals no leaks.
4. Platform doors, platform with 1.1m height,protecting wire net door, manual centre opening
5. Guide rails,we use heavy-duty H beam steel as guide rail, make our cargo lift good stability and safety ,which is made of high quality carbon steel.
6. Pump station system, we use China top brand lisheng pump station,which is equip with emergency decline calve，spillover valve, explosion-proof valves
Hydraulic cargo lift platform Package:
1.Cargo lift elevator packed in plywood package
2. LCL in container
3.Nude package in a container.
2. LCL in container
3.Nude package in a container.
Q1. Can I have a sample model?
A: Our auto scissor lift platform is customized based on your detail request, you can buy one for your testing at first. MOQ 1 set is available.
Q2. What about the delivery time?
A: It usually takes about 10 working days after we receive the deposit.
Q3. What kind of payment do you support?
A: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.
Q4. How to proceed an order for the lift?
A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better. Secondly, we send
you our suggestions and quote according to the practical situation. Thirdly, you confirm the quotation along with your request details and places deposit. Then we arrange the production. Once we finish the production, we will send photos for your reference.
Q5. How to transfer the lift machine?
A: It is usually shipped by sea. Plywood package and LCL in a 20' container. The ship has to be booked one-week before, and shipping time is usually longer, please be patient.
Q6. Is it OK to print my LOGO on the lift?
A:Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q7: How to deal with the broken?
A: Firstly, our products are produced in strict quality, we must test it before we sending out each machine. Secondly, we will buy an Insurance for any CIF product to make sure the lift safety in shipping. If any parts broken, you can tell us, we have one year warranty and free send you a new spare parts and we supply technical supporting all the times.
A: Our auto scissor lift platform is customized based on your detail request, you can buy one for your testing at first. MOQ 1 set is available.
Q2. What about the delivery time?
A: It usually takes about 10 working days after we receive the deposit.
Q3. What kind of payment do you support?
A: T/T, L/C, West Union, Alibaba Trade Assurance. T/T is usually.
Q4. How to proceed an order for the lift?
A: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better. Secondly, we send
you our suggestions and quote according to the practical situation. Thirdly, you confirm the quotation along with your request details and places deposit. Then we arrange the production. Once we finish the production, we will send photos for your reference.
Q5. How to transfer the lift machine?
A: It is usually shipped by sea. Plywood package and LCL in a 20' container. The ship has to be booked one-week before, and shipping time is usually longer, please be patient.
Q6. Is it OK to print my LOGO on the lift?
A:Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q7: How to deal with the broken?
A: Firstly, our products are produced in strict quality, we must test it before we sending out each machine. Secondly, we will buy an Insurance for any CIF product to make sure the lift safety in shipping. If any parts broken, you can tell us, we have one year warranty and free send you a new spare parts and we supply technical supporting all the times.
