- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Renke
-
Model Number:
-
RS-TRREC-N01-1
-
Product name:
-
soil testing kit sensors soil moisture datalogger soil analyzer
-
Power supply:
-
Battery powered (5000mAh lithium battery)
-
Operating Voltage:
-
DC 3.7V
-
data storage:
-
1 million data
-
Charging time:
-
≤8h
-
working environment:
-
Temperature -10℃-50℃; humidity<95%RH no condensation
-
letter of agreement:
-
Modbus-RTU
-
Display:
-
2.8 inch LCD display
-
Size:
-
209*100*36 mm
-
Weight:
-
500g
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Renke
-
Model Number:
-
RS-TRREC-N01-1
-
Product name:
-
soil testing kit sensors soil moisture datalogger soil analyzer
-
Power supply:
-
Battery powered (5000mAh lithium battery)
-
Operating Voltage:
-
DC 3.7V
-
data storage:
-
1 million data
-
Charging time:
-
≤8h
-
working environment:
-
Temperature -10℃-50℃; humidity<95%RH no condensation
-
letter of agreement:
-
Modbus-RTU
-
Display:
-
2.8 inch LCD display
-
Size:
-
209*100*36 mm
-
Weight:
-
500g
Handheld smart agriculture sensors soil moisture datalogger soil analyzer
Product Description
RS-TRREC-N01-1
soil analyzer

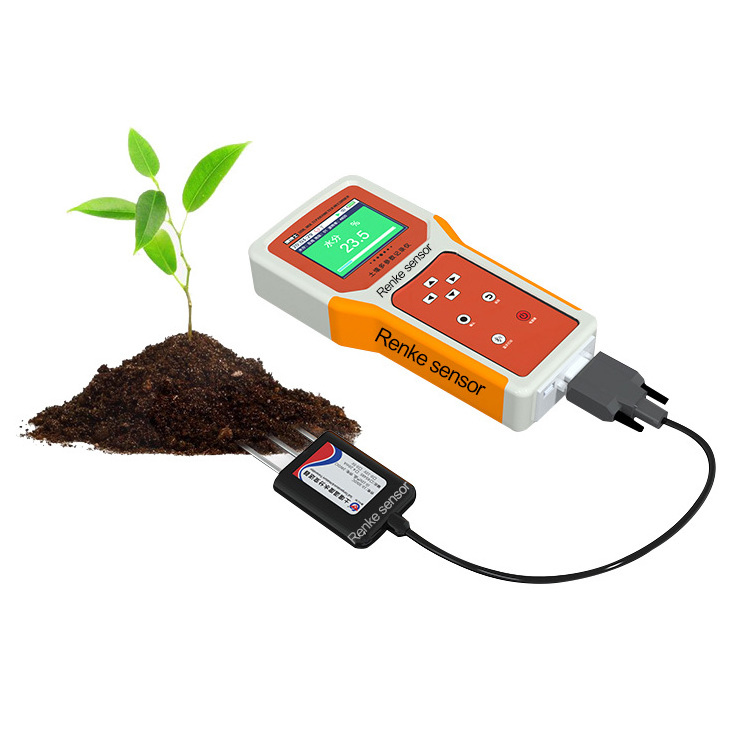

adopts the latest digital integrated circuit technology and international testing technology to design a brand new intelligent handheld tester. It uses a full-color LCD display. At the same time, the recorder is integrated Storage, recording, and analysis, and it can be flexibly connected to our soil 4 in 1 sensors, soil ph sensors, soil temperature humidity and EC sensors.
One soil analyzer can be connected to four soil sensors simultaneously.
|
Power supply
soil analyzer
|
Battery powered (5000mAh lithium battery)
|
|
Display
soil analyzer
|
2.8 inch LCD display
soil analyzer
|
|
data storage
soil analyzer
|
1 million data
soil analyzer
|
|
Charging time
soil analyzer
|
≤8h
soil analyzer
|
|
Communication mode
|
USB(read,see DB9 interface for details information)
|
|
Accessible equipment
|
1-4 ModBus device combination
soil analyzer
|
|
letter of agreement
|
Modbus-RTU protocol
soil analyzer
|
|
Operating Voltage
|
DC 3.7V
soil analyzer
|
|
Standby time
soil analyzer
|
More than 8h continuous
soil analyzer
|
|
Size
soil analyzer
|
209*100*36 mm
soil analyzer
|
|
Weight
soil analyzer
|
500g
soil analyzer soil analyzer
|
Details Images
Soil Analyzer FEATURES:
soil analyzer soil analyzer
1. The measurement results can be displayed directly, which is simple and convenient, with low measurement cost and fast measurement speed.
2. A variety of recording methods are optional.
3. Large-size color display screen, large-capacity storage.
4. One-key export of data, convenient and quick.
5. The probe plug-in design ensures accurate measurement and reliable performance.
|
DC power supply
|
DC4.5-30V
|
|
Conductivity parameter
|
Range: 0-20000us/cm
Resolution: 10us/cm
Accuracy: ±3% in the range of 0-10000 us/cm; ±5% in the range of 10000-20000 us/cm
|
|
Soil moisture parameter
|
Range: 0-100%
Resolution: 0.1%
Accuracy: ±2% within 0-50%, @ (brown soil, 30%, 25℃) ±3% within 50-100%, @ (brown soil, 60%, 25℃)
|
|
Soil temperature parameter
|
Range: -40~80°C, resolution: 0.1°C, accuracy: ±0.5°C(25°C)
|
|
Conductivity temperature compensation
|
Built-in temperature compensation sensor, compensation range 0-50 °C
|
|
Protection level
|
IP68
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
Output signal
|
RS485 (Modbus protocol)
|
|
Power supply
|
DC 5-30V
|
|
Measuring Range
|
3—9 PH
|
|
Resolution
|
0.1
|
|
Response time
|
≤10S
|
|
Long-term stability
|
≤5%/year
|
|
Probe material
|
Anti-corrosion special electrode
|
|
Sealing material
|
Black flame retardant epoxy resin
|
|
Output signal
|
RS485(Modbus protocol)
|
Packing&Shipping
Related Products
Application
RS-TRREC-N01-1
is widely used in the detection of soil pH, dry farming and water-saving irrigation, precision agriculture, forestry, geological prospecting, plant cultivation, water conservancy, environmental protection and other fields, as well as the measurement of various particulate matter pH.
