Quick Details
-
Brand Name:
-
VACORDA
-
Model Number:
-
UHC
-
Material:
-
Stainless steel, 304,1Cr18Ni9Ti etc.
-
Mode:
-
Bypass level gauge
-
Center To Center Distance:
-
150mm-6000mm
-
Pressure:
-
PN6~PN430
-
Density:
-
>0.45g/cm3
-
Temperature:
-
-190 - +425℃
-
Connection:
-
DN20~DN80/RF/14,DN80~DN250/RF/14
-
Output signal:
-
4-20mADC, Hart
-
Protection class:
-
IP65
-
Certification:
-
ISO9001/CE/ RoHS/FCC
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
12 months
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
VACORDA
-
Model Number:
-
UHC
-
Material:
-
Stainless steel, 304,1Cr18Ni9Ti etc.
-
Mode:
-
Bypass level gauge
-
Center To Center Distance:
-
150mm-6000mm
-
Pressure:
-
PN6~PN430
-
Density:
-
>0.45g/cm3
-
Temperature:
-
-190 - +425℃
-
Connection:
-
DN20~DN80/RF/14,DN80~DN250/RF/14
-
Output signal:
-
4-20mADC, Hart
-
Protection class:
-
IP65
-
Certification:
-
ISO9001/CE/ RoHS/FCC

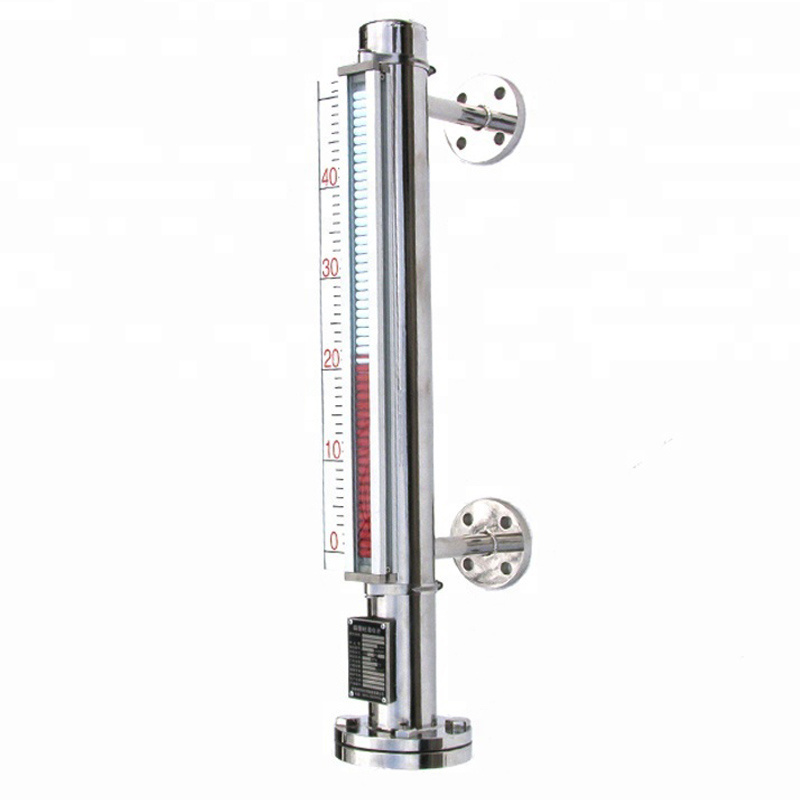

Hot Selling Meter Measuring Transmitter Water Tank Level Gauge Magnetic Float Water Level Sensor
Standard cavity magnetic flap liquid gauge also called magnetic column level gauge, magnetic frame level gauge, magnetic float level gauge , can be in high temperature and high pressure, high viscosity and strong corrosion conditions, safe and reliable to measure the liquid level, degree, display striking, wide measuring range. This series of products are widely used in electric power, petroleum, chemical industry, metallurgy, environmental protection, medicine, food and other industries in the process of liquid level measurement and control.Magnetic level gauge is divided into top mounted magnetic float level gauge and side mounted magnetic float level gauge (also called float level gauge and magnetic flap level gauge) . According to the installation position is different, the level gauge to provide side, top, top side show type, etc. According to different working medium, the provide 304/316 l stainless steel, stainless steel lined with ptfe, ABS, PP - R, UPVC material, such as ABS, PP - R, UPVC, stainless steel lining ptfe material suitable for acid, alkali and other corrosive medium. In addition to the basic, and high temperature and high pressure, corrosion, clamp cover model, frost prevention type, electric heating type, electronic double color type, and other forms to choose from.
Product installation
Product Parameters
|
(1) C enter-center distance: |
150~6000mm |
|
(2) M edium density: |
More than 0.45g/cm3 |
|
(3) N ominal pressure: |
PN6~PN320 (x 0.1MPa) |
|
(4) M aterial : |
SS304, 316L, PP, PTFE, or customized |
|
(5) O perating temperature: |
-190 ~ +425 °C |
|
(6) P rocess connection: |
|
|
(7) Indicator types: |
|
|
A: Al &ABS flap cylinder |
B: Al flap plate |
|
C: PVC ABS flap cylinder |
D: PP&ABS flap cylinder |
|
E: AL &LED |
F: PP&LED |
|
(8) Structure of top chamber: |
1.Welding cover 2.welding cover with M14*1.5 plug screw 3.flange 4.flange with M14*1.5 plug screw 5.welding cover with DN20 flange 6.flange with DN20 flange 7.welding cover with air valve 8.flange with air valve |
|
(9) Structure of bottom chamber: |
1.flange cover 2.flange with drain plug screw 3.flange with DN20 welding tube 4.with DN20 flange 5.with needle/ball valve |
|
(10) P rotection class: |
IP65 |
|
Application: W idely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc., s uitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity. |
|
|
Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam specialized type etc, they have some differences in technical parameter. Different pressure has different flange specification. |
|
