Quick Details
-
Model Number:
-
EWR400
-
Weight:
-
40kg/roll
-
Width:
-
1000mm
-
Material:
-
E Glass Fiber Roving
-
usage:
-
feature
-
Color:
-
Grey
-
Packing:
-
Carton Pallet
-
Glass type:
-
E Glass Fiberglass Fabric
-
MOQ:
-
1 ton
-
Sample:
-
Freely
-
Good Features:
-
Excellent Mechanical Properties
-
Origin:
-
Zhejiang
-
Tensile Intensity(N/50mm Warp):
-
600~2700
Quick Details
-
Application:
-
Wall/Roof covering Cloth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jushi
-
Model Number:
-
EWR400
-
Weight:
-
40kg/roll
-
Width:
-
1000mm
-
Material:
-
E Glass Fiber Roving
-
usage:
-
feature
-
Color:
-
Grey
-
Packing:
-
Carton Pallet
-
Glass type:
-
E Glass Fiberglass Fabric
-
MOQ:
-
1 ton
-
Sample:
-
Freely
-
Good Features:
-
Excellent Mechanical Properties
-
Origin:
-
Zhejiang
-
Tensile Intensity(N/50mm Warp):
-
600~2700

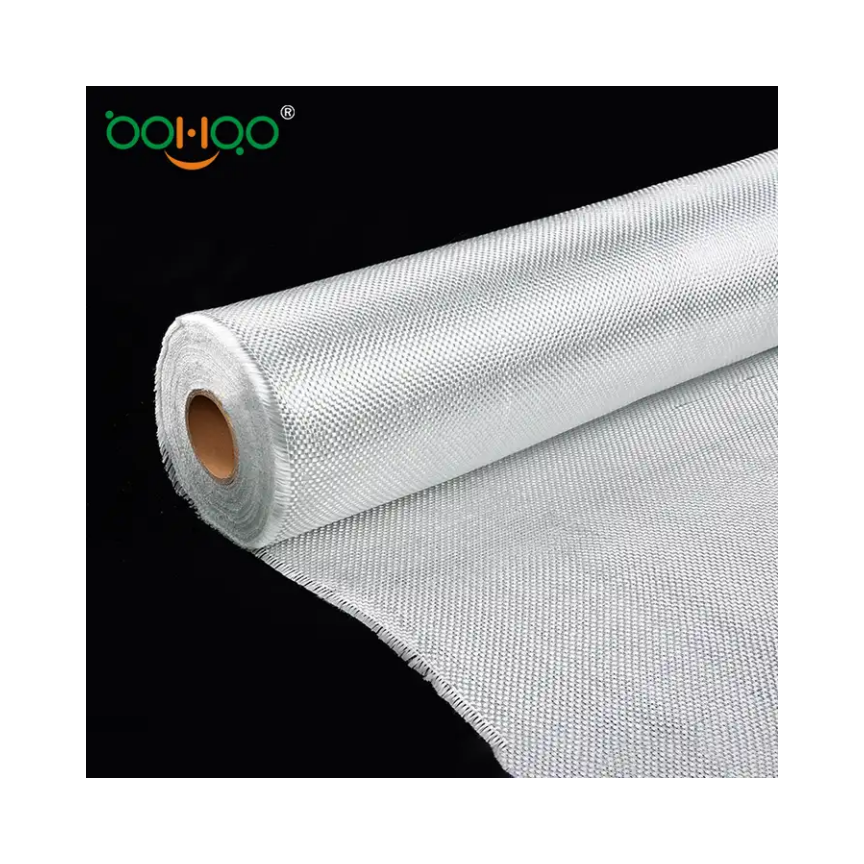

Jushi brand fiberglass material woven roving E-glass fabric fiberglass cloth for glassfiber boat molds
Fiberglass woven roving is made of direct rovings which is one kind of flaky bidirection reinforced fabric.It is suitable for all kinds of resins reinforce ,such as Unsaturated polyester resin,Vinyl,Epoxy,Phenolic resin.It's a high properties reinforce material, variously use for hand lay-up process and mechanical molding, such as boats,vessel,aeroplane,auto parts,furniture,athletic facility and other various application area.
Product parameter
|
Model |
Yarn |
Nominal linear density,Tex |
Size code of yarn |
Density (piece/10cm) |
Yarn consumption |
Central value of area weight |
|
EWR400 |
warp |
600 |
386 |
32 |
50% |
400±5% |
|
EWR400 |
weft |
600 |
386 |
32 |
50% |
400±5% |
|
EWR600 |
warp |
1200 |
386 |
26 |
52% |
600±5% |
|
EWR600 |
weft |
1200 |
386 |
24 |
48% |
600±5% |
|
EWR800 |
warp |
2400 |
386 |
18 |
54.5% |
792±5% |
|
EWR800 |
weft |
2400 |
386 |
15 |
45.85% |
792±5% |
|
Inspection item |
Inspection method |
EWR400E-100 |
EWR600E-100 |
EWR800E-100 |
|
Area weight |
GB/T 9914.3-2013 |
365-403 |
570-630 |
758-832 |
|
Moisture content |
GB/T 9914.1-2013 |
≤0.15 |
≤0.15 |
≤0.15 |
|
Warp breaking strength |
GB/T 7689.5-2013 |
≥2400 |
≥3900 |
≥5400 |
|
Weft breaking strength |
GB/T 7689.5-2013 |
≥2400 |
≥3600 |
≥4800 |
|
Warp yarn density(piece/10cm) |
GB/T 7689.5-2013 |
3.0-3.4 |
2.4-2.8 |
1.6-2.0 |
|
Weft yarn density(piece/10cm) |
GB/T 7689.5-2013 |
3.0-3.4 |
2.4-2.8 |
1.3-1.7 |
Warp and weft yarn are parallel arrangement and flat,even tension
Large density of fiber arrangement,difficult deformation,easy for operation
Good film ,fast and complete resin wet-out ,improve productivity
Product with high mechanical strength
