Quick Details
-
Dimension(L*W*H):
-
210*88*73cm
-
Weight:
-
180kg
-
Warranty:
-
2 Years
-
Application:
-
Potato Harvester
-
Product name:
-
carrot potato harvesting machine /used mini potato harvester
-
Function:
-
Potato Harvester
-
Color:
-
According to customers' need
-
Model:
-
MG-PH-1
-
Item:
-
Potato Harvester
-
usage:
-
Potato Harvester
-
Work Depth:
-
22--35cm
-
Worh Width:
-
65-80cm
-
Shaft Speed:
-
560/1250rpm
-
Name:
-
carrot potato harvesting machine /used mini potato harvester
Quick Details
-
Model Number:
-
MG-PH-1
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MG
-
Dimension(L*W*H):
-
210*88*73cm
-
Weight:
-
180kg
-
Warranty:
-
2 Years
-
Application:
-
Potato Harvester
-
Product name:
-
carrot potato harvesting machine /used mini potato harvester
-
Function:
-
Potato Harvester
-
Color:
-
According to customers' need
-
Model:
-
MG-PH-1
-
Item:
-
Potato Harvester
-
usage:
-
Potato Harvester
-
Work Depth:
-
22--35cm
-
Worh Width:
-
65-80cm
-
Shaft Speed:
-
560/1250rpm
-
Name:
-
carrot potato harvesting machine /used mini potato harvester
sweet potato harvest /carrot potato harvesting machine /used mini potato harvester

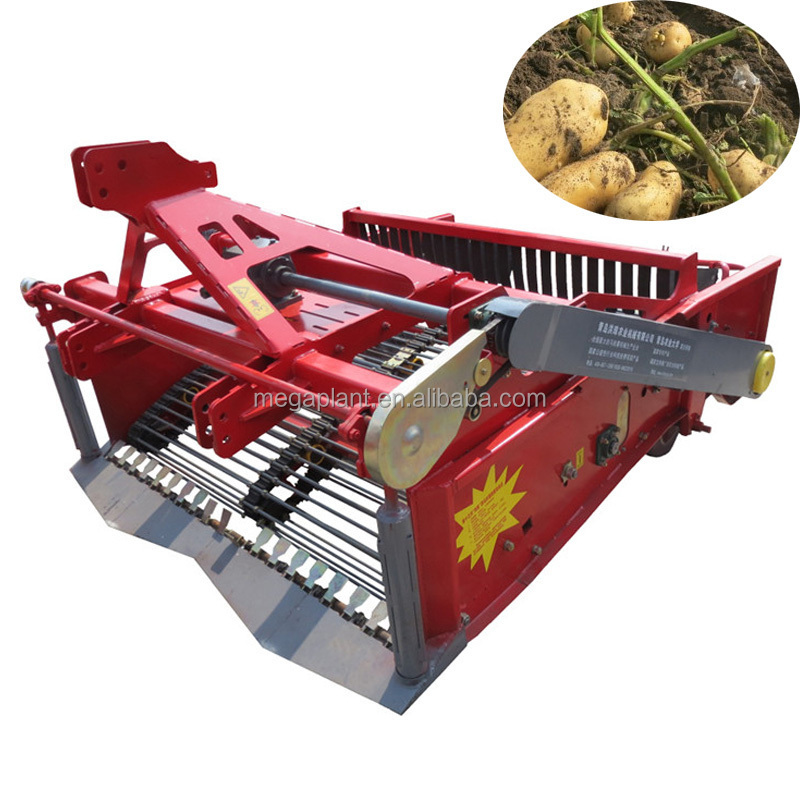

Machine introduction of sweet potato harvester
This series potato harvester not only used for potato and also for sweet potato, garlic, onion and other root crops.
This machine is composed by seeding-cut equipment, ground wheel, digging blade, conveying chain, sorting screen etc. So it could finish from seeding cutting to sorting in one time. And also it is designed by intermediate transmission or left-side transmission, so this machine could be driven by different PTO types tractors.
Features of sweet potato harvester :
1. excellent performance, good appearance, best quality
2. high-working efficiency, lower breakage rate
3. light & quick running without vibration, no jamming
4. simple structure, has a long useful life
Specification parameters of sweet Potato Harvester:
|
Model |
MG-PH-1 |
MG-PH -2 |
MG-PH -3 |
|
Row |
Single |
Double |
Double, Self-load |
|
Row Space (cm) |
55--80 |
55--80 |
55--80 |
|
Efficiency (ha/h |
0.2-0.3 |
0.3-0.5 |
0.5-0.9 |
|
Total Weight (kg) |
180 |
420 |
960 |
|
Power (hp) |
22--35 |
35--50 |
50--80 |
|
Work Depth (cm) |
25-35 |
25-35 |
25-35 |
|
Worh Width (cm) |
65-80 |
130-165 |
165-175 |
|
Shaft Speed (rpm) |
560/1250 |
560 |
560 |
|
Absorptivity (%) |
≥95 |
≥95 |
≥95 |
|
Outside Dimension (cm) |
240*90*90 |
280*220*100 |
330*390*310 |
|
Packing Dimension (cm) |
210*88*73 |
250*190*80 |
300*225*120 |
