tires refurbished vulcanization cans /tyre vulcanizing machine equipment

tires refurbished vulcanization cans /tyre vulcanizing machine equipment

technical detailed instructions

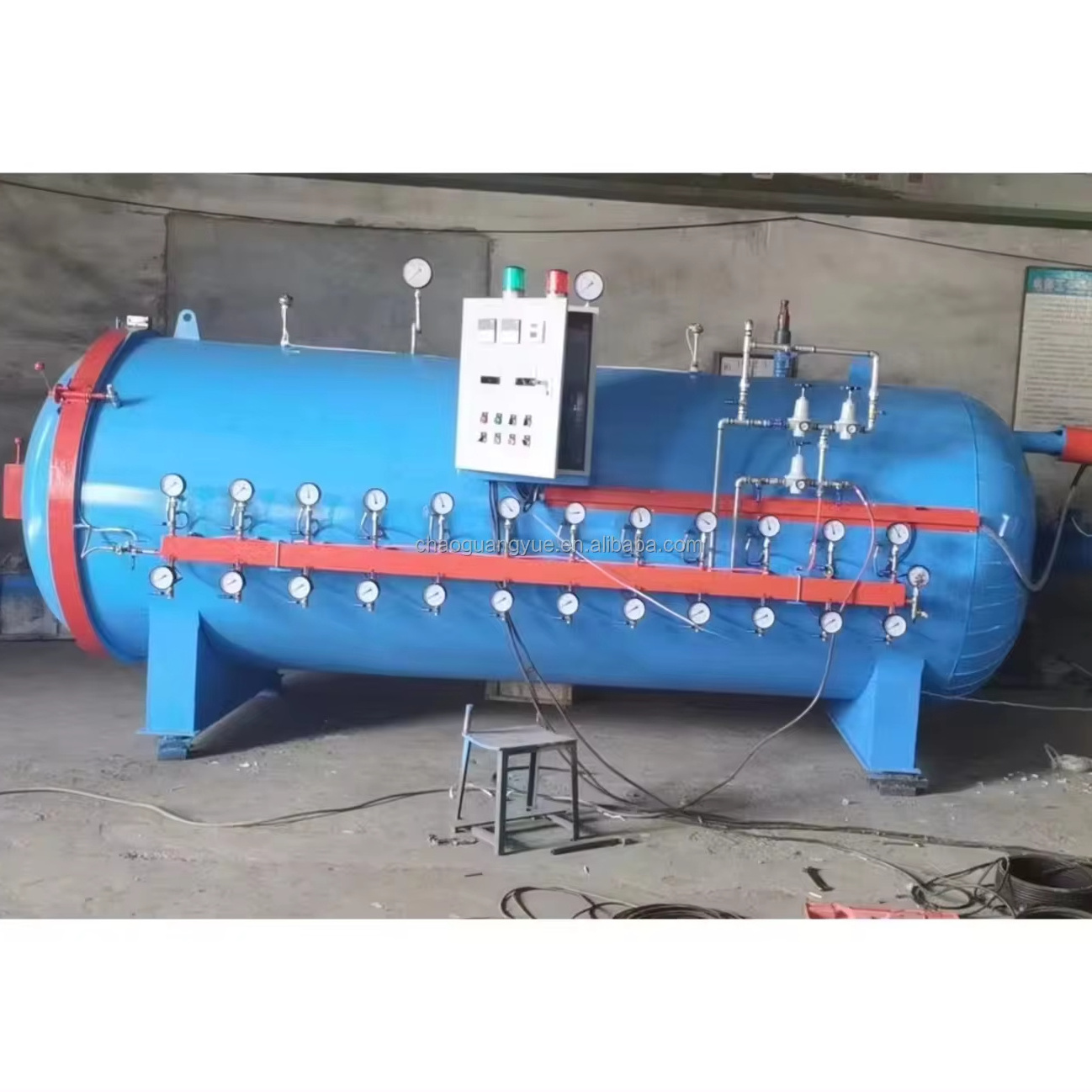

Electric heating vulcanization tank adopts automatic control temperature, pressure, curing time. Which one Is a new type of vulcanization equipment, energy saving, high efficiency, environmental protection, this equipment does not need to boiler, without manual operation, external environment no pollution, and reached the best effect in automatic operation. A thirty percent energy saving than normal vulcanizing tank, stable and reliable performance, its comprehensive performance is superior to other curing equipment.

Type: 1500x400

Electric heating vulcanizing tank diameter is 1500 mm ,straight tube length is 4000mm ,Q345R material ,the design temperature of 180°.steam curing pot adopts automatic control temperature ,pressure ,time .heating power is 45kw ,4kw fan power.

Heating methods:

electric ss steel heating tube, long service, electric heat pipe is divided into three groups and individual control ,reach the set temperature to keep one group of vulcanizing insulation ,this design can effectively save energy consumption reduce vulcanizing using cost.

tank door open ways:

Quickly open the door way (full-automatic, electric, manual) simple operation, use safety

tank door sealing mode::

Inflatable sealing ring it works automatically by compressed air or when the tank pressure pneumatic sealing.

the tank door safety chain:

Automatic pressure safety chain

Manual safety chain

Temperature control mode:

(Computer aided control and computer automatic control)

pressure control mode :

The electric contact pressure gauge and pressure sensors

vulcanizing tank insulation

Vulcanizing tank insulation adopts 2mm built-in 80mm aluminum silicate insulation materials. Sealing head thickness is 5mm ,80mm aluminum silicate insulation material between them .ensure that heat is not volatile ,don’t waste ,make full use of heat energy, save energy .

Use scope:

Rubber, tires, rubber hose, rubber roller, rubber sheet, wood and rubber products

automatic heating air vulcanizing tank

Electric steam vulcanizing tank

Tire retreading equipment

the introduction of my company

the main products are plate vulcanizing press ,open rubber mixing mill ,banbury intensive kenader ,extruder ,rubber machinery ,shot blast cleaning machine ,foundry machinery ,and vulcanizing tank and tire treading machine .

1.the company owns a high reputation.

2.the products have been sold to more than 20 proivince and cities in china and have beeb exported to more than 30 countries and areas.

3.the company takes to live by quality ,to develop by reputation ,we have CE ISO SGS,certification of products.
