Quick Details
-
Model Number:
-
3D welding table 4
-
Material:
-
cast iron or steel, cast iron or steel
-
Accuracy:
-
customized
-
Operation Mode:
-
customized
-
Item Weight:
-
customized
-
Capacity:
-
customized
-
Product Name:
-
3D Welding Table
-
Precision Machined Working Surfaces:
-
5
-
Hole Diameter:
-
16mm or 28mm
-
Hole Pattern:
-
"50mm*50mm grid for 16mm 100mm*100mm grid for 28mm"
-
Surface Treatment:
-
heat treatment, nitrogen treatment
-
Structure:
-
be reinforced on the underneath side by ribs
-
Supporting:
-
legs or steel frame
-
Accessories:
-
available
-
Packaging:
-
plywood box
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HENGFENG
-
Model Number:
-
3D welding table 4
-
Material:
-
cast iron or steel, cast iron or steel
-
Accuracy:
-
customized
-
Operation Mode:
-
customized
-
Item Weight:
-
customized
-
Capacity:
-
customized
-
Product Name:
-
3D Welding Table
-
Precision Machined Working Surfaces:
-
5
-
Hole Diameter:
-
16mm or 28mm
-
Hole Pattern:
-
"50mm*50mm grid for 16mm 100mm*100mm grid for 28mm"
-
Surface Treatment:
-
heat treatment, nitrogen treatment
-
Structure:
-
be reinforced on the underneath side by ribs
-
Supporting:
-
legs or steel frame
-
Accessories:
-
available
-
Packaging:
-
plywood box

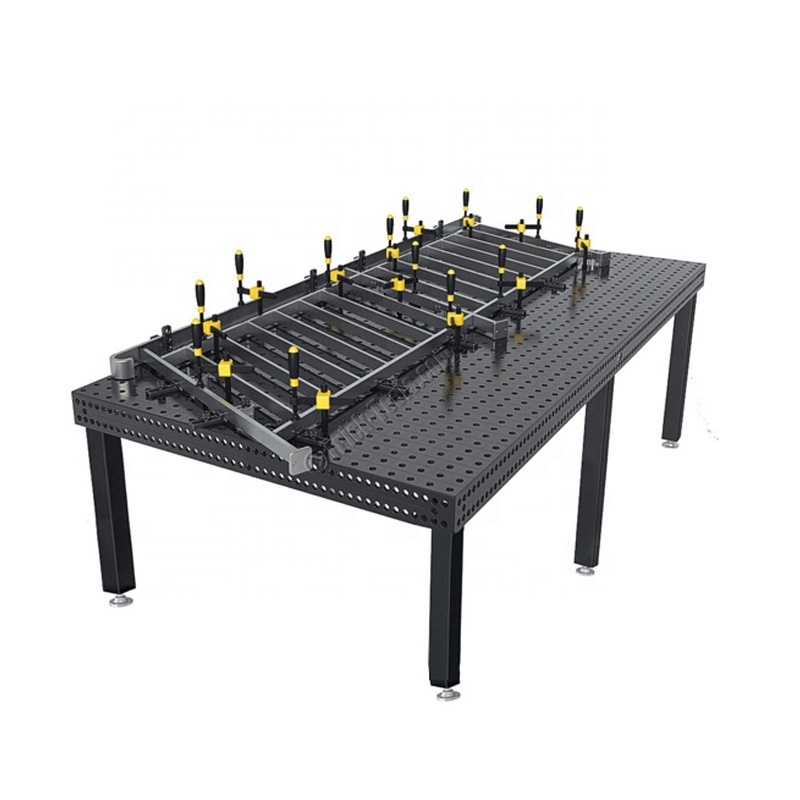

3D Welding Table:
3D Welding Table —— D28 series
Material: cast iron (HT 200, HT 250, HT 300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 28mm
Hole pattern: 100mm*100mm grid
Hole pitch: 100mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
3D welding table —— D16 series
Material: cast iron (HT 200, HT 250, HT 300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 16mm
Hole pattern: 50mm*50mm grid
Hole pitch: 50mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
Material: cast iron (HT 200, HT 250, HT 300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 28mm
Hole pattern: 100mm*100mm grid
Hole pitch: 100mm
Side surfaces height: 200mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
3D welding table —— D16 series
Material: cast iron (HT 200, HT 250, HT 300) or welding steel
Precision machined working surfaces: 5
Hole diameter: 16mm
Hole pattern: 50mm*50mm grid
Hole pitch: 50mm
Side surfaces height: 100mm
Be reinforced on the underneath side by ribs
Surface treatment: nitrogen treatment available
Supporting: legs or steel frame
Accessories:
1. Tools for supporting: U-shaped cube case, L-shaped cube case, Angle supporting, and Angle gauge
2. Spare parts for locating
3. Tools for clamping and fixing
4. Spare parts for locking working pieces
5. Auxiliary tools
3D Welding Table —— D28 Series
|
Size: L×W×H (mm)
|
D28 Part No.
|
|
1000x1000x200
|
JX28D1010
|
|
1200x1200x200
|
JX28D1212
|
|
1500x1000x200
|
JX28D1510
|
|
1500x1500x200
|
JX28D1515
|
|
2000x1000x200
|
JX28D2010
|
|
2000x1500x200
|
JX28D2015
|
|
2400x1200x200
|
JX28D2412
|
|
3000x1500x200
|
JX28D3015
|
|
3000x2000x200
|
JX28D3020
|
|
4000x2000x200
|
JX28D4020
|
3D Welding Table —— D16 Series
|
Size: L×W×H(mm)
|
D16 Part No.
|
|
1000x500x100
|
JX16D1005
|
|
1000x1000x100
|
JX16D1010
|
|
1200x1200x100
|
JX16D1212
|
|
1500x1000x100
|
JX16D1510
|
|
1500x1500x100
|
JX16D1515
|
|
2000x1000x200
|
JX16D2010
|
|
2400x1200x200
|
JX16D2412
|
Details for 16mm Seris
Details for 28mm Seris
1. Customer First
Customer driven approach to meet any tailor-made requirements & deadlines.
2. Reliable Quality
Complete Design & Manufacturing facilities in house.
3. Timely Delivery
Factory supplier; arrange production accordingly and well control the production schedule.
4.Precision Solution
To provide high quality surface plates & measuring tools, services and solutions to all industries.
