Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VSEE-JIUYANG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Paddy dryer
-
Company type:
-
Manufacturer
-
Capacity:
-
5-50 ton per set batch cycle
-
Parts:
-
Burner, Heating furnace,Husk burining fumace,Vibaratory sieve
-
Guarantee time:
-
One year
-
Technical support:
-
Installing and Maintenance service avialable
-
Customized service:
-
Available
-
Feature:
-
Big drying area,multi-channel drying layer,efficient and uniform
-
Oversea aftersale service:
-
Available
Quick Details
-
Weight (KG):
-
13849
-
Type:
-
Grain Processing Equipment
-
Use:
-
Paddy dryer in rice mill
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VSEE-JIUYANG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Paddy dryer
-
Company type:
-
Manufacturer
-
Capacity:
-
5-50 ton per set batch cycle
-
Parts:
-
Burner, Heating furnace,Husk burining fumace,Vibaratory sieve
-
Guarantee time:
-
One year
-
Technical support:
-
Installing and Maintenance service avialable
-
Customized service:
-
Available
-
Feature:
-
Big drying area,multi-channel drying layer,efficient and uniform
-
Oversea aftersale service:
-
Available

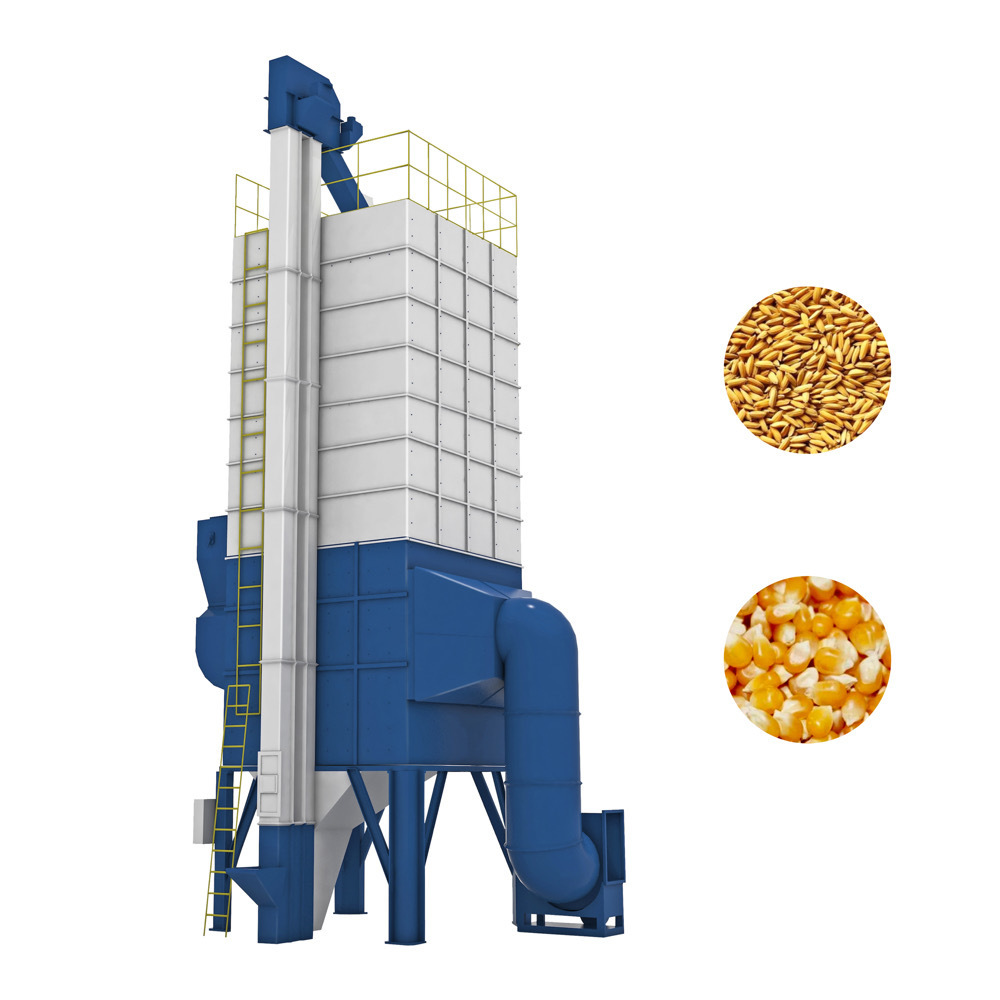

VSEE-JIUYANG Grain Drying/ Rice Paddy Dryer
VSEE-JIUYANG take technology as the support, and take the market as the guidance. Focus on drying equipment research and development, manufacturing, complete product range and comprehensive technology. Our dryer have series 10T,15T,20T,30T,40T,50T,80T,100T,130T,150T etc. Our drying furnace have series 5L-30, 5L-60, 5L-1300, 5L-1500, 5L-2000 five efficient indirect furnace. These are suitable for the drying of cereal, such as rice, wheat, grain, corn, cottonseed and seed etc, to ensures that the moisture content of rice, wheat and seed is higher than national storage standard.
Technology Advantages:
New Intelligent Control
Multistage drying temperature setting automatically with different moisture and customer's requirements.
Energy saving.
Drying quickly.
Top Box
Solid internal support structure.
Made of high quality material with a durable life.
Drying Room
Stainless steel NET plates.
Huge dry layer increases exchaning time and improve the drying rate.
To sure the grain drying smooth and uniform and fast.
Electricity and energy
Circulatory System
Using up and down screw conveyor cycle system to avoid grain crushing and energy saving,truoble-free maintenance problems.
Moisture Sensor
The moisture can be determined cutomatically during the process of drying.
Machine can be stopped automatically by air cooling and drying operation after the value reached.
Frequency Conversion Type Allocating Axis
The most durable axis and blades with reinforcement combines with the control of frequency conversion type allocating axis.The moisture of grain can be distributed evenly under the uniform circulation.All the grain of each drying roon will be alternately circularty dried from four sides:front,rear,left and right.
Automatic Air Duct Cleaning Structure
All the grain dust cleaned by air flow during the heat inner air duct cleaning system.
No any grain dust remains.
Quick output structure
Unique bottom design without motor make grain quick output and power and time saving.
Customized
The Operator Panel
Industrial grade compact PLC
Human machine interface
Clearly user display
Convenient and user-friendly operation
Main Features：
1)Up- and-down design without screw converyor, lowered grain crack rate, trouble-free and saving power.
2) Large drying area, thin multi-channel drying layer, makes drying efficiency and uniform.
3) Automatic drying monitoring system, temperature and moisture dynamic display, fault reminder, simple operation, make the operation management more convenient.
4) Equiped with imported grain moisture tester, real-time accurate detection of the current moisture value of grain.
5) Heatingby multifunctional hot air furnace, uses rice husk, straw, wood and other fuels, makes low operating costs.
6) Strongly remove impurity, dryer with strongly removal fuction efficiently dry and remove impurity.
7) The inner heat exhaust air duct is automatically cleaned by air flow, grain dust is discharged with the grain, not stored in qir duct.
8) According to the level of misture and the customer's drying needs, set multistage drying temperature automatically, to achieve uniform, energy saving, fast drying.
9) The most durable axis and blades with reforcement in industry, combines with the control by frequency conversion type allocating axis.
|
Model
|
5H-15
|
5H-20
|
5H-30
|
5H-40
|
5H-50
|
||||
|
Form
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
Batch Cycle
|
||||
|
Capacity（T）
|
15T/Batch
|
20T/batch
|
30T/batch
|
40T/batch
|
50T/batch
|
||||
|
Machine Dimension
|
5700*3860*11310mm
|
5750*3920*11970mm
|
6180*4675*12800mm
|
6285*4755*15430mm
|
6370*4730*1915mm5mm
|
||||
|
Feeding time
|
50min
|
40min
|
60min
|
45min
|
50min
|
||||
|
Discharge time
|
40min
|
34min
|
52min
|
38min
|
40min
|
||||
|
Drying rate
|
Paddy 0.6-1.5% / hour Wheat 0.4-1.5% / hour Corn: 0.6-1.5% / hour
|
Paddy 0.6-1.2% / hour
Wheat 0.4-1.4% / hour |
Paddy 0.6-1.2% / hour
Wheat 0.4-1.4% / hour |
|
|
||||
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer
should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local
transportation and security when the Engineer arrived.
