Quick Details
-
Application:
-
Mortar spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH MACHINERY
-
Dimension(L*W*H):
-
150*120*160
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2024
-
Conveying distance:
-
50m
-
Hopper volume:
-
100L
-
greatest pressure:
-
8MPa
-
Applicable material ratio:
-
0.7-1:1:3
-
Scope of application:
-
Mortar/Grout/Real Stone
-
Use voltage:
-
380V three-phase
-
power:
-
7.5kw+3kw
-
by particle size:
-
8mm
-
Inner diameter of delivery pipe:
-
32
-
Total Weight:
-
320KG
Quick Details
-
Max. vertical conveying distance:
-
50M
-
Max. horizontal conveying distance:
-
200M
-
Hopper Capacity:
-
200L
-
Application:
-
Mortar spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DH MACHINERY
-
Dimension(L*W*H):
-
150*120*160
-
Weight:
-
500 kg
-
Marketing Type:
-
New Product 2024
-
Conveying distance:
-
50m
-
Hopper volume:
-
100L
-
greatest pressure:
-
8MPa
-
Applicable material ratio:
-
0.7-1:1:3
-
Scope of application:
-
Mortar/Grout/Real Stone
-
Use voltage:
-
380V three-phase
-
power:
-
7.5kw+3kw
-
by particle size:
-
8mm
-
Inner diameter of delivery pipe:
-
32
-
Total Weight:
-
320KG
Scope of application:
1. Suitable for spraying materials: thermal insulation mortar, perlite, real stone paint, putty, cement mortar, fireproof materials, coating materials and other spraying, grouting and conveying applications.
2, The construction efficiency is high, the quality adopts foreign technology, and the application life is long.
3. The machine is small and exquisite, easy to carry on site, and the cost of accessories is low.
4. Effectively reduce manual transportation, reduce labor intensity of workers and improve construction quality, and it is convenient to apply.
5. The machine standard batching pipe, air pipe, spray gun, stator, spray head, air compressor.
6. It can be matched with mortar mixer.
Product Description
Specification
|
Model
|
DH-311
|
DH-318
|
DH--511
|
DH--711
|
DH--712
|
|
work efficiency
|
150㎡/hour
|
180㎡/hour
|
200㎡/hour
|
260㎡/hour
|
300㎡/hour
|
|
delivery flow
|
3m3/h
|
3m³/h
|
3-6m³/h
|
4-6m³/h
|
4-6m³/h
|
|
Conveying distance
（Horizontal distance）
|
30 m
|
50m
|
50m
|
50m
|
50m
|
|
vertical distance （Vertacal
distance）
|
20m
|
22m
|
25 m
|
28m
|
30m
|
|
Hopper volume
|
60L
|
80L
|
80L
|
120L
|
120L
|
|
greatest pressure
|
3MPa
|
3MPa
|
3Mpa
|
3 Mpa
|
6 Mpa
|
|
Applicable material ratio (water, ash, sand)
|
0.7—1:1:3
|
0.7—1:1:3
|
0.7-1:1:3
|
0.7-1:1:3
|
0.7-1:1:3
|
|
Use voltage
|
220V
|
380V
|
380V three-phase
|
380V three-phase 50Hz
|
380V three-
|
|
power
|
4kw
|
7.5kw
|
8hp/12hp
|
7.5kw
|
7.5kw+3kw
|
|
by particle size
|
≤4mm
|
≤8mm
|
≤ 7mm
|
≤ 8mm
|
≤ 8mm
|
|
Inner diameter of delivery
pipe
|
32#
|
32#
|
32#
|
32#
|
32#
|
|
Air compressor displacement
|
0.3m³/min
|
0.3m³/min
|
0.3m³/min
|
0.3m³/min
|
0.3m³/min
|
|
Total Weight
|
200kg
|
320kg
|
350kg
|
340kg
|
370kg
|

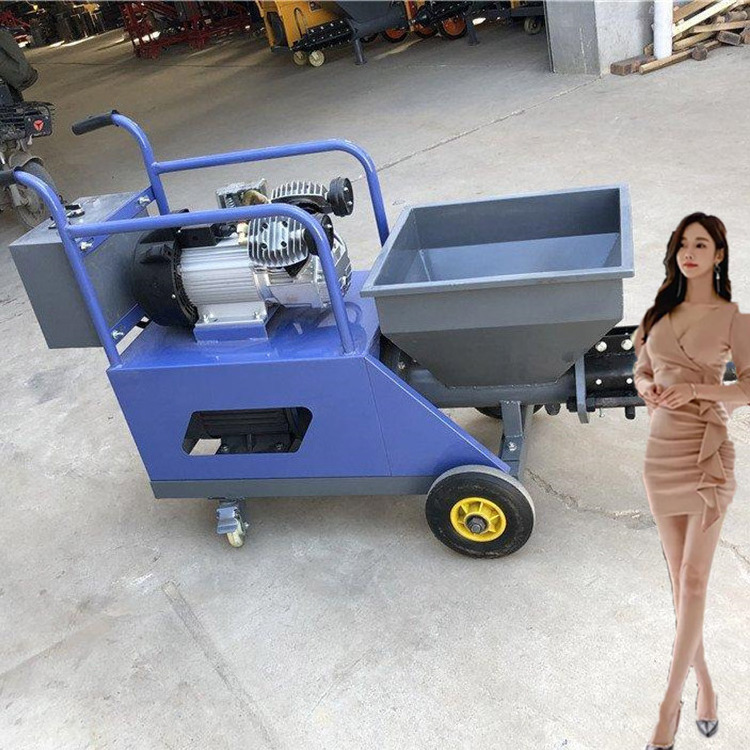

Details Images
Our Services for you ❤
1.Whole process guidance With more than 15 years of service experience, we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
2.Provide a full set of construction method and equipment training Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
3.After-sales service system Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customer
4.Support customization Relying on our powerful flexible production line, we can give you the right to fully choose the mold,drive method, accessories upgrade, shell material, appearance color and Logo etc.
5.Extensive spare parts service The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
6.Support sea, land and air transportation We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
