Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengfeng
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
100 kg
-
PLC Brand:
-
other
-
Product name:
-
pulp agitator
-
Vane diameter:
-
850mm
-
Chest agitator:
-
50-85m3
-
Usage:
-
propeller agitator/mixing agitator for slurry tank
-
Blades:
-
3 blades
-
Color:
-
as customer's requirement
-
Consistency:
-
<5%
-
Driver:
-
motor with v-belt
-
Certification:
-
/
Quick Details
-
Type:
-
pulping equipment
-
Production Capacity:
-
/
-
Max. workable width:
-
/
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shengfeng
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
100 kg
-
PLC Brand:
-
other
-
Product name:
-
pulp agitator
-
Vane diameter:
-
850mm
-
Chest agitator:
-
50-85m3
-
Usage:
-
propeller agitator/mixing agitator for slurry tank
-
Blades:
-
3 blades
-
Color:
-
as customer's requirement
-
Consistency:
-
<5%
-
Driver:
-
motor with v-belt
-
Certification:
-
/
Product Description
Low Consumption / High efficiency

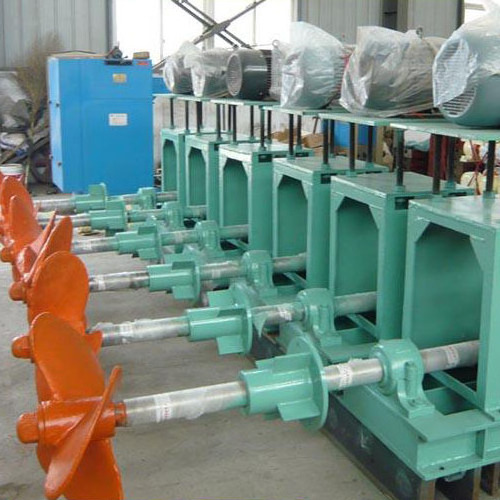

Agitator for mixing of paper pulp:
1, Its volume is small
2, the mixed time is short
3, the agitation effect is good
The equipment is used to stir pulp cyclically in square pulp pool .By using the equipment the pulp liquid is maintained in suspension condition, so it ensured that the uniform distribution of paper components in pulp.and it is also advantageous to full reaction of the chemical liquid.
Application: designed for all kinds of fibers in chests or storage towers up to a consistency of 6.5%.
Application: designed for all kinds of fibers in chests or storage towers up to a consistency of 6.5%.
Specification
|
1
|
Material
|
All the parts connected with the medium are made of stainless stell
|
|
2
|
Blades
|
The agitator blades can be easily adjusted to meet different needs.
|
|
3
|
Guide plate
|
A strong guide plate protects the shaft and improves mixing efficiency and avoids the entanglement of impurities as well.
|
|
4
|
Sleeve
|
Shat protection sleeve prevents shaft from wearing and corrosive.
|
|
5
|
Drive
|
Belt transmissions easily and steady and be used tensioner fixed pulleys and easily assemble and disassemble.
|
|
6
|
Foundation
|
For most sizes agitator(dia.≤1300mm)is fixed on the wall of the chest and no nees of foundation.
|
|
7
|
Available seals
|
The seal casing can be equipped with several eal types to meet the requirements of different applications. Packing can be replaced
from the outside without emptying the chest. |
Technical Data:
|
Item
|
Dia of impeller(mm)
|
Min speed(rpm)
|
Max speed(rpm)
|
Max power(Kw)
|
Motor speed(rpm)
|
Weight(kg)
|
|
1
|
600
|
320
|
400
|
11
|
1000
|
380
|
|
2
|
800
|
220
|
308
|
15
|
1000
|
400
|
|
3
|
1000
|
184
|
260
|
30
|
1000
|
800
|
|
4
|
1300
|
165
|
200
|
55
|
1000
|
980
|
