Quick Details
-
Dimension(L*W*H):
-
5500*1950*2780mm
-
Weight:
-
8000 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Rotary Drilling Machine
-
Drilling diameter:
-
140-325mm
-
Drilling depth:
-
320meters
-
Drilling direction:
-
vertical
-
Engine power:
-
92kw
-
Drilling speed:
-
55-115rpm
-
Air Pressure:
-
1.7-3.3Mpa
-
Air consumption:
-
23m3/min
-
Feed stroke:
-
3000mm
-
Certification:
-
ISO,CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rotary well Drilling Rig
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
5500*1950*2780mm
-
Weight:
-
8000 KG
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Rotary Drilling Machine
-
Drilling diameter:
-
140-325mm
-
Drilling depth:
-
320meters
-
Drilling direction:
-
vertical
-
Engine power:
-
92kw
-
Drilling speed:
-
55-115rpm
-
Air Pressure:
-
1.7-3.3Mpa
-
Air consumption:
-
23m3/min
-
Feed stroke:
-
3000mm
-
Certification:
-
ISO,CE
Product Description
Multifunctional Drill Rig of Geothermal Well Water well drilling rig
HW PNEUMATIC AIR COMPRESSOR DRILL RIG

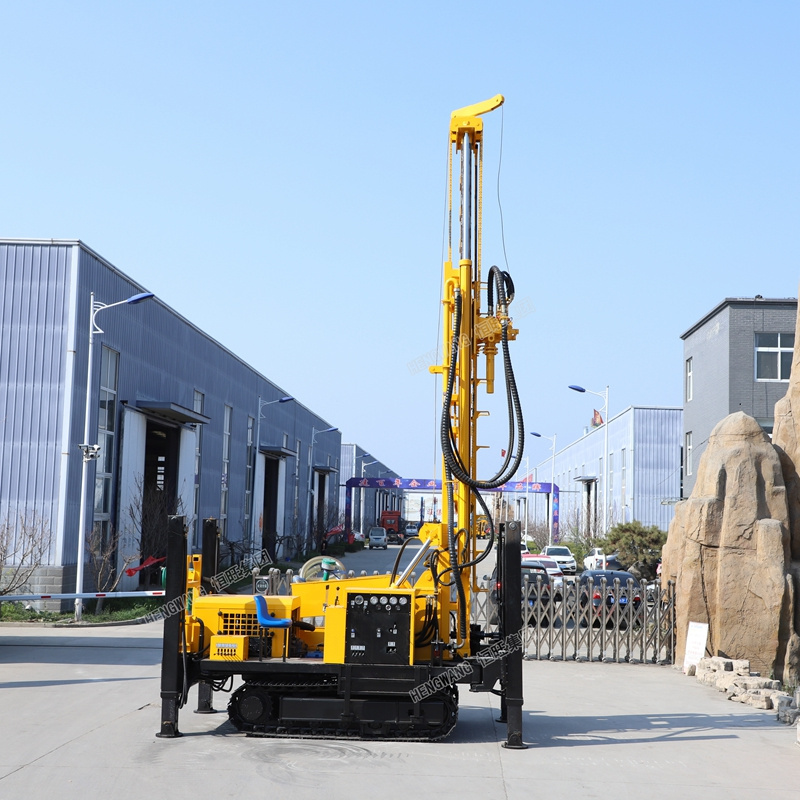

HW-300L (CRAWLER TYPE)With 1800mm length hydraulic landing leg,easy to move
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW-300L (CRAWLER TYPE)With 1800mm length hydraulic landing leg,easy to move
Super hydraulic transmission, CNC control, automatic drilling experience
Drilling Rock:20M~40M/Hour
HW series of well drilling rig is a lightweight, efficient, versatile drilling hole equipment, which is mainly applied in
drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The pneumatic drill machine can work on different formations, drilling diameter up to 245mm. The well drill equipment adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. The down the hole hammer drill rig with unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
drilling wells, irrigation wells, geothermal wells and air holes for other purposes, especially for mountain and rock formation water engineering. The pneumatic drill machine can work on different formations, drilling diameter up to 245mm. The well drill equipment adopts new hydraulic technology, supporting high torque hydraulic motor rotation and big bore hydraulic propulsion, branded multi-cylinder engine-powered two-stage air filter and the intake air compressor designed for hydraulic systems, extend the life of diesel engines. The down the hole hammer drill rig with unique pump design to facilitate maintenance, reduce maintenance costs. Centralized hydraulic control console, easy to operate.
Specification
Specifications of water well drilling rig machine as follows:
Multifunctional Drill Rig of Geothermal Well Water well drilling rig
|
Parameter of DTH rotary water well drilling rig machine
|
|
|
|
Model
|
HQZ320L
|
|
|
Overall weight (T)
|
8
|
|
|
Dimension (mm )
|
5500*1950*2780
|
|
|
Drilling diameter(mm )
|
140-325
|
|
|
Drilling depth(m)
|
300
|
|
|
One-time advance length of the drill(mm)
|
3000/6000
|
|
|
Traveling speed(km/h )
|
2.5
|
|
|
Climbing ability(max )
|
30
|
|
|
Minimum Ground Clearance(mm)
|
230
|
|
|
Working Air Pressure(mpa )
|
1.7-3.3
|
|
|
Air consumption
|
23
|
|
|
Main machine power(kw)
|
92/Yuchai
|
|
Details Images
Features of
Multifunctional Drill Rig of Geothermal Well Water well drilling rig
2. The air drill machine with large rotary torque
3.Drilling rig integrated automation equipment,All terrain moves by itself
4.The drill equipment with 2 speed reversal, easy and fast to handle accidents.
5.The drilling rig adopts self loading and unloading,Easy to operating
Drilling rig mainly adopts mechanical transmission, the other parts use hydraulic transmission which can make rig works easily with low cost
The rotary drill machine equipped with two double motor,output torque 13428-250N.m, rotary speed 14-500r/min
Down to the hole drilling rig use mechanical power head , feed stroke is 3800mm, improve the drilling efficiency.
Working cases of Multifunctional Drill Rig of Geothermal Well Water well drilling rig
Hengwang drill machine has been exported many times to lots of countries which get a very good feedback. And the following is the pictures from our customer:
Hengwang drill machine Engineer in Ukraine for training
Hengwang well DTH hammer drill rig in Malaysia
pneumatic drill machine work site in Russia
water well drilling equipment working in Philippines
deep rock well drill Machine working case in Uzbekistan
CE certified geological drill machine working site in Italy
Packing & Delivery
Generally, we use standard exported wooden case for LCL drill equipment, and fixed well for FCL drill rig and air compressor.
