Quick Details
-
BCD Curve:
-
BCD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA
-
Model Number:
-
GYH8 1P-100A 125A
-
Rated Frequency (Hz):
-
50/60 Hz
-
Number of Pole:
-
2
-
Rated working voltage:
-
230V/400V
-
CERTIFICATE:
-
CE
-
Standard:
-
IEC 60947-3
-
Material:
-
Silver Contact
-
Rated frequency:
-
50/60 Hz
-
Electrical Life:
-
1500
-
Mechanical Life:
-
8500
Quick Details
-
Breaking Capacity:
-
6KA
-
Rated Voltage:
-
230V/400V
-
Rated Current:
-
32-125A, 32 63 80 100 125A
-
BCD Curve:
-
BCD
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA
-
Model Number:
-
GYH8 1P-100A 125A
-
Rated Frequency (Hz):
-
50/60 Hz
-
Number of Pole:
-
2
-
Rated working voltage:
-
230V/400V
-
CERTIFICATE:
-
CE
-
Standard:
-
IEC 60947-3
-
Material:
-
Silver Contact
-
Rated frequency:
-
50/60 Hz
-
Electrical Life:
-
1500
-
Mechanical Life:
-
8500
···········This link price is only for
GYH8 1P-100A 125A··········
Products Description

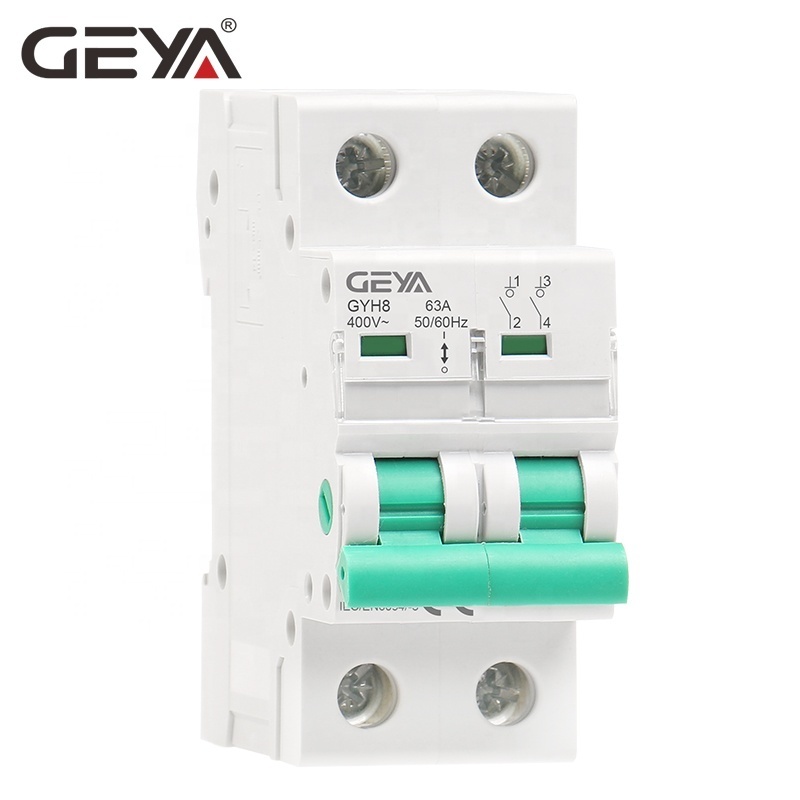

As the main switch in the combination of electrical terminal apparatus,
GYH8 isolator
is sultable for circuit of 50Hz,rated voltage 230V/400V,
rated current up to 125A
for iso-lating,it also can be used for infrequent on-and-off clrc-ult,and is widely used in industry,mine,high-building,commerce and household and so on.
In conformity to IEC/EN60947-3
In conformity to IEC/EN60947-3
Double-point
direct-moving srtucure
With
indicator function
in the contact position
Bilateral busbar
wiring capabilities to adapt to the wider use of premises
Maximum connecting ability of 35/50mm2,wiring torque
3.5N*m
,applicable to a variety of installing equipments,wiring stronger.
Protection class:IP20
Product Paramenters
|
Product Name
|
GYH8 Isolator Main Switch
|
|
Rated Current In
|
32A 40A 50A 63A 100A 125A
|
|
Poles
|
1P 2P 3P 4P
|
|
Rated Voltage Ue
|
1P: 230/400V 2P/3P/4P: 400V
|
|
Insulation Voltage Ui
|
500V
|
|
Rated Frequency
|
50/60Hz
|
|
Using the categories
|
AC-22A
|
|
Electrical Life
|
1500
|
|
Mechanical Life
|
8500
|
|
Protection Degree
|
IP20
|
|
Certificate
|
CE CB SEMKO SAA CCC TUV
|
|
Guarantee
|
2YEARS
|
