Quick Details
-
Brand Name:
-
TANFON
-
Model Number:
-
eSmart3
-
Work Time (h):
-
24H
-
Max PV Power:
-
DC150V
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Controller Properties:
-
MPPT (maximum power point tracking)
-
MPPT efficiency:
-
≥99.5%
-
Standby power:
-
0.5W~1.2W
-
System voltage:
-
Automatic recognition
-
Heat-dissipating method:
-
Intelligent fan cooling
-
Start the charge voltage point:
-
Battery voltage + 3V
-
Low input voltage protection point:
-
Battery voltage + 2V
-
Over voltage protection point:
-
DC150V
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TANFON
-
Model Number:
-
eSmart3
-
Work Time (h):
-
24H
-
Max PV Power:
-
DC150V
-
Max PV Voltage:
-
48V
-
Certificate:
-
CE
-
Warranty:
-
2 years
-
Controller Properties:
-
MPPT (maximum power point tracking)
-
MPPT efficiency:
-
≥99.5%
-
Standby power:
-
0.5W~1.2W
-
System voltage:
-
Automatic recognition
-
Heat-dissipating method:
-
Intelligent fan cooling
-
Start the charge voltage point:
-
Battery voltage + 3V
-
Low input voltage protection point:
-
Battery voltage + 2V
-
Over voltage protection point:
-
DC150V
Products Description
|

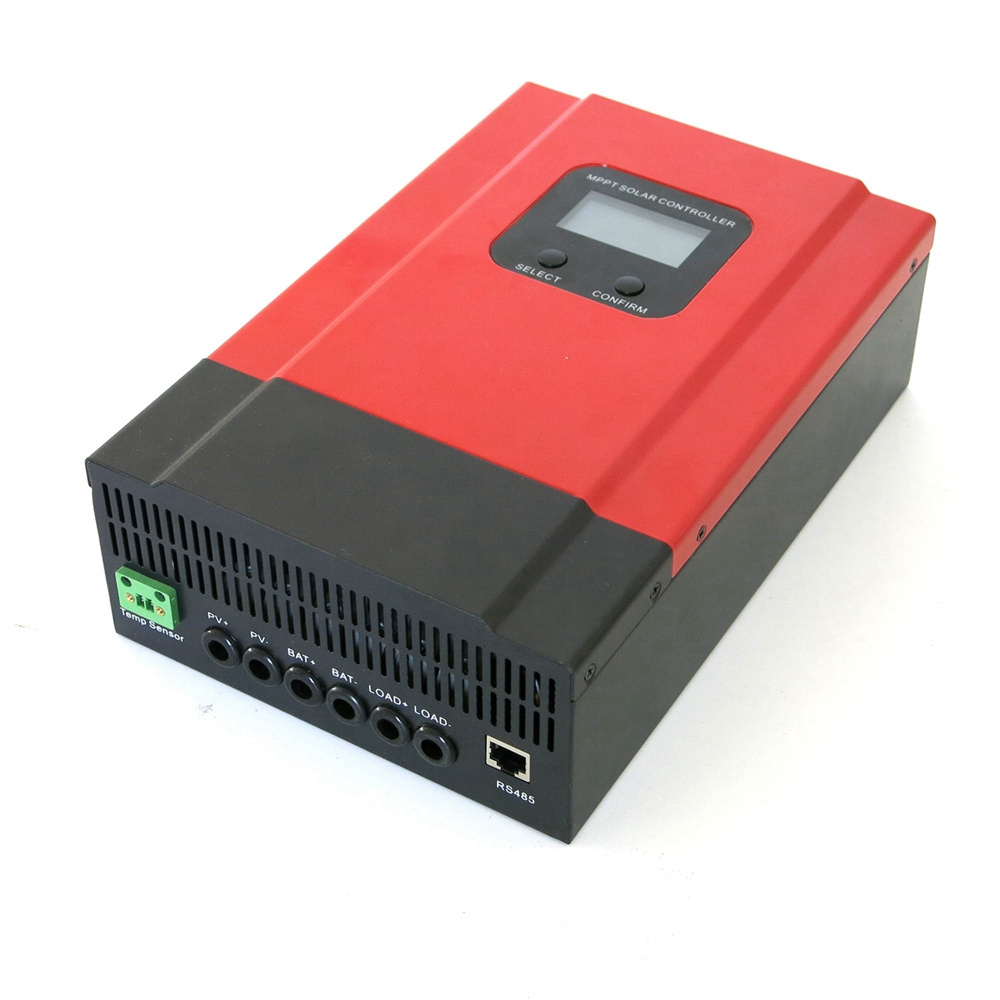

eSmart3 series
|
eSmart3 series
|
eSmart3-20A
|
eSmart3-20A
|
eSmart3-30A
|
eSmart3-40A
|
eSmart3-50A
|
eSmart3-60A
|
|||||
|
Product category
|
Controller Properties
|
|
MPPT (maximum power point tracking)
|
|
|
|
|
|||||
|
|
MPPT efficiency
|
|
≥99.5%
|
|
|
|
|
|||||
|
|
Standby power
|
|
0.5W~1.2W
|
|
|
|
|
|||||
|
|
System voltage
|
|
Automatic recognition
|
|
|
|
|
|||||
|
|
Heat-dissipating method
|
|
Intelligent fan cooling
|
|
|
|
|
|||||
|
Input
Characteristics |
Max.PV input voltage(VOC)
|
|
DC150V
|
|
|
|
|
|||||
|
|
Start the charge voltage point
|
|
Battery voltage + 3V
|
|
|
|
|
|||||
|
|
Low input voltage protection point
|
|
Battery voltage + 2V
|
|
|
|
|
|||||
|
|
Over voltage protection point
|
|
DC150V
|
|
|
|
|
|||||
|
|
Rated PV power
|
12V system
|
260W
|
390W
|
520W
|
650W
|
780W
|
|||||
|
|
|
24V system
|
520W
|
780W
|
1040W
|
1300W
|
1560W
|
|||||
|
|
|
36V system
|
780W
|
1170W
|
1560W
|
1950W
|
2340W
|
|||||
|
|
|
48V system
|
1040W
|
1560W
|
2080W
|
2600W
|
3120W
|
|||||
|
Other Parameters
|
Net Weight (kg)
|
|
2.3
|
|
|
2.6
|
|
|||||
|
|
Gross Weight (kg)
|
|
3
|
|
|
3.5
|
|
|||||
|
|
Product Size（mm）
|
|
240*168*66
|
|
|
270*180*85
|
|
|||||
|
|
Packing Size(mm)
|
|
289*204*101
|
|
|
324*223*135
|
|
|||||
PURE SINE WAVE INVERTER
1-6KW
MPPT
GRID TIE INVERTER
10KW-20KW
3 PHASE INVERTER
20KW-100KW
After Sales Service System
Our products ship out before will through about eight hours test to make sure the quality for you. During the warranty, have any quality problem, we will directly send a new free replace part to you.
