Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-105
-

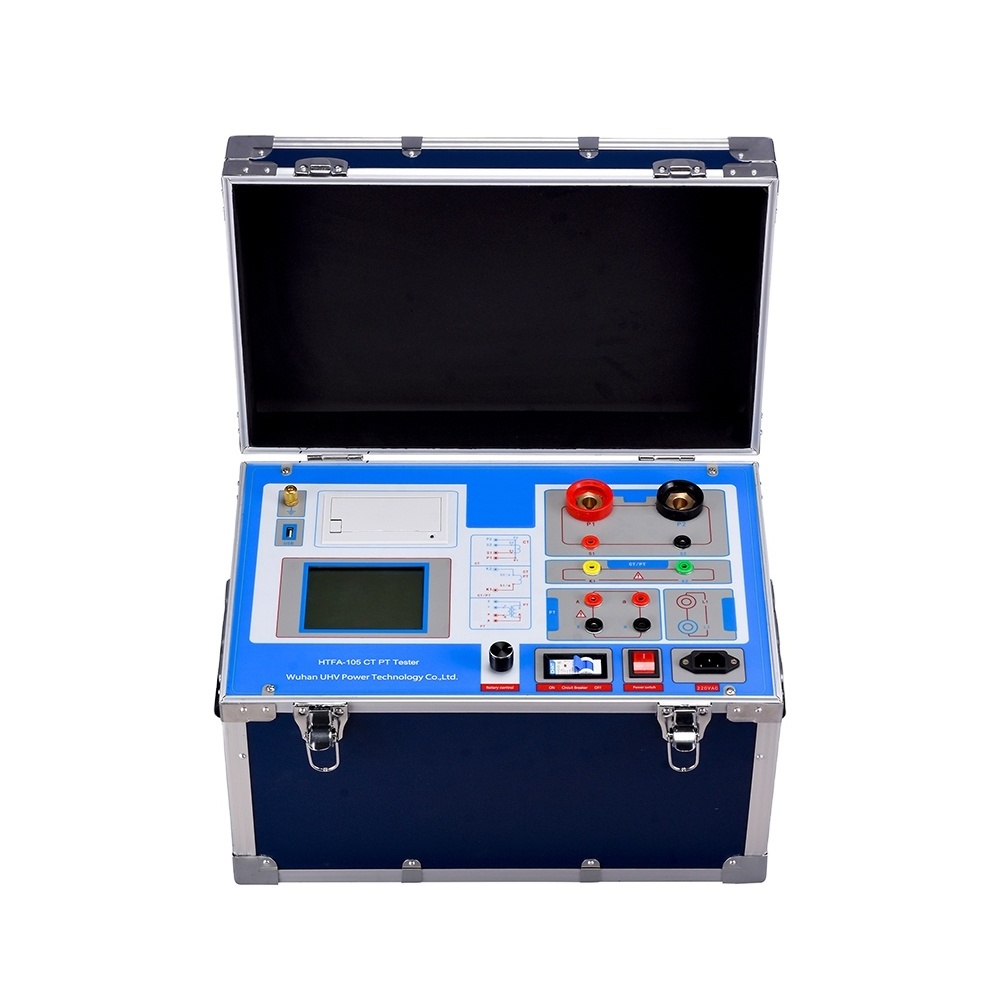

Product name:
-
CT PT Analyzer
-
Working power supply:
-
AC220V±10% ,50Hz
-
Output devices:
-
Note: 0 ~ 5A is the real value
-
High current output:
-
0~1000A
-
Excitation measurement accuracy:
-
≤0.5%(0.2%* reading +0.3%* range)
-
Temperature:
-
-10℃ ~ 40℃
-
Humidity:
-
≤90%
-
The altitude:
-
≤1000m
-
Dimension:
-
410 * 260 * 340mm 3
-
Weight:
-
≤18kg
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
UHV-105
-
Product name:
-
CT PT Analyzer
-
Working power supply:
-
AC220V±10% ,50Hz
-
Output devices:
-
Note: 0 ~ 5A is the real value
-
High current output:
-
0~1000A
-
Excitation measurement accuracy:
-
≤0.5%(0.2%* reading +0.3%* range)
-
Temperature:
-
-10℃ ~ 40℃
-
Humidity:
-
≤90%
-
The altitude:
-
≤1000m
-
Dimension:
-
410 * 260 * 340mm 3
-
Weight:
-
≤18kg
Product Paramenters
|
project
|
|
parameter
|
|
|
Working power supply
|
|
AC220V±10% 、50Hz
|
|
|
Output devices
|
|
Note: 0 ~ 5A is the real value, and greater than 5A ~ 20A is the calculated value
|
|
|
High current output
|
|
0～1000A
|
|
|
Excitation measurement accuracy
|
|
≤0.5%(0.2%* reading +0.3%* range)
|
|
|
CT ratio measurement
|
range
|
≤5000A/1A(25000A/5A)
|
|
|
|
precision
|
≤0.5%
|
|
|
PT ratio measurement
|
range
|
≤500kV
|
|
|
|
precision
|
≤0.5%
|
|
|
work environment
|
temperature
|
－10℃ ～ 40℃
|
|
|
|
humidity
|
≤90%
|
|
|
|
The altitude
|
≤1000m
|
|
|
size
|
|
410mm × 260mm × 340mm
|
|
|
weight
|
|
≤18kg
|
|
Product features
1、Support the detection of CT and Pt
2、Meet the requirements of GB 20840.3-2013 and GB 20840.2-2014
3、All testing items can be completed by single machine without other auxiliary equipment
4、It is equipped with micro fast printer, which can print test results on site directly
5、It adopts intelligent controller and is easy to operate
6、Large screen LCD, graphic display interface
7、The turning point value of CT / Pt (excitation) is given automatically according to the regulation
8、Automatic 5% and 10% error curves
9、It can save 3000 sets of test data without losing after power failure
10、It supports USB flash disk data transfer, which can be read by standard PC and generate word report document
11、It is small and light and less than 22kg, which is very convenient for field test
China Safety Electric Test Equipment Co., Ltd.
China Safety Electric Test Equipment Co., Ltd.
Established in 2021, which are located in Wuhan Optical Valley East Lake High-Tech Development Zone. We are a well-experienced OEM/ODM factory engaged in the research, development, manufacture, sale and service of electric power testing equipment or systems. Including AC Series Resonant Test System, AC/DC/VLF Hipot Test Set, Transformer Tester, Secondary Injection Relay Tester, Cable/Line Tester, Insulation Oil Tester, Circuit Breaker/Switch Tester & SF6 Test Equipment etc. Widely used in electric power,energy, transportation,metallurgical,chemical,mining and water conservancy project.
We have obtained the ISO 9001 quality system certification, OHSAS 18001:2007 Occupational Health and Safety Management System certification and all products conform to the international CE or Chinese state standards.
Our products are widely exported to all over the world and our service are recognized and highly appreciated by world scale customers, we will always provide you the best solution. Looking forward to building a thrust-worthy and long term relationship with you.
FAQ
1. Is your company a sales company or a manufacturer?
China Safety Electric Test Equipment Co., Ltd.
is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2004 and have fifteen years of production experience. Our company has reliable production lines, test rooms and R&D centers.
2. Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
3. Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
4. What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
5. What are the cooperative countries or regions?
Products have been successfully exported to the United States, Brazil, Australia, Russia, the Netherlands, Indonesia, Bangladesh, Iran, India, Saudi Arabia, Mongolia, Japan and other countries and regions. In the United States, India, Vietnam and other regions have cooperative distributors, can provide thoughtful services.
