Multi-Channel 32CH HD H.265 H264 SRT HLS RTP RTMP UDP SPTS Network Video IPTV Encoder

Multi-Channel 32CH HD H.265 H264 SRT HLS RTP RTMP UDP SPTS Network Video IPTV Encoder

ENC3740i This unit is designed especially for high channel density Distribution Video Engineering project which support rapid deployment, compatibility up to 48 HD-MI inputs Simultaneously with HEVC/H.265 and MPEG-4 AVC/H.264 video encoding . It’s ideal encoder, which can transfer the live program through the internet/LAN, and gives IP out over UDP (Unicast/Multicast), SRT, RTSP, RTMP, HTTP and HLS, and the output signals are to be received by PC, phone and other mobile terminals.

This solution is ideal for anyone looking for an easy and affordable way to support a large number of displays, such as a sports bar, house of worship, or digital signage. Multiple HD bridge units can be combined to create a headend that will support over 100 channels on your video network at each display. Depending on the number of programs you have, you can very flexibly choose a different number of coding channels.

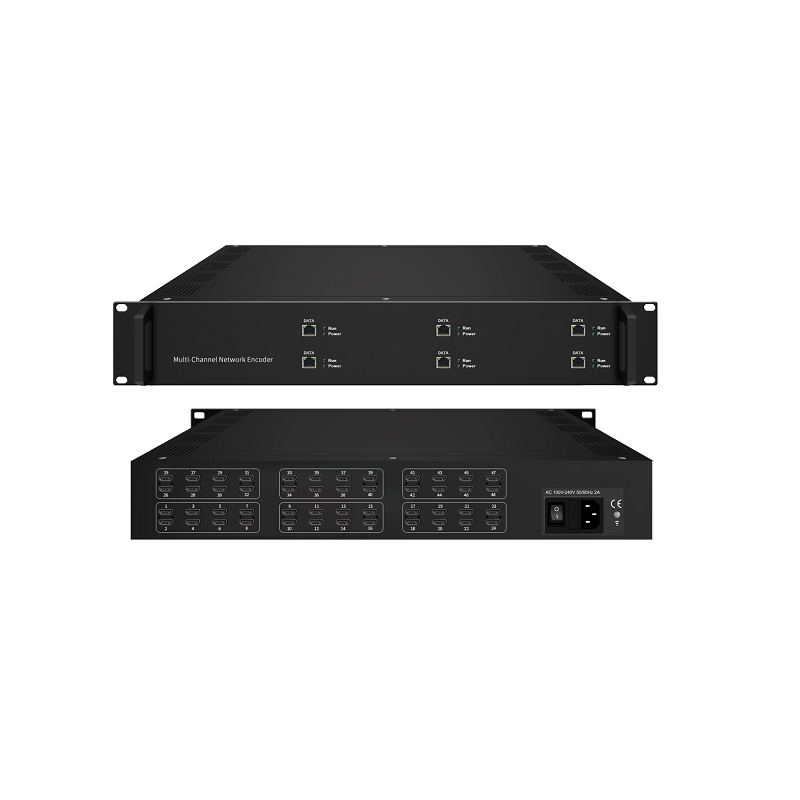

• High density, modular 2-RU system capable of hosting up 32/40/48 channels input, max 48 HD- MI inputs from 6 encoder modules
• optional 1-RU with 8/16/24 channels input
• HEVC/ H.265, MPEG-4 AVC video encoding
• Feature to adjust the audio volume prior to encoding
• Simultaneous outputs via 32/40/48 SPTS out
• IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP and HLS
• Support resolution downscale conversion
• Selectable the Value of PCR PID same as Video PID
• MPEG1 Layer II, LC-AAC,HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
• Support VBR and CBR bitrate mode
• Support LOGO,QR code,OSD insertion for every, All
  or Each module of local channel
• Easy-to-use web GUI

Main Application

• 1.Huge Number of HD channels In limited budget

  2.Migrate analog to DTV project

  3.Hotel,Campus of Video engineering project

  4.Convert Video to IP Connected with Camera, PC, Satellite Set Top Box, Local playout

  5.Applications in Logo, OSD Insertion of Video picture

Input Interfaces

Number of Channels : 32 ports, 40 ports, 48 ports, 6 modules- 2RU; 8 ports, 16 ports, 24 ports, 3 modules- 1RU

HD-MI 1.4a HDCP

Embeded in HD-MI (1 pairs per video)

Stream Output

RJ45 Port : 100/1000M GbE Port,  RJ45

Simultaneous output with 8*SPTS (each module) throuth  Data Port

IP out over UDP (Unicast/Multicast),SRT, RTP,RTSP, RTMP, HTTP, HLS

Video Processing

Resolution

Encoding : HEVC/H.265 HD/SD; MPEG-4 AVC/H.264 HD/SD

Bit-rate : 1Mbps~13Mbps each channel

Encoding Scheme : CBR, VBR

GOP Structure : IP...P (P Frame adjustment, without B Frame )

Select to configure Logo, Caption and QRCocder in any Position of Video Picture

Audio Processing

Encoding : MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through

Sampling rate : 48KHz

Resolution : 24-bit

MPEG-1 Layer 2 Bit-rate : 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

LC-AAC Bit-rate : 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps

HE-AAC Bit-rate : 48/56/64/80/96/112/128 kbps

Audio Gain : 0-255 Adjustable

System function

Web Network management

Chinese and English language

Ethernet software upgrade

Save/Restore/Facture Set/Backup/Load Setting

Log information printing in time

Environment

Dimension(W×L×H) : 482mm×328mm×44mm

Approx weight : 7.8kg

Temperature : 0~45℃(Operation); -20~80℃ (Storage)

Voltage range : 100 to 120/200 to 240V AC ±10%; 50/60Hz
