Quick Details
-
Warranty:
-
12 Months
-
Color:
-
white and blue(optional)
-
Application:
-
airport, hotel, train station
-
Conveyor Speed:
-
0.22 m/s
-
Certification:
-
CE/ROHS/ISO1600
-
Product name:
-
XR-8065 baggage scanner
-
Channel size:
-
800mm (W) * 650mm (high)
-
Brand:
-
Juzheng
-
Conveyor Max Load:
-
150kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JZXR
-
Usage:
-
public security check
-
Warranty:
-
12 Months
-
Color:
-
white and blue(optional)
-
Application:
-
airport, hotel, train station
-
Conveyor Speed:
-
0.22 m/s
-
Certification:
-
CE/ROHS/ISO1600
-
Product name:
-
XR-8065 baggage scanner
-
Channel size:
-
800mm (W) * 650mm (high)
-
Brand:
-
Juzheng
-
Conveyor Max Load:
-
150kg

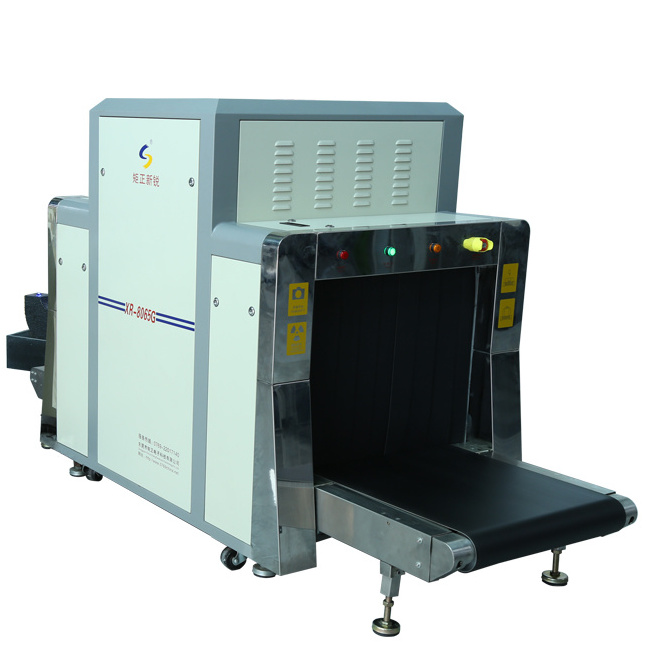

High quality luggage scanner x ray baggage scanner screening machine
X-ray use penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Used in the factory testing of security products and business units such as: airport, electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.
|
Tunnel Size |
800(W)*650(H)mm |
|
Conveyor Speed |
0.22m/s |
|
Conveyor Max Load |
200kg |
|
Dose per Inspection |
< 1.7μGy/h |
|
Resolution |
< 0.0787mm Copper Wire |
|
Spatial resolution |
Level: dia1.0mm, Vertical: dia1.0mm |
|
Penetrate resolution |
Dia 0.254mm |
|
Penetration |
≥ 38-40mm Steel |
|
Film Safety |
Guarantee ISO1600 Film |
|
X-ray Leakage |
<0.05μGy/h (at a distance of 5cm From external housing) |
|
Multi-energetic distinguish objects |
organic objects in orange, inorganic objects in blue, mixture in green |
|
High-energy/low energe |
switch from high energy to low energy
|
|
X-ray Sensor |
L-Shaped Photodiode Array (multi-energetic), 12bit Deep |
|
Monitor |
High Resolution Color, LCD Accord, 17 inch |
|
Image Processing |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level |
4096 |
|
Image Max Resolution |
1024 * 1280pixel |
|
Image Processing |
24bit for processing real time |
|
Image storage |
Storage 60000 pictures in real time |
|
Zones & Zoom |
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation |
|
Multi-energetic distinguish objects |
organic objects in orange, inorganic objects in blue, mixture in green |
|
High-energy/low energy |
switch from high energy to low energy |
|
Operation temperature/Humidity |
0°C-45°C/20%-95%(non-condensing) |
|
Storage Temperature/Humidity |
-20°C-60°C/20%-95%(non-condensing) |
|
Operation Power |
220VAC(±10%)50±3Hz |
|
Power Consumption |
1.0 KW (max), 1.0KW(working)Noise: <55db |
