Quick Details
-
Rolling thinckness:
-
0.5-0.8mm/0.7-1.0mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
5800*1600*1400mm
-
Weight:
-
kg
-
Feeding width:
-
575/600
-
Video outgoing-inspection:
-
Available
-
Name:
-
Bemo Standing Seam Roofing Machine
-
Usage:
-
Bolt-hidden roof
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
14m/min
-
Rolling thinckness:
-
0.5-0.8mm/0.7-1.0mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3PH
-
Dimension(L*W*H):
-
5800*1600*1400mm
-
Weight:
-
kg
-
Feeding width:
-
575/600
-
Video outgoing-inspection:
-
Available
-
Name:
-
Bemo Standing Seam Roofing Machine
-
Usage:
-
Bolt-hidden roof
Focus on roll forming machine for more than
20
years
1. Factory Lifetime Service
:offer technical support for the entire life of our machines.
2. Customized Profile
:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period
:we could supply you the
replacement parts free
of charge for
any damaged parts caused by quality problems.
any damaged parts caused by quality problems.
4. Overseas Services Optional
:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Min. Curving Radius 1M
Fixed in 20 FT Container
Straight and Tapered Profile Together in One Machine
1. Straight and Tapered Profile in one machine.
2. Smart body,available to fix in 20GP container,easy transport to the site.
3. Can be customized to only straight profile or only tapered profile in one machine.
4. Easy operation,low maintain cost.
2. Smart body,available to fix in 20GP container,easy transport to the site.
3. Can be customized to only straight profile or only tapered profile in one machine.
4. Easy operation,low maintain cost.
|
Main Technical Data:
|
|
|
|
Size
|
YX65-400-425
|
|
|
Dimension
|
5800*1600*1500mm
|
|
|
Motor Power
|
7.5KW*2
|
|
|
Hydraulic Power
|
2.2KW
|
|
|
Forming Steps
|
13Steps
|
|
|
Forming Speed
|
8-15m/min
|
|
|
Voltage
|
380V/50HZ/3PH
|
|
|
Effective Width
|
400mm,425mm
|
|
|
Material Width
|
575mm,600mm
|
|
|
Height of Roofing
|
65mm
|
|
|
Aluminum Thickness
|
0.7-1.0mm
|
|
|
Steel Thickness
|
0.5-0.8mm
|
|
|
Control System
|
PLC Control
|
|
Roll Forming Machine
(1) Material Thickness:0.3mm-0.8mm PPGI and GI
(2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
(2) No.of Roller Stations:14 to 18 steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr
Cut-Off Device
(1) Material for Cut-off Modular:Cr12mov after treatment
(2) Hardness for Heat Treatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
(3) Cut-off Type:Hydraulic Cut-off
(4) Motor for Hydraulic Stand:2.2KW
Tapered Forming
Straight and Tapered Profile in one machine
Smart Body
available to fix in 20GP container,easy transport
PLC Control Box
(1) Type:PLC Frequency Control System with touch screen
(2) PLC Brand:Schneider
(2) PLC Brand:Schneider

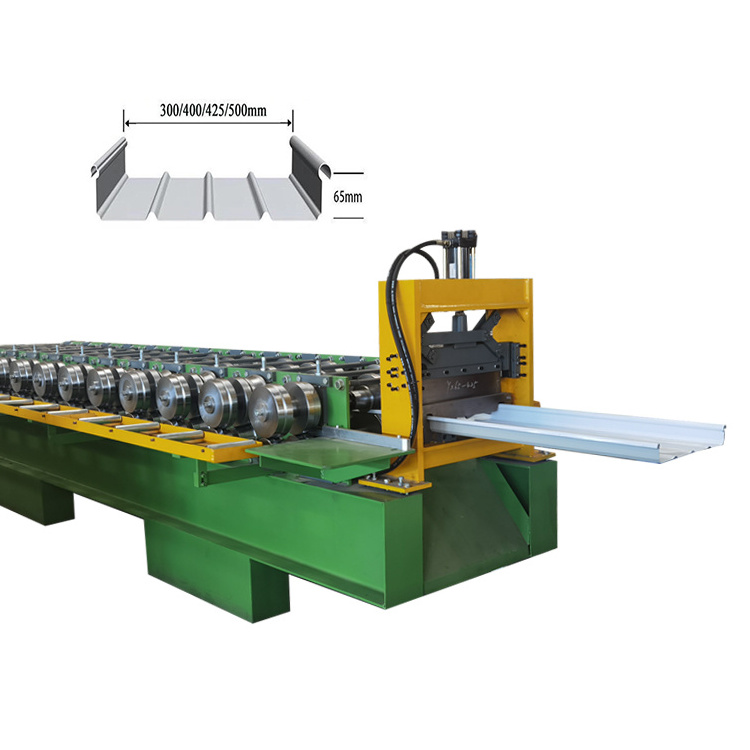

Profile Drawing
for YX65-300-400-425standing seam roofing 300/400/425/500mm 65mm
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
We are the roofing sheet roll forming machine manufacturer, and we can give you the most favorable price.
Welcome to consult price！
