Quick Details
-
Brand Name:
-
MAXLINE
-
Product name:
-

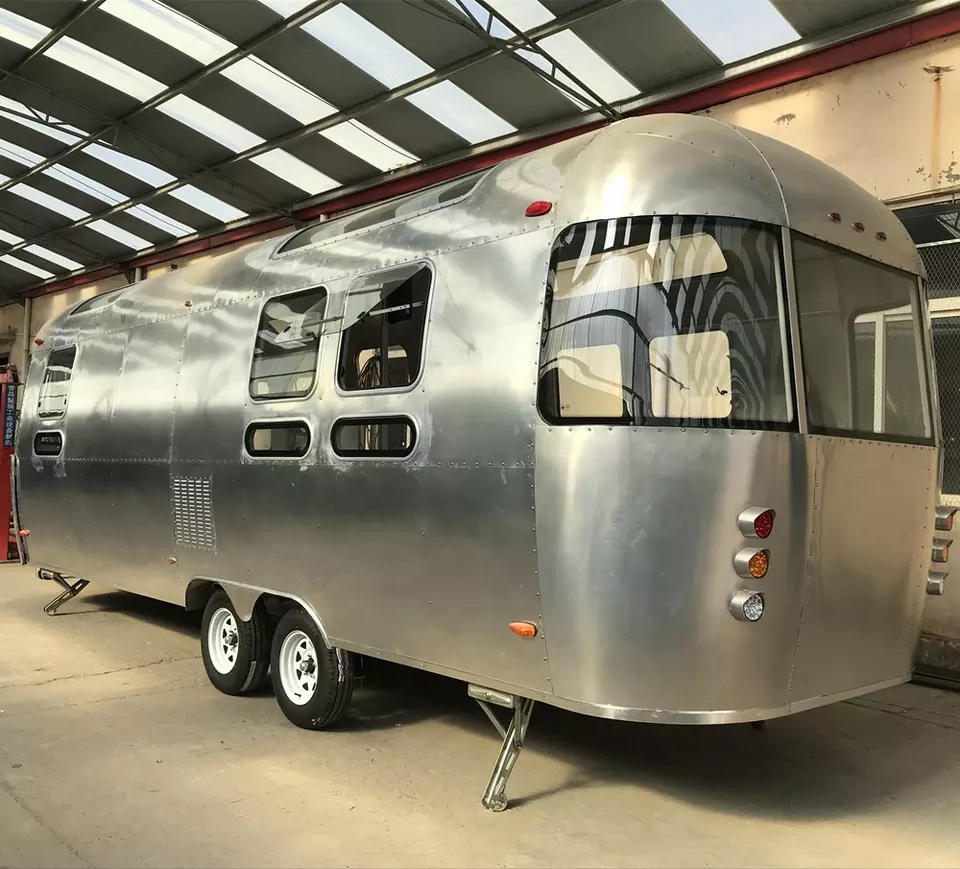

Camper Trailer
-
Function:
-
Outdoor Camping
-
Color:
-
Customised
-
Keywords:
-
Modular Travel Trailer Home
-
Feature:
-
Light Weight
-
Body material:
-
Aluminium Alloy Frames
-
Name:
-
Off-road Camping RV Trailers
-
Bed:
-
Lift-slide Spring Mattress Bed
-
Material:
-
Aluminium Frame
-
Usage:
-
Mobile Travel Home
Quick Details
-
Max Payload:
-
3600kgs
-
Size:
-
6500*2000*2650 mm (accept Customized)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MAXLINE
-
Product name:
-
Camper Trailer
-
Function:
-
Outdoor Camping
-
Color:
-
Customised
-
Keywords:
-
Modular Travel Trailer Home
-
Feature:
-
Light Weight
-
Body material:
-
Aluminium Alloy Frames
-
Name:
-
Off-road Camping RV Trailers
-
Bed:
-
Lift-slide Spring Mattress Bed
-
Material:
-
Aluminium Frame
-
Usage:
-
Mobile Travel Home
|
Item |
Configuration |
Optional customized part |
|
Body Structure |
Exterior wall is 304 stainless steel with double steel plate, middle is thermal insulation board with 5cm thickness, internal wall is also stainless steel. Total thickness is 6cm |
We can customize the internal wall to 304 stainless steel according to your requirement |
|
Lights |
LED lights inside. Automobile tail lights |
Optional small LED lights on selling window roof |
|
Floor |
Bottom-S2.5 cooling plate; Middle-plastic plate; Top-Embossed non slip aluminum sheet. |
|
|
Chassis |
40*80*5mm thickness galvanized steel frame construction and suspension components treated with anti-rust coating |
|
|
Wheels |
Double axles with four wheels, one wheel can load 900kg, 4 wheels can load 3.6 tons |
|
|
Tow bar |
Australia standard tow bar with tail lights connector |
Optional Germany standard tow bar with hand brake system |
|
Brake system |
Hand brake system or electromagnetic brake system with collision brake system |
|
|
Power socket |
Outsource water proof power socket |
|
|
Wash basin system |
304 stainless steel water sink(400*400mm), faucet, DC 12V water pump, clean water tank(200L),waste water tank(100L). |
We can customize the US standard water sink of 3 sinks and 1 separate water sink with one drain board and one dam board |
|
Work bench |
304 stainless steel double layer work bench with underneath cabinets with doors |
We can customize and design the inside work bench size according to your demand |
|
Electric system |
Lighting device, distribution box, leakage protection, air switch, circuit route, outlet. |
|
|
Color and logo, window and door |
Original color mirror stainless steel color, gold, blue,yellow, red, green, white, black, etc.(accept customized) 2 or 1 side selling window and 1 back door or side door (detail accept customized) |
We can customize the body color, size,logo, lighting, kitchen equipment, air conditioner,window and door etc.according to your requirement |
