Quick Details
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AutoCare
-
Model Number:
-
AC-6900
-
Warranty:
-
18 months
-
Product name:
-
Spray Booth
-
Name:
-
Used Car Paint Spray Booth for Sale AC-6900 with CE Approved
-
Usage:
-
Car Painting and Baking
-
Apply for:
-
Car 4S Station, Auto Body Shop
-
Heating System:
-
Diesel Heating
-
Lighting System:
-
LED
-
Environmental certificate:
-
CE
-
Color:
-
Blue/White/Orange or Client's Requirment
-
Installation:
-
CD and Drawing
Quick Details
-
Power:
-
16KW
-
External Size:
-
7050*5200*3600mm
-
Internal Size:
-
6900*3900*2650 Mm
-
Voltage:
-
380v/3phase/50hz
-
Disc Dia.:
-
Non
-
No Load Speed:
-
0.25-0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AutoCare
-
Model Number:
-
AC-6900
-
Warranty:
-
18 months
-
Product name:
-
Spray Booth
-
Name:
-
Used Car Paint Spray Booth for Sale AC-6900 with CE Approved
-
Usage:
-
Car Painting and Baking
-
Apply for:
-
Car 4S Station, Auto Body Shop
-
Heating System:
-
Diesel Heating
-
Lighting System:
-
LED
-
Environmental certificate:
-
CE
-
Color:
-
Blue/White/Orange or Client's Requirment
-
Installation:
-
CD and Drawing

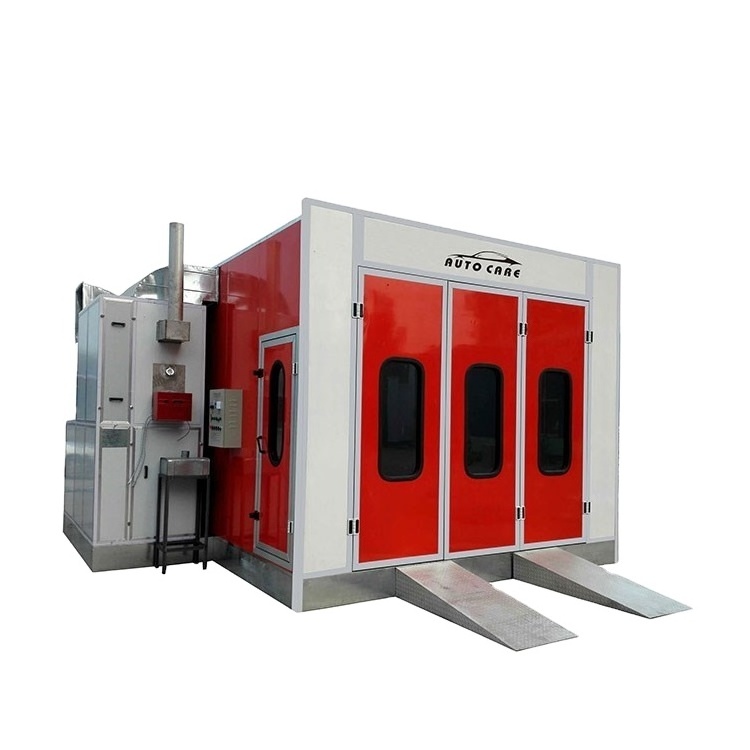

CE Approved Used Car Paint Spray Booth for Sale AC-6900
What is the Details of our Spray Booth?
| SPECIFICATIONS For AC-6900 Spray Booth | |||
| Dimensions | Length (mm) | Width (mm) | Height (mm) |
| Booth Outside | 7,050 | 5,200 | 3,600 |
| Booth Inside | 6,900 | 3,900 | 2,650 |
| Entrance Door | 3 folds,size is 3,000×2,700mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Lock | ||
| Personnal Door | Size: 800×2,000mm(W×H),with tempered glass embedded into square frame made of color steel.Equipped with Handle & Anti-Explosion Lock | ||
| Walls Panel | 75mm thick and 1,000mm wide,insulation is EPS and covered by 0.476mm thick of color steel on both side.Tongue and groove interlock structure, two sides covered by steel. | ||
| Basement System | Grid Plates (Galvanized)* 2rows, made of 30x4mm flat bar | ||
| Diamond Plates (Powder Coated or Galvanized)* 3rows | |||
| 2 ramps,each size 800x2,000mm(WxL) | |||
| Heating System | Diesel Burner*1unit (Italy RIELLO, G20) heating capacity is 200,000Kcal/H | ||
| Heating Exchanger*1unit 200kw, made of 1.5mm stainless steel SUS304 | |||
| Cabinet*1unit,rock-wool insulation. Cabinet Frame is made of 1.5mm thick bended galvanised steel, three way connector made of alluminium alloy. | |||
| Filter System | Primary Filter* 1set, filtering rate > 83% | ||
| Air-Intake Filter* 1set, filtering rate > 97% | |||
| Air-Exhaust Filter(paint-stop filter)* 1set, filtering rate > 70% | |||
| Air System | Air-Intake Fans* 2units, Centrifugal Fans with 4 KW motor each | ||
| Air-Exhaust Fan* 1unit, Centrifugal Fans with 5.5 KW motor | |||
| Belimo NMU230 20NM electric damper | |||
| Cabinet for the fans* 1unit, and Air Ducts* 3pcs, and Air Damper (electric)* 1unit | |||
| Illumination | Ceiling Lights * 32pcs, 20w LED lamp, with Light Fixtures, anti-explosion design | ||
| Side Lights * 32pcs,20w LED lamp, with Light Fixtures, anti-explosion design | |||
| Control Panel | *1unit,Button type control box, with main switch, and set with normal temperature spraying, constant temperature spraying, baking switch, lighting switch, temperature time setting, emergency stop, failure alarm, time accumulator etc. | ||
| Included | All Hardware, Fasteners, and Sealants, Installation CD Video, and Drawing. | ||
Product Picture
Product Pictures
Product Features
WHY CHOOSE US
Autocare spray booths come in a variety of sizes that are custom to your needs. Our experienced industrial designers and engineers are constantly innovating the way we see the spraying industry every day. We always challenge ourselves through innovation to be the leaders in this fast growing industry. Our primary objective when creating quality auto spray booths and equipment is to provide the operator ease of operation and efficiency. Our design and production will help expedite the overall process, saving a large amount of time and money.
Related Items
RELATED ITEMS
PACKING AND SHIPPING
| Packaging | Photos showed of spray booth as below |
| Gross weight | 2500 KGS |
| Container | 1 sets can be loaded one 20' container, 3 sets can be loaded in a 40'H container. |
| MOQ | 1 set of Spray Booth |
FAQ
FAQ
- Q Are you Manufacturer or Trading company?
- A We are a professional manufacturer with our own sales team, possess the experience of auto repair field for 6 years.
- Q Where is your company located? How can I visit there?
- A Our company is located in Yantai.All clients, from home and abroad, are warmly welcomed to visit us.
- Q How about the quality of the products?
- A With the advanced machines, strong and professional R&D team and material sources,
- Q Can we customize our product?
-
A
Yes,you can.Customized material and standard are acceptable. We can provide different standards according to your market and favor
.
- Q What’s the MOQ for each items?
- A We accept 1 set of each machine once time.
- Q How about the quality guarantee period?
- A One year!
- Q What’s the delivery time?
- A When order confirmed, the machine with our standard configurations, it’s 7-15 workdays.
