Quick Details
-
Brand Name:
-
HBXG
-
Dimension(Long * Breadth * High):
-
5677*3500*3402mm
-
Product name:
-
230HP New Bulldozer Price HBXG SD7 Crawler Bulldozer for sale
-
Color:
-
Original Color
-
Type:
-
Bullldozer
-
Operating weight:
-
23800kg
-
Certificate:
-
ISO9001
-
Min. groundance:
-
404mm
-
Blade width:
-
3500mm
-
Max. digging depth:
-
498mm
-
Width of shoe:
-
560mm
-
Max.torque:
-
1097/1500N.m/rpm
Quick Details
-
Machine Weight:
-
23800 KG
-
Dozing Capacity:
-
8.4(m3)
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HBXG
-
Dimension(Long * Breadth * High):
-
5677*3500*3402mm
-
Product name:
-
230HP New Bulldozer Price HBXG SD7 Crawler Bulldozer for sale
-
Color:
-
Original Color
-
Type:
-
Bullldozer
-
Operating weight:
-
23800kg
-
Certificate:
-
ISO9001
-
Min. groundance:
-
404mm
-
Blade width:
-
3500mm
-
Max. digging depth:
-
498mm
-
Width of shoe:
-
560mm
-
Max.torque:
-
1097/1500N.m/rpm

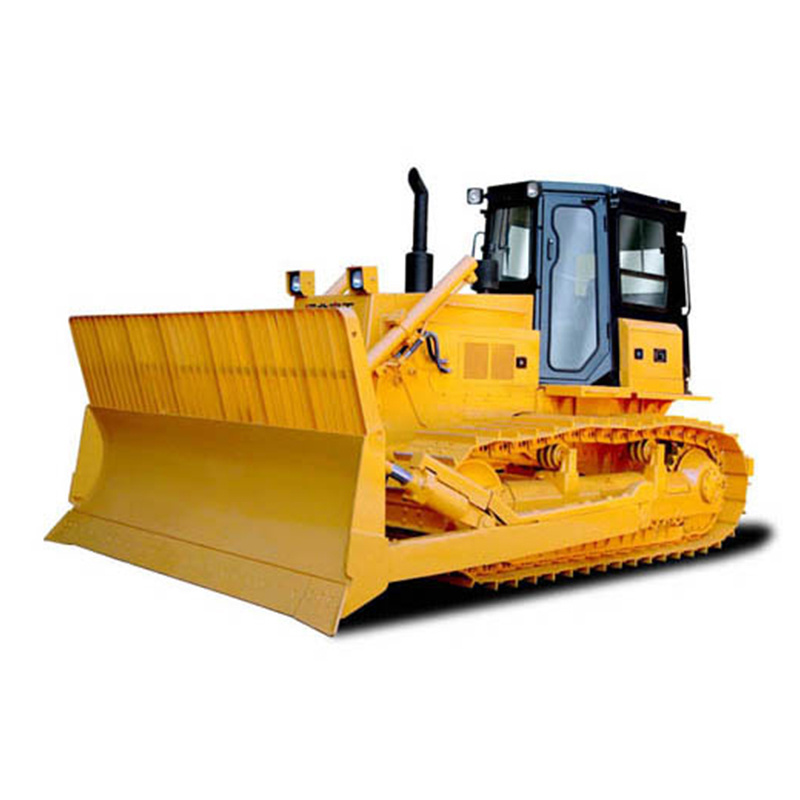

230HP New Bulldozer Price HBXG SD7 Crawler Bulldozer for sale
SD7 bulldozer is 230 horsepower track-type dozer with elevated sprocket, power shift drive, semi-rigid suspended and hydraulic controls.
SD7-230 horsepower, elevated sprocket bulldozer integrate with modular design is easy to repair & maintenance, It relieves oil with difference pressure, the hydraulic system performs protecting environment and save energy with high working efficiency. Safety comfortable operation condition, electric monitoring and ROPS cabin with reliable entire quality, excellent service is your wise choosing.
It can be equipped with straight tilting blade, angle blade, coal pushing blade, U shape blade; single shank ripper, three shanks ripper; ROPS, FOPS, forest defence cabin etc.. It is can ideal machine New in communication, oil field, power, mining etc. large earth moving program.
|
Blade |
Straight and Tilting |
|
Operation weight:(kg) |
23800(without ripper) |
|
Ground pressure:(kpa) |
71.9 |
|
Track gauge(mm) |
1980 |
|
Min. ground clearance: (mm) |
404 |
|
Gradient: |
30°/25° |
|
Dozing capacity:(m3) |
8.4 |
|
Blade width: (mm) |
3500 |
|
Max. digging depth: (mm) |
498 |
|
Overall dimensions:(L×W×H) (mm) |
5677×3500×3402 |
2,Undercarriage System
|
Type: |
The track is triangle shape, the sprocket is elevated elastic suspended. |
|
Number of track rollers(each side) |
7 |
|
Pitch (mm) |
216 |
|
Width of shoe (mm) |
560 |
3,Gear
|
|
1st |
2nd |
3rd |
|
Forward (Km/h) |
0-3.9 |
0-6.5 |
0-10.9 |
|
Backward (Km/h) |
0-4.8 |
0-8.2 |
0-13.2 |
4,Engine
|
Engine Name: |
NTA855-C280S10 |
|
Rated revolution:(rpm) |
2100 |
|
Flywheel power:(kw) |
169 |
|
Max.torque:(N.m/rpm) |
1097/1500 |
|
Rated fuel consumption:(g/kw.h) |
≤235 |
5,Implement Hydraulic System
|
Max. system pressure:(Mpa) |
18.6 |
|
System output:(L/min) |
194 |
|
Pump type: |
Gears oil pump |
