Quick Details
-
Network:
-
for forklift
-
Usage:
-
folklift anti collision
-
Accuracy:
-
10cm
-
Housing material:
-
ABS plastic
-
Protect level:
-
IP65
-
Working Temperature:
-
-20~50℃
-
Effective alarm range:
-
0.5~30m
-
Tags restriction:
-
30 tags. max for 1 syetem
-
Voltage:
-
24~48V
-
Application:
-
folklift ,cargo machine ,loading truck
-
Warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CareDrive
-
Model Number:
-
UA350
-
Network:
-
for forklift
-
Usage:
-
folklift anti collision
-
Accuracy:
-
10cm
-
Housing material:
-
ABS plastic
-
Protect level:
-
IP65
-
Working Temperature:
-
-20~50℃
-
Effective alarm range:
-
0.5~30m
-
Tags restriction:
-
30 tags. max for 1 syetem
-
Voltage:
-
24~48V
-
Application:
-
folklift ,cargo machine ,loading truck
-
Warranty:
-
2 years
Forklift Safety Devices Proximity Warning Alarm System
CareDrive forklift proximity warning and pedestrian detection system uses the latest technology to significantly reduce the risk of collision between moving vehicles and pedestrians in the workplace.
The system sets up an invisible exclusion zone around the vehicle, providing an audible (siren followed by “Look Out! Person near you”) and visual warning alert to the operator when someone is detected within the programmable zone and vibration alert for pedestrian. This creates an opportunity for the driver and pedestrian to take appropriate action to avoid an incident. The detection precision is under 0.1m and the trigger distance can be set from 0.5m-32m .

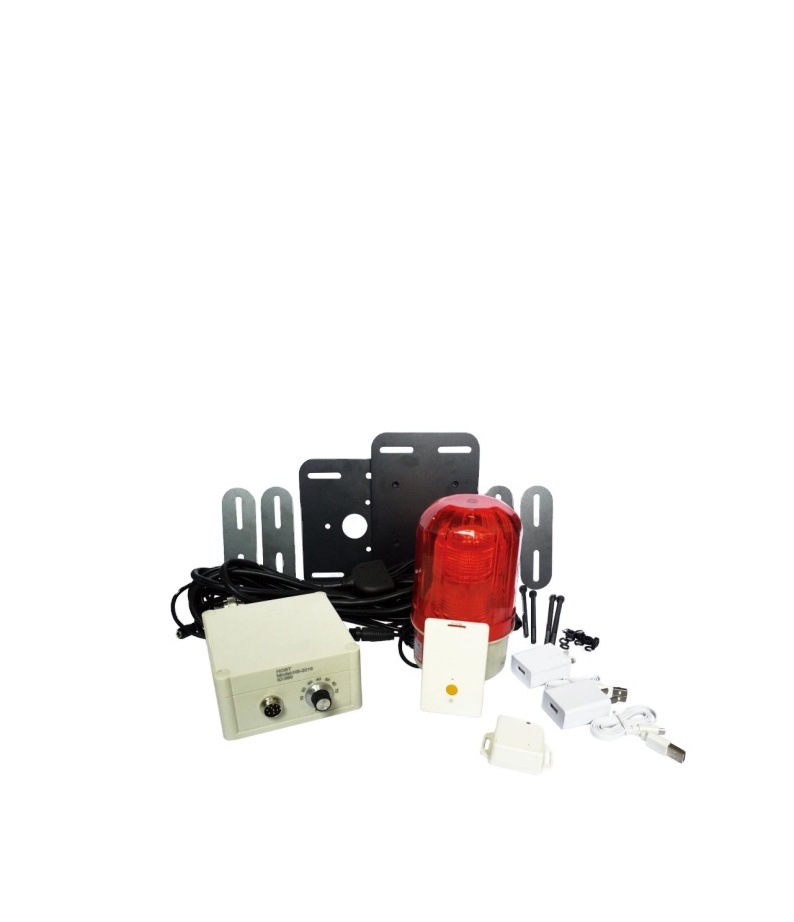

Product compose
Host, which will be mounted on the forklift.
l Tag, which will be carried by workers / pedestrians.
l Alarm, which alerts the workers to keep away.
l Wire, which connects separated parts of the system.
Feature
(1) High ranging precision, up to 10cm;
(2) Fast response to time, Less than 400ms;
(3) Ultra Wide Power Supply Range, from 12VDC~48VDC;
(4) Modular anti-stay Design, easy for installation;
(5) Adjustable exclusion zone radius, from 0.5m to 32m;
(6) Two configuration Methods, flexible for different application.
(7) 360° detection around the vehicle, no blind zone left.
Uses the latest technology to significantly reduce the risk of collision between moving vehicles and pedestrians in the workplace.
The system sets up an invisible exclusion zone around the vehicle, providing an audible (siren followed by “Look Out! Person near you”) and visual warning alert to the operator when someone is detected within the programmable zone and vibration alert for pedestrian.
This creates an opportunity for the driver and pedestrian to take appropriate action to avoid an incident.
The detection precision is under 0.1m and the trigger distance can be set from 0.5m-32m.
|
Host |
|
|
Rated Voltage |
12V – 48VDC |
|
Dimension /Weight |
120 x 120 x 61(mm) / 270g |
|
Working Temperature |
0 ° to 6 0° Centigrade |
|
Frequency &Range |
UWB(Ultra-Wide Band) 3.5G-6.5Ghz; No License Fees Required |
|
Range: 10-70feet |
|
|
Tags Limit |
Maxima Tags Detecting:30 |
|
Antenna |
Built-in |
|
Shell Enclosure |
ABS, Water proof, with metal base |
|
Mounting |
Horizontally mounted to the outside top of the forklift using cable tie provided. |
