Quick Details
-
Model Number:
-
WN-S
-
Liquid Flow Rate:
-
1.5~10
-
Maximum Working Pressure:
-
1Mpa
Quick Details
-
Structure:
-
Tube Heat Exchanger
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
weinuo
-
Model Number:
-
WN-S
-
Liquid Flow Rate:
-
1.5~10
-
Maximum Working Pressure:
-
1Mpa
Introduce:

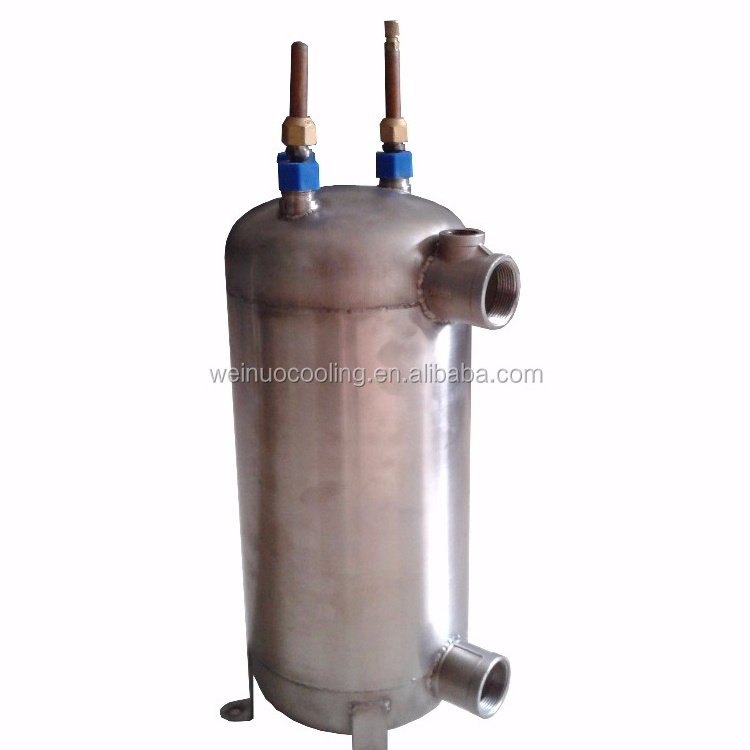

The heat exchangers are made of 316L or 304 stainless steel outside case and titanium tube they passed the pressure test of 3.5Mpa and leak testing.
Outward can be made of 3 kinds of material: PVC-U or PP-R, stainless steel and so on. They are all compliant the environmental protection, with acid-resistant, corrosion –resistant.
Feature:
Made by top 316L, 304 stainless steel tube, with good acid resistance ability.
Compact design, with high heat transfer capacity.
Working temperature: 0°C~50°C
Range from 0.5hp~60hp
Pass two times pressure testing and leakage testing.
Can produce base on your design and requiremen.
Technical data:
|
Model |
Heating capacity |
Water flow rate |
Tube Diameter |
Water Connection |
Refrigerant In/Out |
|
|
|
KW |
Btu |
M3/h |
mm |
mm |
mm |
|
WN-S0.5P |
2.5 |
8500 |
1 |
12.7*4000 |
50 |
12.7/12.7 |
|
WN-S1P |
3.5 |
12000 |
1.5 |
12.7*5000 |
50 |
12.7/12.7 |
|
WN-S1.5P |
5 |
17000 |
2.2 |
12.7*7000 |
50 |
12.7/12.7 |
|
WN-S2P |
7 |
24000 |
3.0 |
12.7*9000 |
50 |
12.7/12.7 |
|
WN-S3P |
10.5 |
36000 |
4.5 |
12.7*13500 |
50 |
12.7/12.7 |
|
WN-S5P |
17 |
58000 |
7.5 |
12.7*20000 |
50 |
12.7/12.7 |
|
WN-S7P |
23 |
78000 |
10.5 |
16*23000 |
50 |
12.7/12.7 |
|
WNF-S10P |
33 |
110000 |
15 |
2-12.7*20500 |
50 |
12.7/12.7 |
|
WN-S12P |
39 |
120000 |
18 |
2-12.7*0.6*25000 |
50 |
12.7/12.7 |
|
WN-S15P |
47 |
160000 |
22.5 |
2-16*0.6*25000 |
50 |
12.7/12.7 |
