Quick Details
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESKO
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product Name:
-

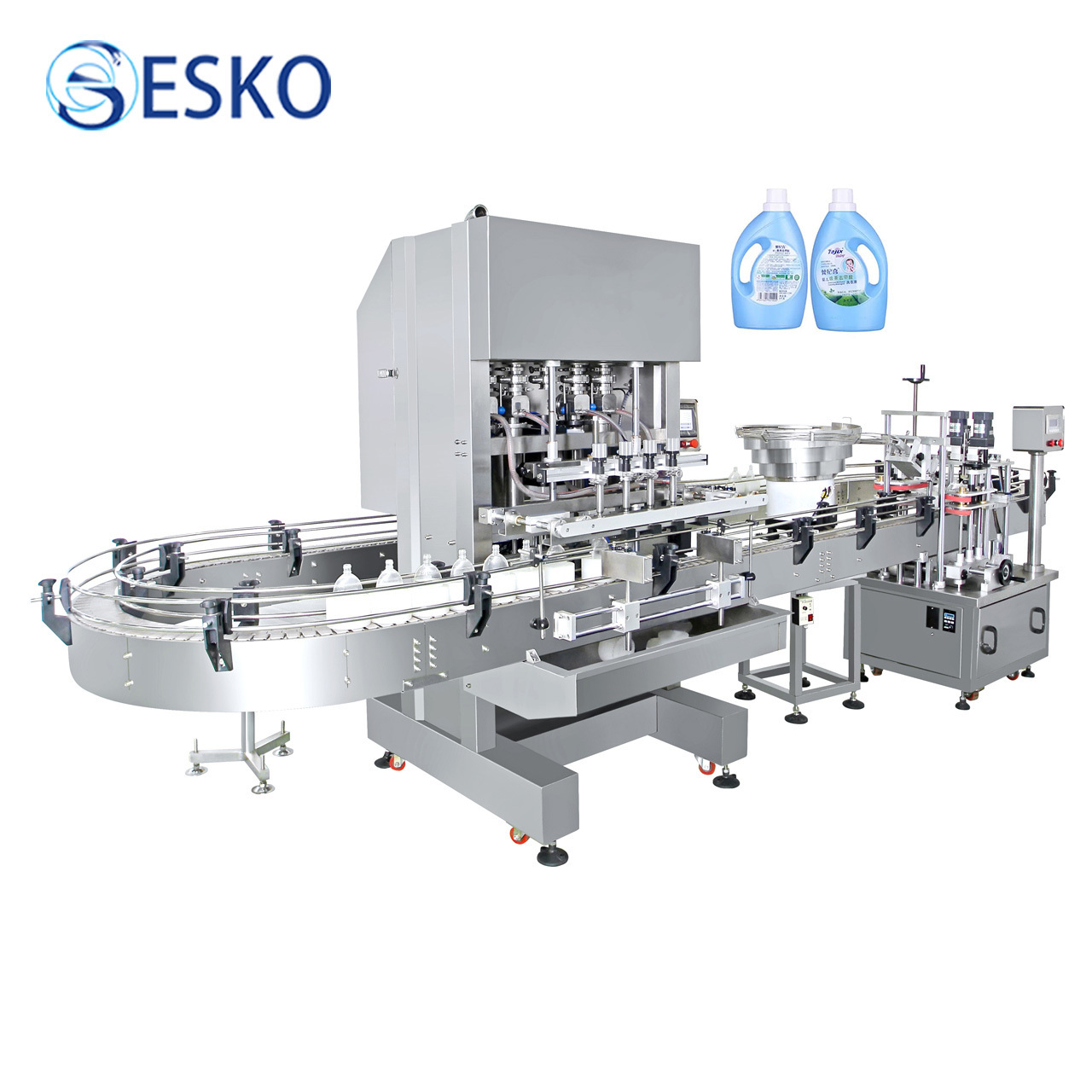

Filling / Capping / Labeling Line
-
Filling Volume:
-
5ml-5000ml
-
Bottle Type:
-
Round, Falt, Oval, Irregular shape bottle, jar
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Certification:
-
CE ISO9001
-
Operation Instruction Video:
-
Provided
-
Service:
-
Oversea On-site installation service available
-
After Warranty Service:
-
Lifetime Maintenance
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 500BPH, 2000BPH, 200BPH
-
Packaging Material:
-
Plastic, Metal, Glass
-
Filling Material:
-
Water, Oil, Juice, Powder, Cream, Perfume
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V / 380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ESKO
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
500 KG
-
Product Name:
-
Filling / Capping / Labeling Line
-
Filling Volume:
-
5ml-5000ml
-
Bottle Type:
-
Round, Falt, Oval, Irregular shape bottle, jar
-
Material:
-
Stainless Steel 304/316
-
Control:
-
PLC+ Touch Screen
-
Certification:
-
CE ISO9001
-
Operation Instruction Video:
-
Provided
-
Service:
-
Oversea On-site installation service available
-
After Warranty Service:
-
Lifetime Maintenance
Products Description
|
Filling Nozzle
|
1 Nozzle
|
2 Nozzle
|
4 Nozzle
|
6 Nozzle
|
8 Nozzle
|
10 Nozzle
|
12 Nozzle
|
||||||
|
Filling Speed
|
10-25/min
|
15-30/min
|
25-35/min
|
35-45/min
|
50-60/min
|
60-70/min
|
70-80/min
|
||||||
|
Filling Volume
|
5-150ml / 10-250ml / 30-500ml / 50-1000ml / 250-2500ml / 300-3000ml / 500-5000ml
|
|
|
|
|
|
|
||||||
|
Main Parts
|
Siemens PLC, Panasonic Servo Motor, Schneider Electronic, Festo/AirTAC pneumatic component, etc.
|
|
|
|
|
|
|
||||||
|
Remark
|
The filling design/speed is customized according to client's product and requirement,
click here to send us your requirement :)
|
|
|
|
|
|
|
||||||
Application Product
Details Images
Anti-Foaming Filling Nozzle
With servo motor diving filling system to achieve the defoaming filling function, and anti-dripping with mechanical cutting and air blowing design to avoid dripping or leakage.
This design enable the machine to fill thick, thin, easy foaming and many kinds of products.
High Precision Piston
Each stainless steel piston is polished from inside and outside, and 3mm thicker than regular piston.
Such a workmanship will increase the cost, but the filling precision will become higher, service life longer, what's more, less maintenance to do.
Diversified Air Cylinder Design
Latest cylinder design to achieve Staggered Filling Function, it makes the filling speed 1.5 times faster than traditional design.
All air cylinder will be adopted with international brand, such as Festo, AirTAC.
Siemens PLC Touch Screen Smart Control
The filling speed and volume of each nozzle can be adjusted on the screen independently. For filling different products we can save the parameter in the screen as recipe, and one-button start when changing different packaging or products.
Servo Motor Control
Servo motor control makes the filling precision better, and diving filling system more smooth.
Also it would be much more convenient to change filling volume and height of filling nozzle.
Liquid Level Sensor
The sensor is installed in the hopper, it can be connecting with your material storage tank and pump to achieve Automatic Feeding System.
It activates your pump to feed/stop material automatically when hopper is getting empty/full.
Electrical Cabinet
All the main parts of the machine will be adopted with international brand, such as Siemens, Schneider, Sick, Panasonic, etc.
Long service life, easier to maintain and replace.
Automatic Cap Loader + Automatic Capping Machine
Can be adopted with different kind of cap loader for your packaging, such as flip-top cap, pump, sprayer, regular threaded cap, etc.
And multiple choices of capping design for different packaging and speed requirement.
4 Head Belt Type Capping Machine
Generally using for regular sizes bottle or jar, speed 30-50pcs/min.
8 Head High Speed Capping Machine
Designed for high productivity demand, speed can reach to 60-100pcs/min.
4 Head Cylinder Capping Machine
Designed for small packages, such as 5ml
vial or jar.
Threaded Cap / Flip Top Cap Loader
Automatic cap loading system for
Threaded Cap / Flip Top Cap Loader.
Pump / Sprayer Cap Loader
Automatic cap loading system, with a
mechanical gripper to feed
Pump / Sprayer Cap automatically.
Main Component
Complete Production Line
Recommend Products
Purchse & Production Process
Project Reference
Buyer's Comment
FAQ
Q: Are you a manufacturer / factory?
A: Yes we are a manufacturer with more than 15 years manufacturing experience in machinery.
Q: I am planning to set up a factory, but i am a green hand, could you help me with that?
A: Sure! We've been helping dozens of client to set up their new factory, generally will offer you a suitable design based on your actual situation, such as your daily production, raw material formula, factory layout, etc. What's more, we can help you to find reliable raw material and packaging supplier in China. After you received our machines, we could send our technician to your factory for installation and training your people.
Q: How long is your warranty? After warranty, what do we do if the machine breaks down?
A: Our warranty is two years, and lifelong maintenance is provided. After warranty we could still offer you online or on-site service.
Q: How do you control or test the quality before shipment?
A: Firstly, our accessories/parts supplier will test their products before they ship to us. After the machines are finished, our Quality Inspectors and Technical Team will test and run each machine, and make a testing video for our client. We'd also like to invite you come to our factory to verify machines yourself.
Q: Are the machines difficult to operate? How can we learn it?
A: Our machines are adopted with PLC smart screen control, very easy to operate. Also, we will make an operation instruction video and send it to our client before shipment, and send our technician to client's factory for trainning if needed. Moreover, we have 24 hours online service, we could have video call with you anytime to answer your questions or providing you operation guidance.
Q: Could i visit your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
Q: Could you make the machine according to buyer's requirement?
A: Yes, OEM is acceptable. Most of our machines are customized according to customer's need.
