Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
- Product Details
- {{item.text}}
Quick Details
-
Marketing Type:
-
New Product 2022
-
Application:
-
Cold rolling
-
After Warranty Service:
-
1 Year
-
Steel strip material:
-
Q235A or Q345A
-
Steel strip thickness:
-
2 mm -6mm
-
Steel strip width:
-
30 mm-120mm
-
Spiral blade inner diameter:
-
25-110 mm
-
Roller working speed:
-
6 turns/min
-
Motor power:
-
26.5KW
-
Weight:
-
6.7t
-
Product name:
-
Spiral Screw Blade Cold Rolling Machine For Conveyor
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
bobo
-
Weight (KG):
-
9000
-
Marketing Type:
-
New Product 2022
-
Application:
-
Cold rolling
-
After Warranty Service:
-
1 Year
-
Steel strip material:
-
Q235A or Q345A
-
Steel strip thickness:
-
2 mm -6mm
-
Steel strip width:
-
30 mm-120mm
-
Spiral blade inner diameter:
-
25-110 mm
-
Roller working speed:
-
6 turns/min
-
Motor power:
-
26.5KW
-
Weight:
-
6.7t
-
Product name:
-
Spiral Screw Blade Cold Rolling Machine For Conveyor

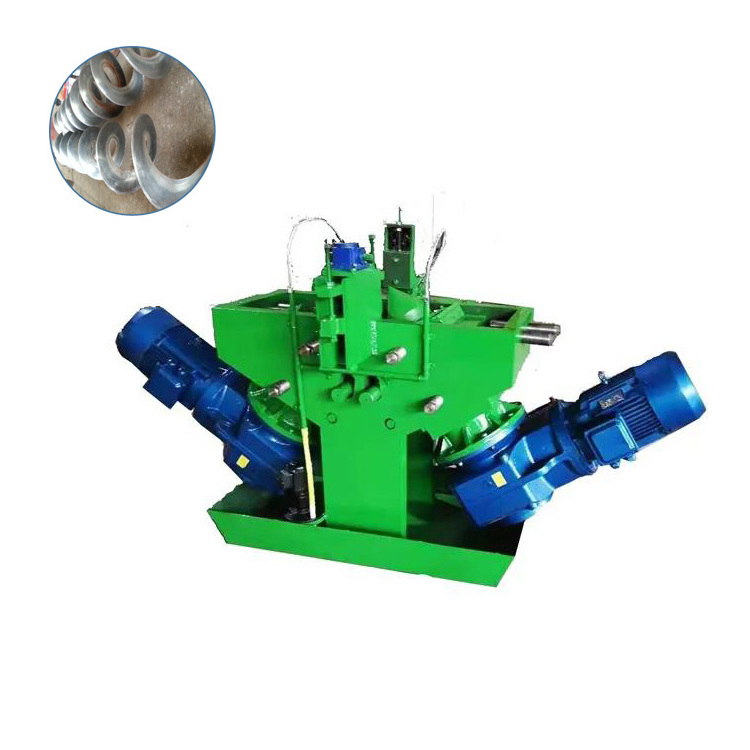

Continuous Spiral Screw Blade Auger Flight Cold Rolling Forming Machine For Conveyor
★ Description
The spiral blade cold rolling mill is a special cold rolling machine for continuous rolling of spiral blades from coiled strip steel. It can roll the required blades of various specifications by adjusting the adjustment parts (roll offset, feeding height, rolling pressure, guide wheel, etc.).
The continuous forming spiral blade cold rolling machine is designed with conical rolls, the strip steel can be cold rolled through the rolls to produce continuous spiral blades, replacing the traditional cold drawing forming process. The machine has the advantages of high production efficiency, saving raw materials, small deviation of pitch size, one time forming, high hardness, smooth surface, continuous without welding seam, etc.
The spiral blade is suitable for various industries such as mining, chemical industry, agriculture, environmental protection and construction pile engineering, etc. It can process spiral conveying blade, spiral mixing blade, garden trenching spiral spiral blade, ground pile drilling spiral, etc.
★ Details
★ Application
1. Spiral blade cold rollers are suitable for agricultural machinery parts, harvesting machines, bagging machines.
2. Spiral blade cold rollers are applied to spiral flights of concrete mixing machinery.
3. Spiral vane cold rollers are used in spiral flights for food processing machinery.
4. Spiral vane cold rollers are applied to blowers and lifts.
5. Spiral vane cold rollers are applied to shaftless screw conveyors, etc.
★ Processing Effect Display
★ Parameter Main Data
|
NO.
|
Item
|
Parameter
|
|
|
||
|
1
|
Model
|
BB-270
|
BB-350
|
BB-400
|
||
|
2
|
Working mode
|
Mechanical
|
Mechanical
|
Hydraulic
|
||
|
3
|
The thickness of rolled strip
|
2-5mm
|
2-6mm
|
2-8mm
|
||
|
4
|
The width of the strip rolling
|
≤90mm
|
≤130mm
|
≤150mm
|
||
|
5
|
ID
|
25-90mm
|
25-110mm
|
30-110mm
|
||
|
6
|
OD
|
90-270mm
|
90-350mm
|
90-400mm
|
||
|
7
|
Pitch of screw thread
|
80-230mm
|
80-300mm
|
80-350mm
|
||
|
8
|
Rolled speed
|
1-6r/min
|
1-6r/min
|
1-6r/min
|
||
|
9
|
Main motor working speed
|
1440r/min
|
1440r/min
|
980r/min
|
||
|
10
|
Main power
|
26.5kw
|
26.5kw
|
34kw
|
||
|
11
|
Gross weight
|
6t
|
6.7t
|
9t
|
||
Packaging:
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
