Quick Details
-
Name of tool holders:
-

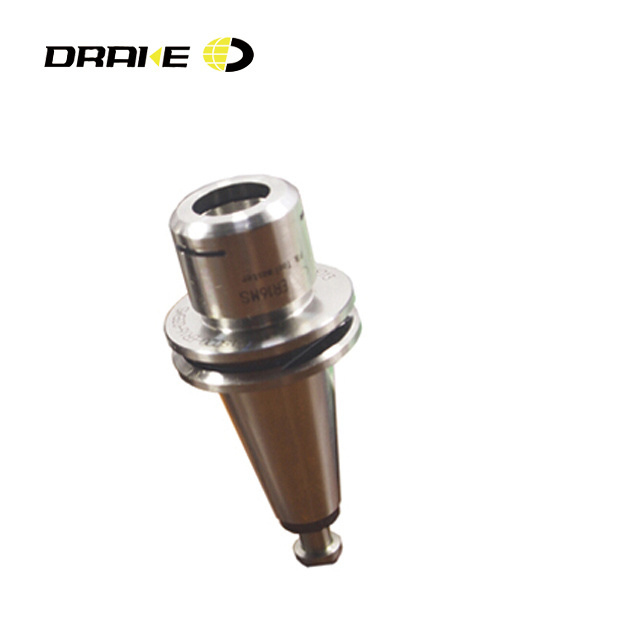

cnc milling machine toolholder iso 10 15 20 25 30 50 tool holder
-
Dynamic balance of toold holders:
-
G2.5 30000rpm of tool holders
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Drake
-
Model Number:
-
ISO25-SK10-40MS
-
Name of tool holders:
-
cnc milling machine toolholder iso 10 15 20 25 30 50 tool holder
-
Dynamic balance of toold holders:
-
G2.5 30000rpm of tool holders
cnc milling machine toolholder iso 10 15 20 25 30 50 tool holder
BBT Advantage
1.Application :Drilling Milling Engraving.
2.The balancing grade reaches the revoluting of G2.5 30000rpm.
Specification:
| Type | Range ¢d | D | Collet | Nut |
| ISO20-SK10-35MS | 2~10 | 27 | SK10 | SK10-HS |
| ISO25-SK10-40MS | ||||
| ISO30-SK10-60MS | ||||
| ISO30-SK10-85MS | ||||
| ISO30-SK16-60MS | 3~16 | 40 | SK16 | SK16-HS |
| ISO15-ER11A-35MS | 1~7 | 19 | ER11 | ER11 |
| ISO20-ER16M-35MS | 1~10 | 22 | ER16 | ER16-M |
| ISO20-ER20-35MS | 1~13 | 28 | ER20 | ER20-M |
| ISO25-ER20-35MS | ||||
| ISO30-ER25-60MS | 2~16 | 42 | ER25 | ER25-UM |
| ISO30-ER32-60MS | 3~20 | 50 | ER32 | ER32-UM |
| ISO30-ER32-80MS |
SK Collet Features
·Precision:5μ(4D length).
·It is used for the cutting tools like drills,mills and reamers.
·Holds under duress the shank of tool diameter common difference to define in h7.
·When internal hole size under 3mm,the clamping capacity is 0.25mm.
·When internal hole size more than 3mm,the clamping capacity is 0.5mm.
Specification:
| Type | Range | D | L |
| SK6 | 2-6 | 10.55 | 25 |
| SK10 | 2-10 | 15.6 | 30 |
| SK13 | 3-13 | 20.00 | 39 |
| SK16 | 3-16 | 24.6 | 45 |
| SK20 | 4-20 | 29 | 54 |
| SK25 | 6-25 | 35.6 | 57 |
