Quick Details
-
Model Number:
-
DHC15A
-
Max. Current:
-
16A
-
Certification:
-
ROHS TUV ISO9001 CE
-
Dimension:
-
81x36x66cm
-
Time Setting Range:
-
1 Minuters~168 hours
-
Power Consumption:
-
4.5VA/7.5VA
-
Operating Temperature:
-
-10~+-50℃
-
Operating Voltage:
-
AC220V/AC110V 50HZ/60HZ
-
Accuracy:
-
≤2Seconds/day
-
Minimum Setting Unit:
-
1 Minuters
-
Working Reserve Time:
-
3 years
-
Programs:
-
32ON/OFF
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAQCN
-
Model Number:
-
DHC15A
-
Max. Current:
-
16A
-
Certification:
-
ROHS TUV ISO9001 CE
-
Dimension:
-
81x36x66cm
-
Time Setting Range:
-
1 Minuters~168 hours
-
Power Consumption:
-
4.5VA/7.5VA
-
Operating Temperature:
-
-10~+-50℃
-
Operating Voltage:
-
AC220V/AC110V 50HZ/60HZ
-
Accuracy:
-
≤2Seconds/day
-
Minimum Setting Unit:
-
1 Minuters
-
Working Reserve Time:
-
3 years
-
Programs:
-
32ON/OFF

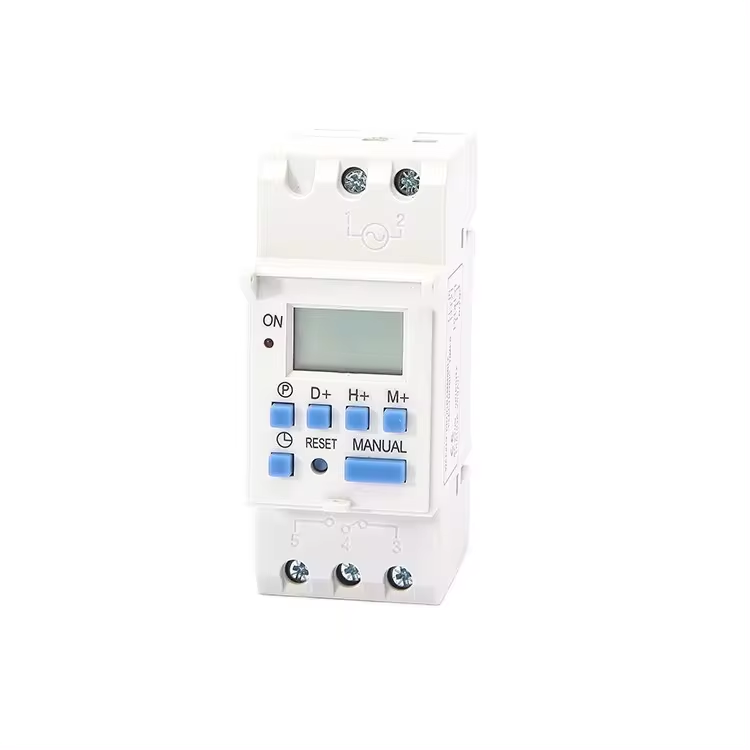

Programmable Weekly Timer
The products according to the time set by the user,automatically turn on and turn off the varity of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optimal control products,such as radio and television equipment.Lithium battery inside,high-precision,industrial-grade chips,strong anti-jamming.
Specification
| Item No. | DHC15A/DHC20A |
| Operating Voltage | AC220V/AC110V 50HZ/60HZ |
| Power Consumption | 4.5VA/7.5VA |
| Operating Temperature | -10~+-50℃ |
| Accuracy | ≤2Seconds/day |
| Minimum Setting Unit | 1 Minuters |
| Time Setting Range | 1 Minuters~168hours |
| Contact Capacity |
Lamp Load:1000W Resistive Load:16A/250VAC Lamp Load:2500W Resistive Load:20A/250VAC |
| Working Reserve Time | 3 years |
| Dimension | 81*36*66mm |
| Weight | 125g |
| Mounting | DIN rail mounting |
| Program | 32 on 32 off/18 times pulse |
Dimension Bottom View
Quality management is the wings of DAQUAN and is the primer life power of DAQCN brand. The company , which completely carries out quality management ,has passed International Quality System Attestation ISO9001 and CE.
Strict quality testing procedures ,Advanced testing equipment and highly trained quality control personnel , Guarantee Filmography "products manufactures pass rate 100%" of the quality objectives.
