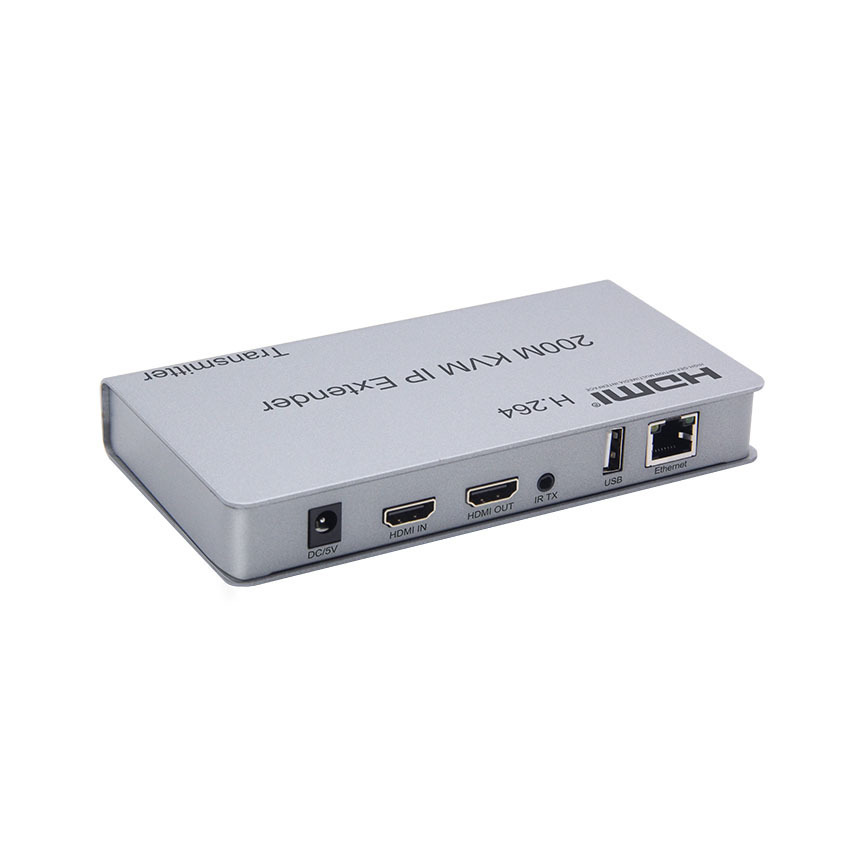

1080p HDMI KVM Extender with IR 200M Video Transmission Function HDMI Extender with USB & KVM

200M hdmi KVM extender over IP

HDMI Over Ethernet is based on TCP/IP standard. It transmit your HD display with the high resolutions up to 200 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch, providing greater flexibility and options when integrating several home theater components.

Features:

.Support HDMI 1.3 protocol
.Support full 3D 1080P and CEC
.Support point-to-point mode, one point-to-many mode and connection mode
. Support IR extender function allows IR remot control of Source devices from remote viewing location by sending IR commands received in the vicinity of the Display back to the Source devices.
. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
. No loss of quality
. Installs in minutes
. Need DC5V/1A power supply for each box

Operating and Connecting :

1.Connect one between source device and TX Extender

2.Connect one between sink device and RX Extender

3.Connect Single cat-5e or cat-6(recommended) cables up to 200 meters instead of HDMI cables between TX and RX Extender

4.Connect 5V power supply to the e xtender

SPECIFICATIONS:                                   HDES200-kvm

Physical interface diagram:

Package contents :
1)   Transmitter  1pc
2)   Receiver   1pc
2)   5V/1A Power adapters   2pcs
3)   IR cable  1pair
4)   User Manual   1pc
