Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Stanexco
-
Model Number:
-
INT13-TFA DCA
-
Contact Material:
-
Brass
-
Housing Material:
-
Brass
-
Surface Treatment:
-
chrome plated
-
Insulator Material:
-
PPS
-
Contact Type:
-
Solder
-
Contact Treatment:
-
Plated gold
-
Specification:
-
M12
-
Certificate:
-
ISO9001/CE/ROHS/TUV
-
HS Code:
-
8547901000
-
IP Degree:
-
IP50
Quick Details
-
Type:
-
circular push pull
-
Application:
-
Audio & Video
-
Gender:
-
Male and Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Stanexco
-
Model Number:
-
INT13-TFA DCA
-
Contact Material:
-
Brass
-
Housing Material:
-
Brass
-
Surface Treatment:
-
chrome plated
-
Insulator Material:
-
PPS
-
Contact Type:
-
Solder
-
Contact Treatment:
-
Plated gold
-
Specification:
-
M12
-
Certificate:
-
ISO9001/CE/ROHS/TUV
-
HS Code:
-
8547901000
-
IP Degree:
-
IP50
*Sample Free:1-2 PCS.
*Fast lead time: 3-5 work days if the QTY is under 200 PCS.
*Flexiblity payment way:T/T,PayPal,Westunion,Credit card.
*24 hours service for clients.
*Competitive price & stable production.
*Certified TUV,CE and RoHS.
*OEM/ODM/Cable Assemble.
*World-class customer service.
1.
Security of the Push-Pull self-latching system
2.Solder or print contacts (straight or elbow)
3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts
4.Polarization by stepped insert (half-moon) fitted with male and female contacts
5.360° screening for full EMC shielding.
| Number | INT13-T FA DCA |
| Size/Series | 1S (Metal) |
| Shell Style/Model |

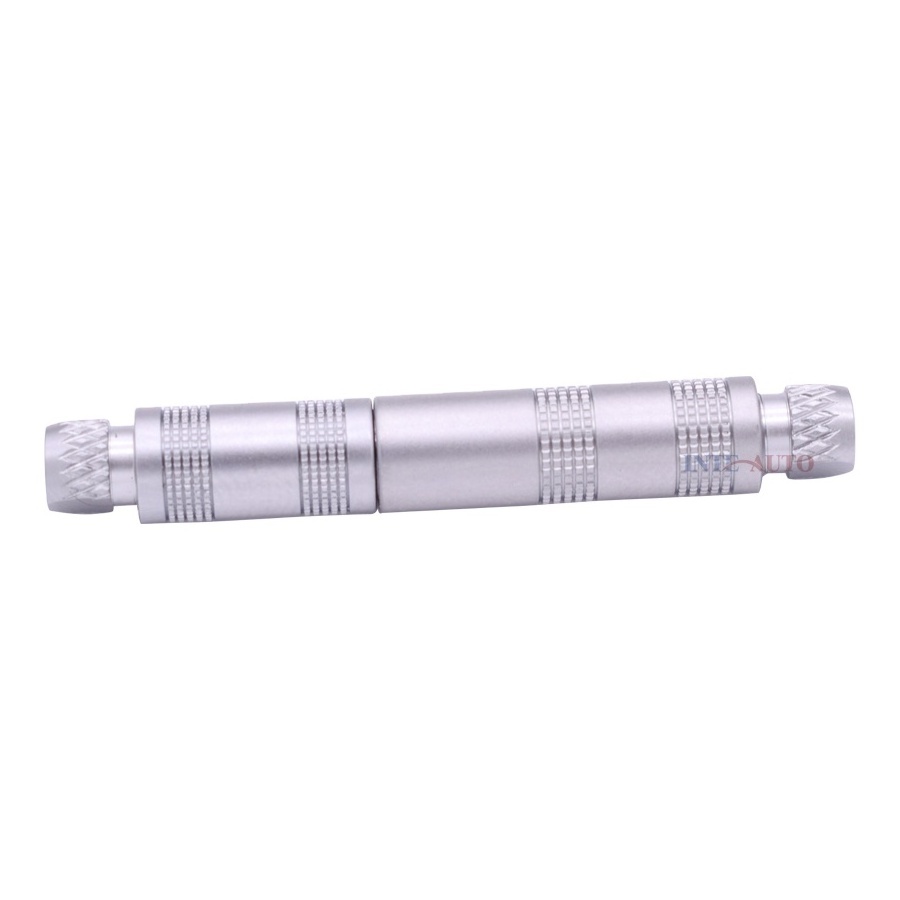

Coaxial straight plug, cable collet
Free socket, cable collet |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (pearl chrome plated) shell, collet nut, latch sleeve and mid pieces |
| Configuration | 0.25 : 1 Coax (50 Ohm) |
| Insulator | PTFE |
| Contact Type | Coaxial 50 Ohm (Printed Circuit Board) |
| Endurance (Shell) | 5000 mating cycles |
| Temp (min) | -40 deg |
| Temp (max) | 200 deg C |
| Humidity (max) | <=95% [at 60 deg C / 140 F] |
| Vibration | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] |
| Salt Spray Corrosion | >144 hr |
| IP Rating | IP50 |
Insulator specs for S series:
Prodcut Size:
( Shenzhen INTE-AUTO Technology Co.,LTD )
Expert in making high quality push pull connector & cable assemble .
P romotion items with more than 8 years’ experience!
Our goal is to provide customers with the best service possible and to produce excellent quality .
Brand identification products will meet or
exceed your expectations
.
All items coming with certification
and we
have excellent team offering
best
connector solution
for your application.
FAQ:
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery.
one-year warranty for ≥6000 mating cycles .
Strictly quality control, connectors certified by TUV/CE/ROHS .
Q2: How can I get a connector’s sample?
Sample in stock is
free
; you just need to pay shipping cost.
Proofing fee & shipping cost will be charged in sample new design.
Q3: How long is your delivery time?
A: Sample is 1-3 work days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: Metal and plastic push pull self-locking connectors , actual or picture or part No. will assist to get a competitive price soon.
Q5: What’s the connector made of?
Metal type materials as below:
Out-shell: Brass plated pearl chrome
collet nut: Brass plated pearl chrome
insulator: PPS
collet: Brass plated nickel
contact: Brass, gold plated
split insert carrier: Brass plated nickel
Bend relief: PSU
Plastic type materials as below:
Out-shell: PC
Insulator: PPS
Contacts: Brass
Gold plated is not less than 0.2μ
Bend relief: PSU
Q6: What are the payment methods ?
A: T/T, PayPal, Western Union, Ali trade assurance.
Q7: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q8: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex,
Postal parcel and forwarder are acceptable.
We mainly supply push pull circular connector below, welcome your inquiry.
B series IP50 male female circular connector
K series IP68 waterproof circular connector
S series Half-moon male female connector
F series Half-shell keying connector
P series Plastic medical connector
H series industry male female connector
Customized connector cable assembly solutions
