Quick Details
-
Air Consumption:
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINLE
-
Voltage:
-
380V
-
Power:
-
85kw
-
Dimension(L*W*H):
-
7900*2500*3200
-
Weight:
-
15200 kg
-
Product name:
-
shotcrete robot
-
Application:
-
Mine and tunnel
-
Keywords:
-
Wet concrete sprayer
-
Capacity:
-
30M3/H
-
Drive mode:
-
Hydraulic Four-wheel Drive
-
Model:
-
ML-3015A
-
Brand:
-
MINLE
-
Color:
-
Customizable
-
Appearance dimension:
-
Customizable
-
Travel speed:
-
Maximum speed 25km/h
Quick Details
-
Max. Conveying Distance:
-
26m
-
Max Aggregate Size:
-
16mm
-
Hose Inner Diameter:
-
90 mm
-
Air Consumption:
-
15
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MINLE
-
Voltage:
-
380V
-
Power:
-
85kw
-
Dimension(L*W*H):
-
7900*2500*3200
-
Weight:
-
15200 kg
-
Product name:
-
shotcrete robot
-
Application:
-
Mine and tunnel
-
Keywords:
-
Wet concrete sprayer
-
Capacity:
-
30M3/H
-
Drive mode:
-
Hydraulic Four-wheel Drive
-
Model:
-
ML-3015A
-
Brand:
-
MINLE
-
Color:
-
Customizable
-
Appearance dimension:
-
Customizable
-
Travel speed:
-
Maximum speed 25km/h
|
|
Name requirement
|
Name requirement
|
Unit
|
Parameter
|
|
|
|
Gross weight
|
Gross weight
|
KG
|
15500
|
|
|
|
Dimensions (length * width * height)
|
Dimensions (length * width * height)
|
mm
|
7900*2500*3200
|
|
|
|
Rated engine power
|
|
|
85/2400
|
|
|
|
Braking mode
|
|
|
Air brake
|
|
|
|
Climbing ability
|
|
|
>14
|
|
|
|
Turning radius
|
|
m
|
12
|
|
|
|
Travel speed
|
|
km/h
|
>22
|
|
|
|
Power
|
|
kw
|
65+3
|
|
|
|
Maximum throughput
|
|
m3/h
|
30
|
|
|
|
Aggregate size
|
|
mm
|
0-10
|
|
|
|
Concrete slump
|
|
cm
|
120-200
|
|
|
|
Concrete transfer pressure
|
|
mpa
|
8.5
|
|
|
|
Diameter of concrete cylinder * stroke
|
|
mm
|
Φ180*1000
|
|
|
|
Hopper volume
|
|
m3
|
0.35
|
|
|
|
Hopper loading height
|
|
m
|
1.5
|
|
|
|
Big arm turning Angle
|
|
|
270°
|
|
|
|
Big arm pitching range
|
|
|
0-70°
|
|
|
|
Forearm pitching range
|
|
|
0-110°
|
|
|
|
Telescopic range of forearm
|
|
m
|
2*2.2
|
|
|
|
Mode of operation
|
|
|
Wireless remote control
|
|
|
|
Conveying pipe diameter
|
|
mm
|
90
|
|
|
|
Maximum transport capacity
|
|
L/H
|
800
|
|

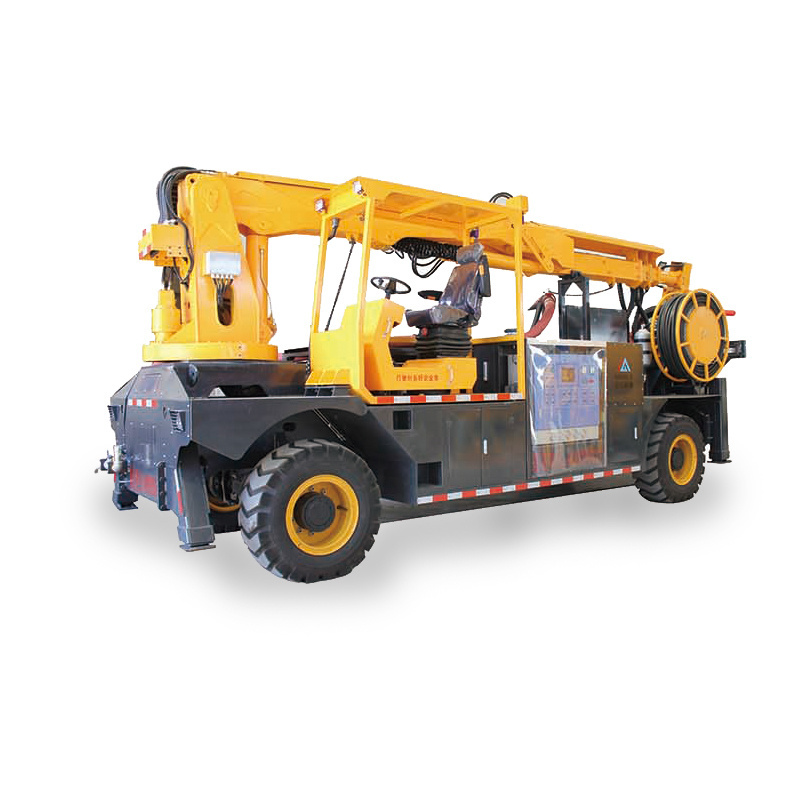

Wet concrete spray truck
Concrete wet spray trolley is a kind of spray anchor support equipment that sprays ready-mixed concrete to the sprayed surface at high speed and forms a concrete support layer after rapid coagulation. The basic principle is to send the mixed concrete into the wet sprayer to form a beam and spray it onto the sprayed surface; It is characterized by the strength of construction concrete is guaranteed, the spraying homogeneity is good, the productivity is high, the construction is basically dust-free, the rebound rate is low, and it is easier to quickly condense and harden and adhere to the tunnel base through a firm connection with the anchor hanging net, forming a primary lining support layer with certain supporting capacity.
1.What's the warranty time?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2.What's your payment term?We accept T/T(30% down payment and balance before shipping) and L/Cmostly, But if you prefer other payment terms please contact us for furtherinformation.
3. How long is your delivery time?Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goodsare not in stock, it is according to quantity.
4.Can we paint our label on your product?Of course! OEM and ODM are acceptable, please send us your logo or brandwe'll paint for you.
.
