Quick Details
-
Application:
-
Park
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Ruimin
-
Model Number:
-
RM-6000
-
frequency:
-
15khz
-
geocell lenght:
-
6m
-
welding horn number:
-
15pcs
-
horn material:
-
aluminium 6065
-
frame material:
-
steel
-
Welding distance:
-
50-800mm
-
Welded material:
-
HDPE
-
Weight:
-
5T
-
Working width:
-
6M
-
Compressed air:
-
0.6 ~ 0.9 MPa
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Free spare parts
-
Project Solution Capability:
-
graphic design
-
Application:
-
Park
-
Design Style:
-
Modern
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Ruimin
-
Model Number:
-
RM-6000
-
frequency:
-
15khz
-
geocell lenght:
-
6m
-
welding horn number:
-
15pcs
-
horn material:
-
aluminium 6065
-
frame material:
-
steel
-
Welding distance:
-
50-800mm
-
Welded material:
-
HDPE
-
Weight:
-
5T
-
Working width:
-
6M
-
Compressed air:
-
0.6 ~ 0.9 MPa

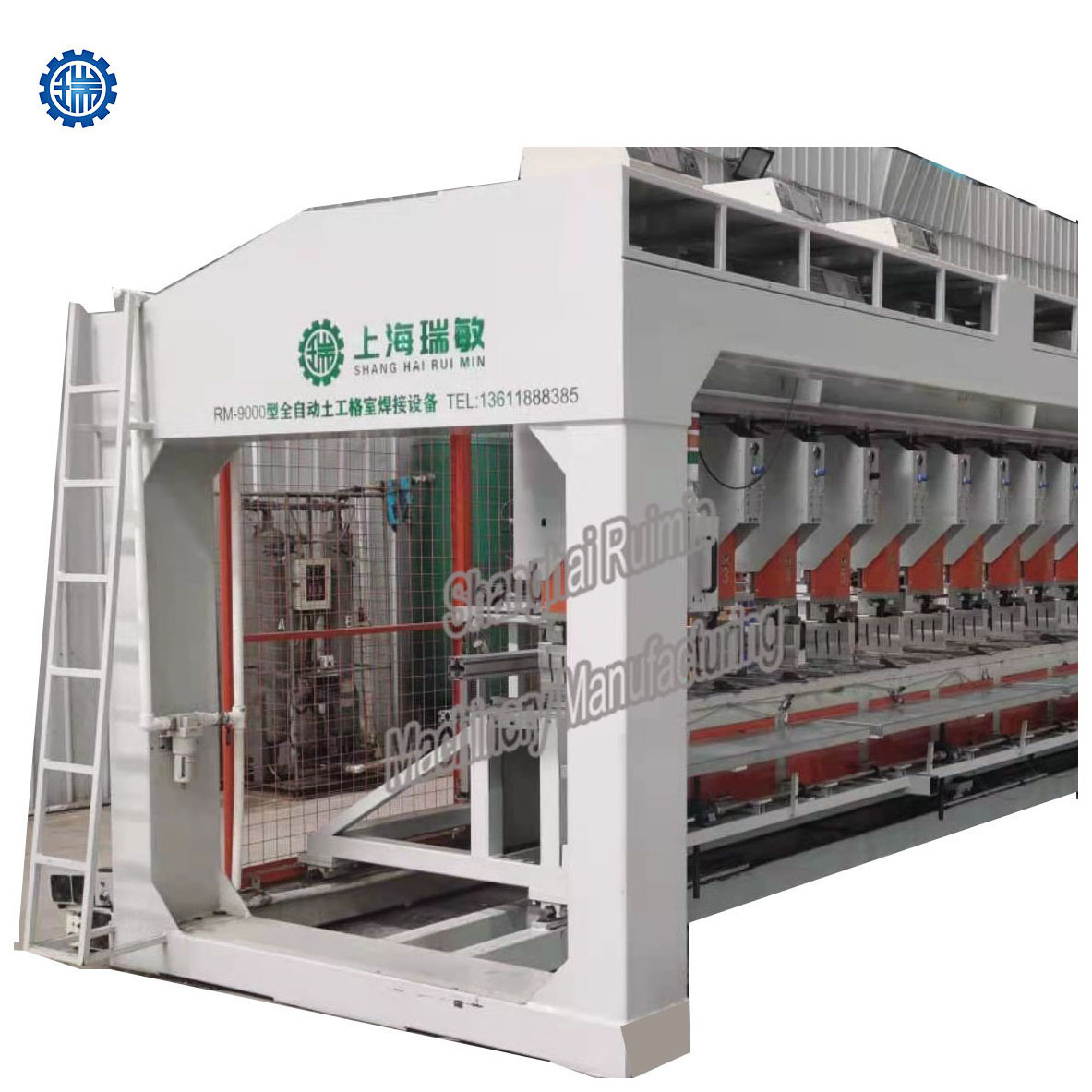

plastic driveway gravel grid geocells for soil stabilization geocell retaining walls Production Line:
The geocell is a honeycomb three-dimensional grid structure made of high-strength high-density polyethylene (HDPE) through high-frequency ultrasonic welding (or buckling).
It can be stretched freely, can be folded up when transported, and opened and filled with soil or concrete when in use, forming a structure with strong lateral restraint and large rigidity.
It can be used as a cushion to deal with the bearing capacity of fragile foundations,
it can also be laid on a slope to form a slope protection structure, and it can also be used to make a retaining structure.
1. plastic driveway gravel grid geocells for soil stabilization geocell retaining walls parameter :
| product name | geocell welding machine |
| Power output | 39kW |
| welding way | automatic /Maual |
| strips putting way | automatic /Manual |
| Welded material | HDPE |
| Geocell height | 50-200mm |
| Overall dimensions (L × W × H) | 8500 × 2000 × 2450mm |
| Weight | 5T |
| Working width | 6M |
| Compressed air | 0.6 ~ 0.9 MPa |
| Strips thickness | 1.0-3.0mm |
| distance between the seams | 300 mm, 800 mm |
2. Ultrasonic generator details :
Ultrasonic generator using German advanced automatic frequency tracking, high power output,
each point of welding time (a trip): 0.8~3.5 seconds
size :L360*W380*H125MM
weight:6kg
15khz 2800w
Qty :14 pcs
automatic frequency control generator which can match the welding horn automatically to extended the horn service life
4.High Quality Aluminium Welding Horn
Horn material is high quality aluminium 7075
Width of welding horn: 220 mm
Geocell height :50-200mm
the distance between the seams: 300 mm, 800 mm, height adjustable bottom die
welding spot design according to customer's requirement
5.punching machine for the geocell
6.geocell product application
7. welcome to visit our factory in shanghai
