- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
0.1%
-
Voltage:
-
220V 50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FILLING AUTO BRAND
-
Dimension(L*W*H):
-
2000*830*1600mm
-
Weight:
-
320 KG, 220kg
-
Product name:
-

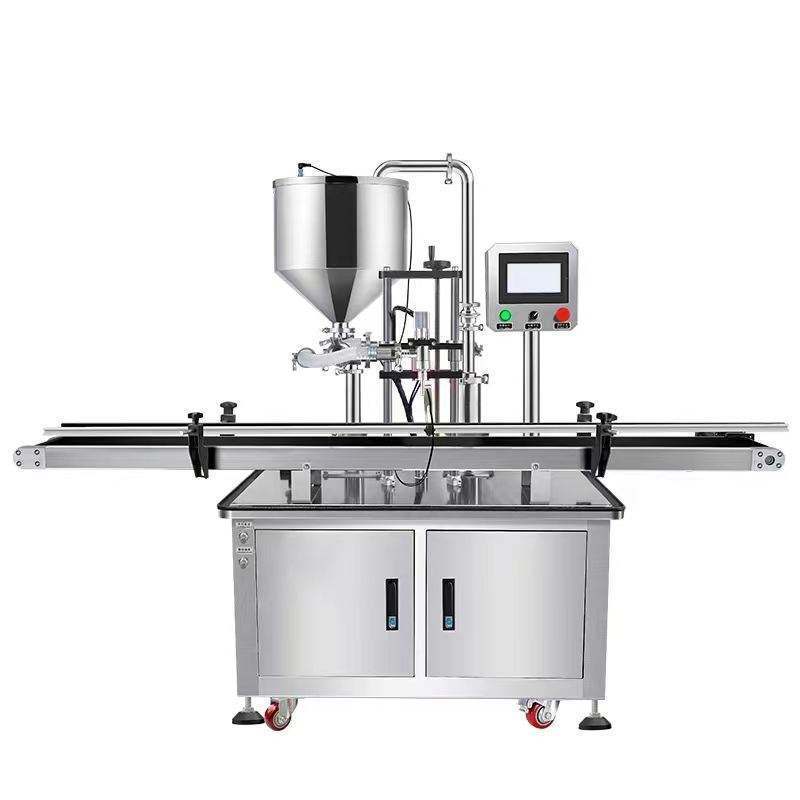

One Nozzle Gel Cream Sauce Servo Motor Pump Filling Machine
-
Filling speed:
-
20-140 bottles/min
-
Filling range:
-
10-5000ml
-
Powe:
-
220V 50Hz
-
Bottle height:
-
30-223mm Can be customized
-
Bottle diameter:
-
10-180mm Can be customized
-
Machine size:
-
2000*830*1600(mm)
-
After-sales Service Provided:
-
Video Technical Support
Quick Details
-
Machinery Capacity:
-
400BPH, 500BPH, 2000BPH, 1000BPH, Other
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Other
-
Filling Material:
-
Water, Oil, Juice, Other
-
Filling Accuracy:
-
0.1%
-
Voltage:
-
220V 50Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FILLING AUTO BRAND
-
Dimension(L*W*H):
-
2000*830*1600mm
-
Weight:
-
320 KG, 220kg
-
Product name:
-
One Nozzle Gel Cream Sauce Servo Motor Pump Filling Machine
-
Filling speed:
-
20-140 bottles/min
-
Filling range:
-
10-5000ml
-
Powe:
-
220V 50Hz
-
Bottle height:
-
30-223mm Can be customized
-
Bottle diameter:
-
10-180mm Can be customized
-
Machine size:
-
2000*830*1600(mm)
-
After-sales Service Provided:
-
Video Technical Support
Machine description：
Technical parameter
|
Filling speed
|
20-140 bottles/min（Depends on the filling volume of the material）
|
|
Filling accuracy
|
≦±0.3-1（Depends on the nature of the material）
|
|
Filling range
|
≥10ml
|
|
Power
|
220V 50Hz (customized)
|
|
Bottle height
|
30-350mm(Can be customized）
|
|
Bottle diameter
|
10-180mm（Can be customized）
|
|
Machine size
|
2000*830*1600（mm）
|
|
Weight
|
220kg
|
Machine advantage
PLC touch screen
Can actually be adjusted according to different products, easy to operate, built-in various formulas, one-key save and read, fool-like operation interface.
Suitable filling head(Customized)
Breaking through the traditional filling method, the height of the filling head can be adjusted according to the height of the bottle, and the filling range can be set on touch screen directly. The patented anti-drip filling head is adopted, and the whole process does not drip or leak, effectively preventing the contamination of the bottle body.
Customized pump base on raw materials
Bottle Feeder And Bottle Collector(OPTIONAL)
|
Parameters
|
1.Machine dimension (L*W*H ):1000MM*800MM*900MM
2.Weight :300kg 3.Suitable diameter of bottles :∅40mm~∅100mm 4.Diameter of turntable :∅800mm 5.Power supply :AC220V; 50HZ 6.Power :1.5KW 7.Production capacity :60~120 bottle /minute |
|
Major Characteristics
|
The rotary table adopts variable frequency stepless speed regulation for rotary movement, so that the bottle enters the conveyor belt in sequence under the action of rotating tangential force, and is matched with the packaging production line to achieve the purpose of saving labor and improving production efficiency. This machine is used for power on, easy to operate, can be widely used in medicine, pesticide, food, chemical and other industries of glass bottles, plastic bottles, polyester bottles, is an ideal auxiliary equipment for large, medium and small production workshops.
|
Advantage：
1. Frequency control of motor speed,adjustment for one key
2. High production efficiency, safety and reliability.
3. Whole machine are made of SUS 304.
2. High production efficiency, safety and reliability.
3. Whole machine are made of SUS 304.
