Quick Details
-
Rated Lifting Moment:
-
120KN.m
-
Max. Lifting Height:
-
12.5m
-
Span:
-
/
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOB-LIFT
-
Product name:
-

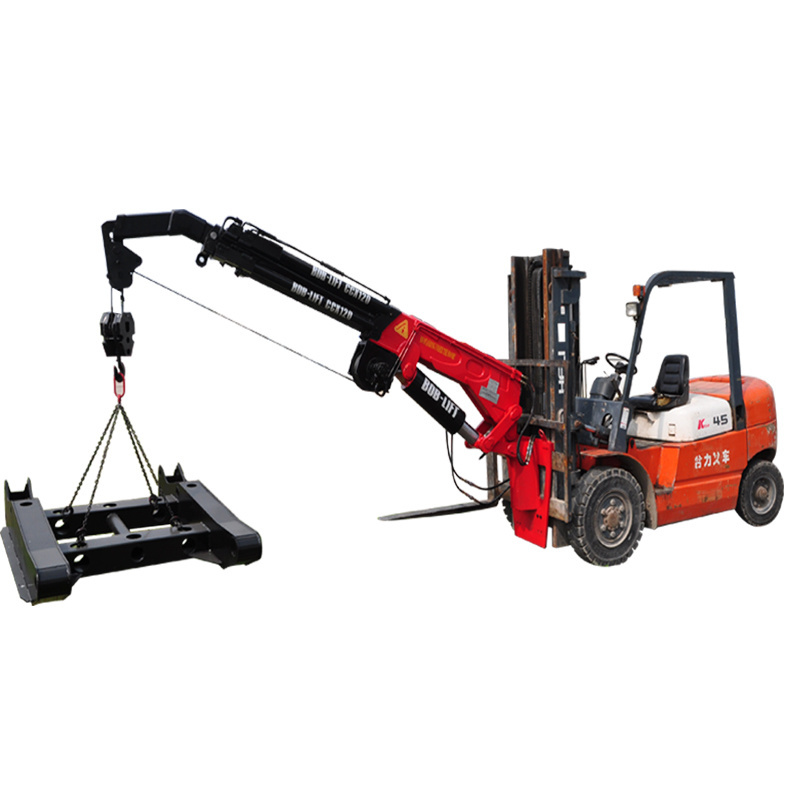

Telescopic Boom Extending Jib Forklift Truck Crane CZ120ZB3+1
-
Key words:
-
fork lift crane
-
Color:
-
Customer Requirements
-
Boom sections:
-
three-section telescopic cylinder arm, one-section manual arm
-
Tip load:
-
450kg
-
Max boom length:
-
9m
-
Matching:
-
Forklift
-
Property:
-
Safe and Reliable
-
optional attachments:
-
wireless remote control
-
Good Service:
-
Overseas service center available
Quick Details
-
Weight (KG):
-
1000
-
Application:
-
Construction
-
Rated Loading Capacity:
-
3 Ton
-
Rated Lifting Moment:
-
120KN.m
-
Max. Lifting Height:
-
12.5m
-
Span:
-
/
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOB-LIFT
-
Product name:
-
Telescopic Boom Extending Jib Forklift Truck Crane CZ120ZB3+1
-
Key words:
-
fork lift crane
-
Color:
-
Customer Requirements
-
Boom sections:
-
three-section telescopic cylinder arm, one-section manual arm
-
Tip load:
-
450kg
-
Max boom length:
-
9m
-
Matching:
-
Forklift
-
Property:
-
Safe and Reliable
-
optional attachments:
-
wireless remote control
-
Good Service:
-
Overseas service center available
Product Description
| CZ120ZB3+1 5t forklift jib | ||
| Item | Unit | Value |
| Max Lifting Capacity | kg | 3000 |
| Max Lifting Moment | KN.m | 120 |
| Max Lifting Height | m | 12400(3m gantry) 13900(4.5m gantry) |
| Min Working Distance | mm | 2700 |
| Max Working Distance | mm | 9000 |
| Rated Working Presure | Mpa | 20 |
| Rated Working Flow | L/min | 80 |
| Self Weight | kg | 1220 |
| Matching Forklift | t | 7/10 |
Packaging & Shipping
|
1.Check all the items and packaged well before loading. |
|
2.Make customized shipping mark ,like made in China. |
| 3.You can check loading or send picture to you. |
|
4.After shipping make documents for you, like B/L, packing list, invoice, CO, CIQ, FTA, Form A, according to your requirement. |
