Quick Details
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
durmapress
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
15000 KG
-
Place of Origin:
-
China
-
Voltage:
-
380v50hz
-
Dimension(L*W*H):
-
4880*1815*2000
-
Year:
-
2020
-
Product name:
-
shearing machine price list
-
Main motor:
-
Germany Seimens
-
Electrics components:
-
France Schneider
-
control system:
-
E21S Control system
-
Color:
-
Customizable
-
Function:
-
cuting sheet metal
-
Tubing connector:
-
Germany EMB
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting thickness:
-
16mm
-
Usage:
-
Cutting Sheet Sheet
-
Certification:
-
ce
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
16 mm
-
Shearing Angle:
-
1°40'
-
Blade Length (mm):
-
3200 mm
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
durmapress
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
15000 KG
-
Place of Origin:
-
China
-
Voltage:
-
380v50hz
-
Dimension(L*W*H):
-
4880*1815*2000
-
Year:
-
2020
-
Product name:
-
shearing machine price list
-
Main motor:
-
Germany Seimens
-
Electrics components:
-
France Schneider
-
control system:
-
E21S Control system
-
Color:
-
Customizable
-
Function:
-
cuting sheet metal
-
Tubing connector:
-
Germany EMB
-
Cutting material:
-
Metal Stainless Steel Carbon Steel Aluminum
-
Cutting thickness:
-
16mm
-
Usage:
-
Cutting Sheet Sheet
-
Certification:
-
ce

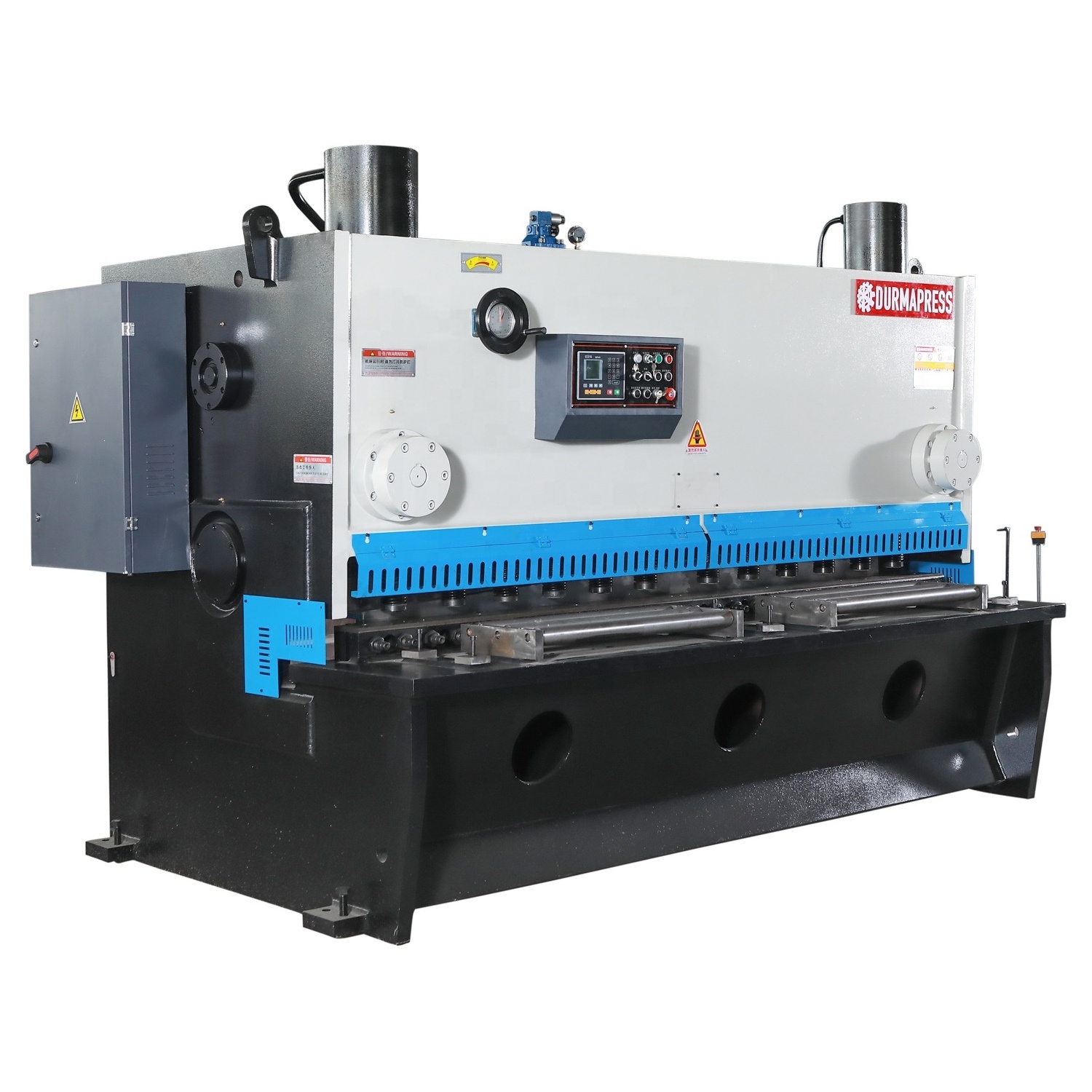

The guillotine-type shearing machine adopt frame structure with all-steel welding; four corners and eight right-angle guide rails with high precision, good rigidity, and hydraulic preloading. The hydraulic system adopts a two-way plug-in integrated valve; the entire system is adopted; the stroke number display, optoelectronic protection device and mobile worktable (easy to replace the mold) can be configured; the gate shear has double action of the upper slider and the lower hydraulic cushion. Function, working pressure stroke can be adjusted according to process requirements within the specified range. Easy to use button centralized control.
Main Features
1. Hydraulic Guillotine Shearing Machine Features include:
•The all steel welded structure , comprehensive treatment (VSR ,heat treatment ) to eliminate internal stress ,with good stability and steel :•The hydraulic stsyetm uses advanced German BOSCH Rexroth ,stable performance.
•All the components are from Siemens Germany, Sunny USA, Schneider France Rexroth Bosch Germany.
|
Machine Model
|
|
QC11Y 16X3200
|
|
||
|
Cutting Thickness
|
|
16mm mild steel (8mm stainless steel )
|
|
||
|
Cutting Width
|
|
3200mm
|
|
||
|
Cutting Angle
|
|
2°30'
|
|
||
|
Material Intension
|
|
≤450KN/CM
|
|
||
|
Travel times
|
|
8Time/Min
|
|
||
|
Main power
|
|
18.5kw
|
|
||
|
Overall dimension
|
|
3880*2150*2000mm
|
|
||
E21S Controller
Powered Back guage X-axis
DELTA Inverter controlled back gauge
HIWIN Ball screws&polished rod with 0.05mm accuracy
Squaring Arm and Front Support Arms
Germany EMB Tubing connector
Germany Bosch-Rexroth hydraulic
Germany Siemens main motor
Telemecanique/Schneider Electrics
Hydraulic &Electrocal overload protection
Cutting Line Illumination and wire for shadow line cutting
Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si).
1.ESTUN E21S Controller
Backgauge and block control
Control for general AC motors
frenquency inverter
Intelligent positioning
Stock counter
Holding / decompression time setting
Program memory of up to 40 program
Up to 25 steps per program
One side positioning
Retract function
One key backup / restore of parameters
mm /Inch
Chinese / English
Durmapress
founded in 2006,Maanshan Durmapress CNC Machinery Co.,Ltd is located in the Maanshan city ,Dangtu County,close to Nanjing Airport. Our geographical position is superior and the transportation is very convenient. Our company covers an area of 160 acres with the registered capital of 32,000,000 Yuan. We have more than 320 employees, including all types of engineering and technical personnel, serving the company R&D, production, and customers' service. At the same time, we have our own sales companies in each major and medium city.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Services:
1.Installation Services
Installation Services are available with all Our machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )
2.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
3.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data. Machine warranty is 2 years.
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
