Quick Details
-
Motor:
-
Stepper motor
-
Standard:
-
CE
-
Repeatability:
-
±0.02mm
-
Axis:
-
3 axis
-
Power supply:
-
220V 50-60Hz 350W
-
Function:
-
Glue Dispensing
-
Working range:
-
300*300*100mm
-
Voltage:
-
110V/200V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-

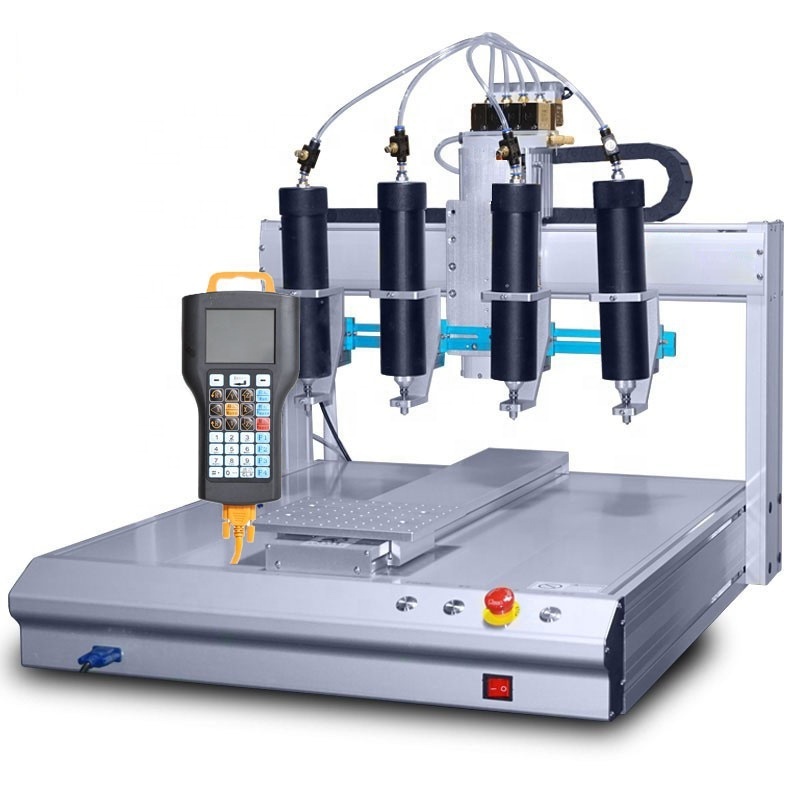

Liquid Silicone Dispensing Machine Capsule Dispensing Machine
-
Maximum Load:
-
X/Y : 10kg Z:5kg
-
Motor:
-
Stepper motor
-
Standard:
-
CE
-
Repeatability:
-
±0.02mm
-
Axis:
-
3 axis
-
Power supply:
-
220V 50-60Hz 350W
-
Function:
-
Glue Dispensing
-
Working range:
-
300*300*100mm
-
Voltage:
-
110V/200V
| Trip(mm) | 500/300/300/100 | 300/300/100 |
| programmatically | Import teaching programming or graphics | |
| Can move the graph track | PointJine,arc,circle,curve,multiple lines,spiral,ellipse | |
| Dispensing head | PUR dispensing machine /PUH dispensing machine | |
| Glue barrel | 30ml or 50ml | |
| Minimum discharge | 0.01ml | |
| The glue frequency | 5 times/SEC | |
| load | Y/Xaxleload | 10kg |
| Z axle load | 5kg | |
| Axial dynamic speed X/Y/Z | 0-600mm/sec | |
| Resolving power | 0.01mm/Axis | |
| Repeatability positioning accuracy(mm) | Screwdriver | 0.01-0.02 |
| Synchronousbeltdrive | 0.02-0.04 | |
| Programrecordmode | Atleast100,5000 points each | |
| Display mode | LCD teaching box | |
| Motor system | Japan precision micro-stepping motor | |
| Drive mode | Guide | Taiwan upper silver linear guide rail |
| Wire rod | Taiwan silver bar | |
| Belt | Italy Lartey synchronous belt | |
Show Details:
Dongguan Liujiang Automation Co., Ltd. is a manufacturer of the dispenser with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices, and stylish designs, our products are extensively used in dispensing and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
