Quick Details
-
Applicable Models:
-
For Abarth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IM608pro
-
Model Number:
-
IM608pro
-
Warranty:
-
2 Years
-
Name:
-
2022 Newest Autel IM608Pro Automotive Diagnostic Scanner
-
Type Name:
-
Automotivo Diagnostic Scanner
-
Language:
-
Muitl-languages
-
Keywords:
-
IM608Pro
-
Model Name:
-
Autel IM608 PRO
-
Color:
-
As photo show
-
Quality:
-
Superior
-
Feature 1:
-
Automated key learning
-
Product Name:
-
IMMO ECU reset
-
Feature 2:
-
Key generation
Quick Details
-
Car Fitment:
-
Universal, ACURA, Jcb, Universal Engine - Marine, Abarth
-
Voltage:
-
24V
-
Power:
-
24V
-
Applicable Models:
-
For Abarth
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IM608pro
-
Model Number:
-
IM608pro
-
Warranty:
-
2 Years
-
Name:
-
2022 Newest Autel IM608Pro Automotive Diagnostic Scanner
-
Type Name:
-
Automotivo Diagnostic Scanner
-
Language:
-
Muitl-languages
-
Keywords:
-
IM608Pro
-
Model Name:
-
Autel IM608 PRO
-
Color:
-
As photo show
-
Quality:
-
Superior
-
Feature 1:
-
Automated key learning
-
Product Name:
-
IMMO ECU reset
-
Feature 2:
-
Key generation
Kind reminder: IM608 PRO is currently only available in warehouses in Europe and the United States. Customers from other countries should use these two shipping addresses to purchase. If not, we suggest that you purchase the IM608 II. This device can be sent to customers anywhere. Thank you very much for your cooperation
Autel MaxiIM IM608 Diagnostic Tools IM608PRO Key Programmer Multi-brand Diagnosis PK IM508 IM508PRO
Language supported:
English, Spanish, French, German,
Polish, Italian, Japanese, Korean,
Dutch, Portuguese,Swedish, Russia
|
Autel IM608 Pro MaxiIM 608 Full Key Programmer OBD2 Scanner IM608Pro Car Diagnostic Tool IMMO Key Programming Updated IM508Pro
|
|
|
|
|
||||
|

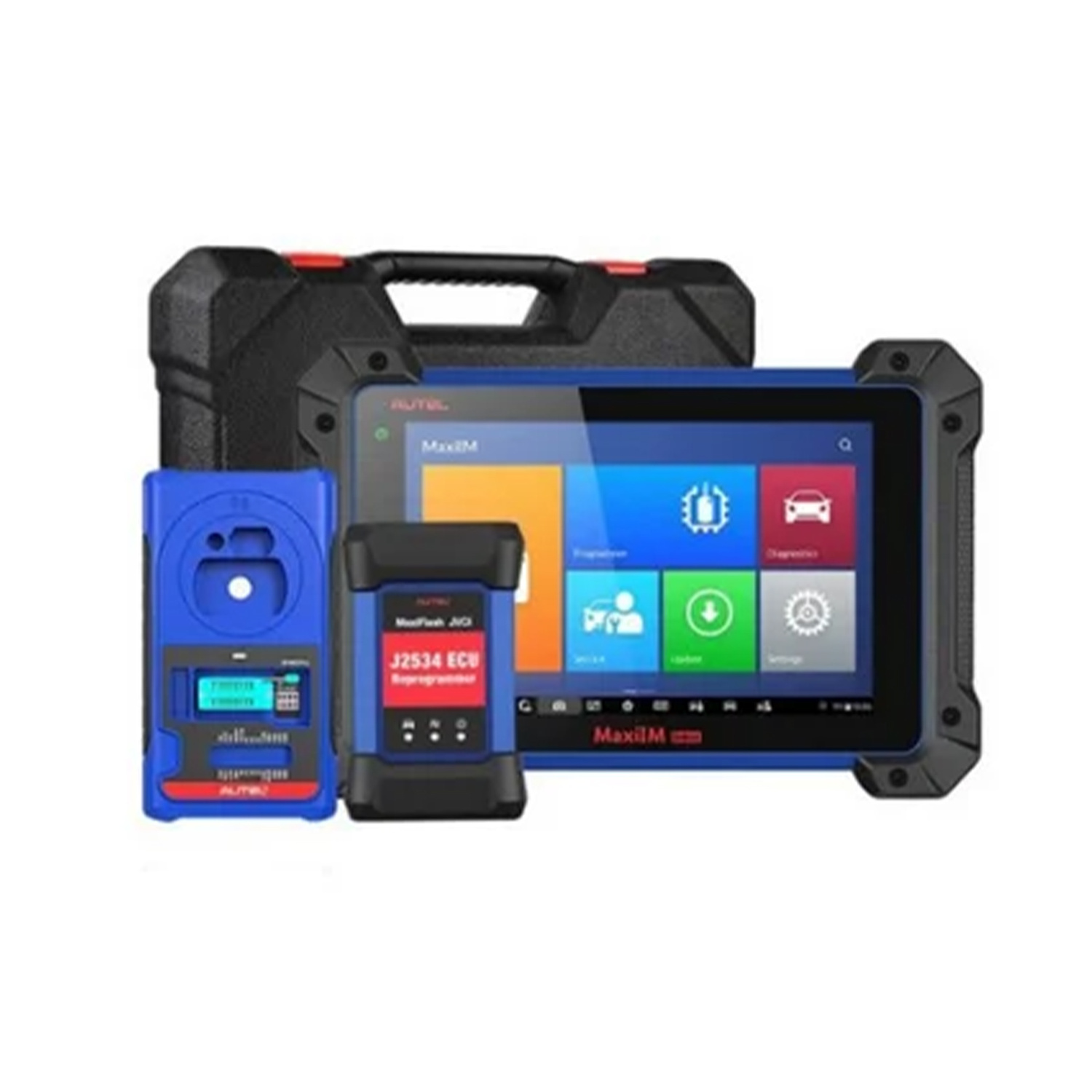

Autel MaxiIM IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and
immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash J2534 VCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths. |
|
|
|
|
||||
■ IMMO & Key Programming Expert
The Key Programmer XP400 is specially designed to read transponder data (including Mercedes Benz infrared smart key), clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool or PC those are both loaded with programmer software, the XP400 can read/write transponder data quickly and accurately. The XP400 include 9 parts:
-Transponder Induction Area – Remote control
-Transponder Slot – Hold the transponder
-Mercedes Infrared Key Slot – Hold the Mercedes infrared key
-Vehicle Key Slot – Hold the vehicle key
-IC Card Induction Area – Read/write IC card information
-Status LED – Indicate current operating status
-Cross Signal Pins – Hold the MCU board, MCU spare cable or DIY signal interface
-EEPROM Component Transponder Slot – Hold the EEPROM plug-in transponder or EEPROM socket
-Locker – Lock the EEPROM component transponder slot to ensure proper function
You can connect the IM608 tablet to the XP400 (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions.
The Key Programmer XP400 is specially designed to read transponder data (including Mercedes Benz infrared smart key), clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool or PC those are both loaded with programmer software, the XP400 can read/write transponder data quickly and accurately. The XP400 include 9 parts:
-Transponder Induction Area – Remote control
-Transponder Slot – Hold the transponder
-Mercedes Infrared Key Slot – Hold the Mercedes infrared key
-Vehicle Key Slot – Hold the vehicle key
-IC Card Induction Area – Read/write IC card information
-Status LED – Indicate current operating status
-Cross Signal Pins – Hold the MCU board, MCU spare cable or DIY signal interface
-EEPROM Component Transponder Slot – Hold the EEPROM plug-in transponder or EEPROM socket
-Locker – Lock the EEPROM component transponder slot to ensure proper function
You can connect the IM608 tablet to the XP400 (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions.
|
■ ECU Coding
The Coding function is used to re-flash the vehicle control modules, it allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing ways for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts. |
|
|
|
|
||||
|
■ J2534 Programmer
It is an SAE J2534-1 & -2 compliant PassThru reprogramming interface device, with stable, fast processing performance and strong compatibility. Using the updated OEM software, it is capable of replacing the existing software/firmware in the ECUs, programming new ECUs, and fixing software-controlled drivability issues and emission issues. Note: Need OEM software. |
|
|
|
|
||||
|
■ Active Test
The process of sending and retrieving information from a vehicle control module with a device is known as Actuation test or bi-directional control. The main aim of the actuation test function is to request the control module to perform a specific function including system tests, actuator tests, functional tests, inspection tests, reprogramming or reinitialization, thus saving diagnostic time. Eg: You connect a fuel pressure gauge, cycled the key and cranked the engine but you couldn’t figure out anything regarding the fuel pressure. With the actuation test function of this diagnostic tool, you can send a fuel pump command on instruction and see the proper fuel pressure, figuring out if there is a problem with the fuel pump circuit or pump. |
|
|
|
|
||||
|
All-system Diagnostic
Simply accessing the diagnostic modes via AutoVin or Control Unit, and you're able to perform diagnosis over all the systems onthe vehicle's ECU in order to locate fault systems and retrieve DTCs.ECU Information -provides the retrieved ECU information in detail. Read Codes -displays detailed information of DTC records retrieved from the vehicle control module. Erase Codes -erases DTC records and other data from the ECM. Live Data -retrieves and displays live data and parameters from the vehicle's ECU. Active Test -provides specific subsystem and component tests. |
|
|
|
|
||||
■ More than 30 Service Functions
30 Service Functions for various scheduled service and maintenance performances including : Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.
Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change
interval depend on the vehicle driving conditions and climate.
EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
And Many More...
30 Service Functions for various scheduled service and maintenance performances including : Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, Immo Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.
Oil Reset Service: Allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change
interval depend on the vehicle driving conditions and climate.
EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.
DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.
TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.
And Many More...
|
.
■ Wide Vehicle Coverage- 10,000+ models
For Audi: A1, A3, A4, A5, A6, RS4, B6, B7, RS5, RS6, A4 Allroad, A8, S8, Q3, RSQ3, Q5, Q7, R8, TT For Seat: Alhambra, Altea, Altea, Cordoba, CupraLeon, Exeo, Ibiza, Leon, Mii, Toledo For Skoda: Citigo, Fabia, Kamiq, Karoq, Octavia, Rapid, Roomster, Superb, Yeti For VW: Amarok, Arteon, Atlas, Beetle, Bora, BoraGli, Caddy, Crafter, EOS, Fox Africa, Fox EU, Fox, GTI, Gol County, Gol(5U), Gol(5W), Golf PLUS, Golf/Rabbit(1K), Golf6 ESTATE, Jetta, Parati, Passat, Phaeton, Polo, Scirocco, Sharan, Suran, T-Roc, Tiguan, Touareg, Touran, Transporter5/Multivan, up, UP!/cross UP! For Fiat: 500, 500L, 500X prox, Albea, Boxer, Daily, Doblo, Doblo New, Ducato, Egea, Fiorino, Freemont, Idea, Grande punto, Jumper, Linea, Marea, Nemo, Ottimo, Palio, Palio RST, Panda, Perla, Promaster, Punto, Sinea, Stilo, Viaggio And many more, you can check with our official website for car list. IM608 cannot support India local cars! |
|
|
|
|
||||
■ Autel MaxiIM IM608 Specification
·Operation System: Android 4.4.2,KitKat
·Processor: Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
·Memory: 2GB RAM & 64 GB On-board Memory
·Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution; Wi-Fi：(802.11 a/b/g/n/ac); USB 2.0
·Connectivity: BT v.2.1+EDR; SD Card (Support up to 32GB); HDMI
·Camera(rear): 8.0 Megapixel, AF with Flashlight
·Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
·Audio: Microphone; Dual Speakers
·Input/output: 3-Band 3.5mm stereo / standard headset jack
·Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
·Input Voltage: 12V (9-24V)
·Power Consumption: 6.5W
·Operating Temp: 0℃ to 50℃ (32 to 122℉)
·Storage Temp: -20℃ to 60℃ (-4 to 140℉)
·Dimensions(W*H*D): 300mm (11.81") x 220.0mm (8.66") x 50.0mm (1.97")
·Weight NW: 1.42kg (3.13lb.)
·GW: 8.655kg(19.08lb)
·Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, Highspeed,Middlespeed, Lowspeed and Singlewire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE
J1708, Fault-Tolerant CAN
·Operation System: Android 4.4.2,KitKat
·Processor: Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15)
·Memory: 2GB RAM & 64 GB On-board Memory
·Display: 10.1-inch LED capacitive touch screen with 1920*1200 resolution; Wi-Fi：(802.11 a/b/g/n/ac); USB 2.0
·Connectivity: BT v.2.1+EDR; SD Card (Support up to 32GB); HDMI
·Camera(rear): 8.0 Megapixel, AF with Flashlight
·Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
·Audio: Microphone; Dual Speakers
·Input/output: 3-Band 3.5mm stereo / standard headset jack
·Power and Battery: Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃
·Input Voltage: 12V (9-24V)
·Power Consumption: 6.5W
·Operating Temp: 0℃ to 50℃ (32 to 122℉)
·Storage Temp: -20℃ to 60℃ (-4 to 140℉)
·Dimensions(W*H*D): 300mm (11.81") x 220.0mm (8.66") x 50.0mm (1.97")
·Weight NW: 1.42kg (3.13lb.)
·GW: 8.655kg(19.08lb)
·Protocols: ISO9141-2, ISO14230-2, ISO15765-4, K/L-line, Flashing code, SAE-J1850 VPW, SAE-J1850PWN, CAN ISO11898, Highspeed,Middlespeed, Lowspeed and Singlewire CAN, GM, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6SAE J1939, SAE
J1708, Fault-Tolerant CAN
G-BOX2
Autel G-Box is designed to be used for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to reduce the time for reading the ECU data from W204 and W207 EISs by over 85%.
Autel G-Box is designed to be used for Mercedez-Benz vehicles with DAS3 CAN EIS/EZS in AKL. It helps to reduce the time for reading the ECU data from W204 and W207 EISs by over 85%.
