- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AKMK
-
Model Number:
-
ILTA0
-
MODEL:
-
ILTA0
-
Housing Material:
-
ALUMINUM
-
Accuracy:
-
0.2%,0.5%
-
Output signal:
-
SPST NO/NC
-
Measuring Range:
-
300-15000mm
-
Usage:
-
Level sensor,level switch
-
Transmitter type:
-
Level transmitter
-
Size:
-
82*156*248
-
Working Temperature:
-
-20~+85
-
Protection grade:
-
IP66
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AKMK
-
Model Number:
-
ILTA0
-
MODEL:
-
ILTA0
-
Housing Material:
-
ALUMINUM
-
Accuracy:
-
0.2%,0.5%
-
Output signal:
-
SPST NO/NC
-
Measuring Range:
-
300-15000mm
-
Usage:
-
Level sensor,level switch
-
Transmitter type:
-
Level transmitter
-
Size:
-
82*156*248
-
Working Temperature:
-
-20~+85
-
Protection grade:
-
IP66
Description

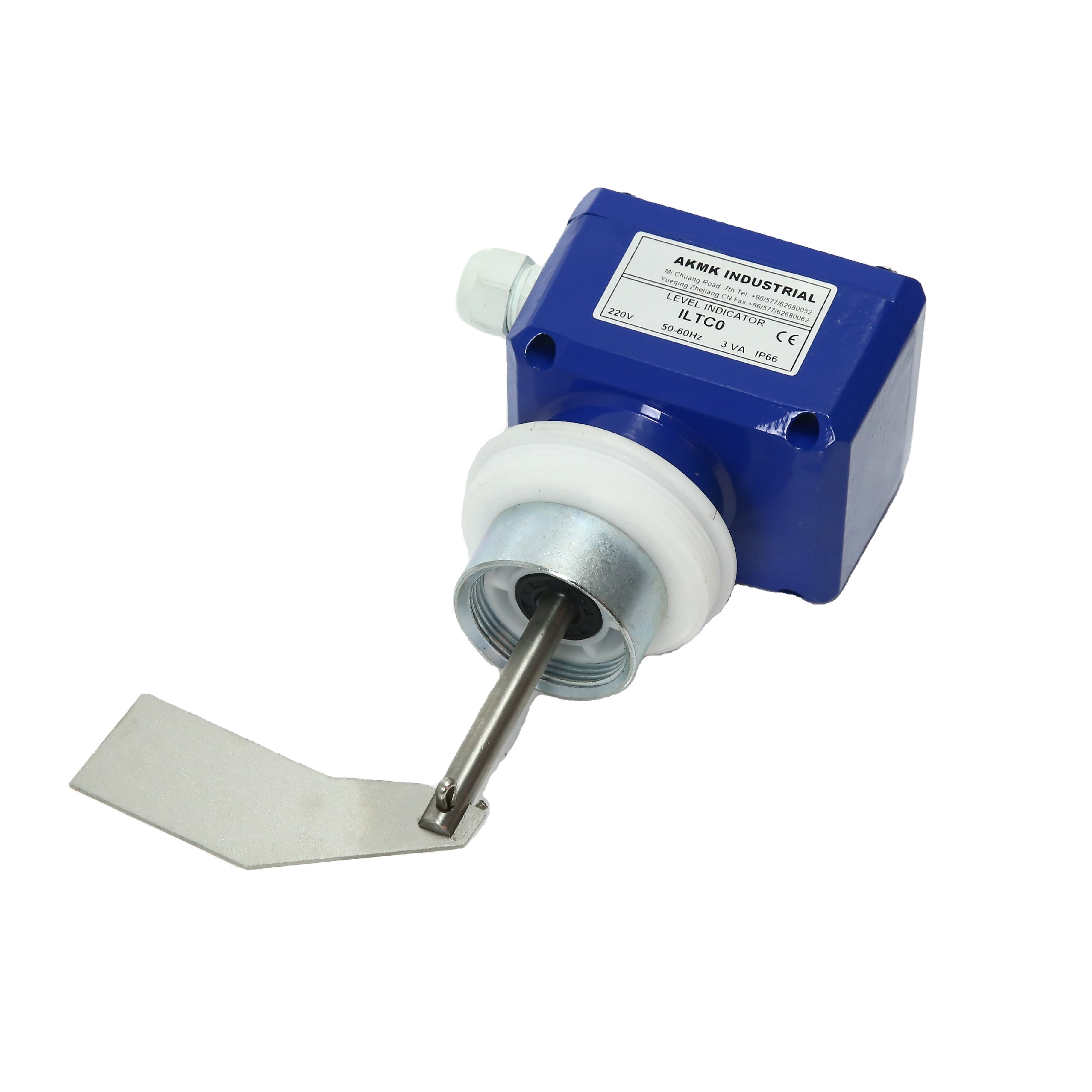

ILT-type box-level indicator in the hopper, hopper or silo in the lowest level or the highest material level to do rotary motion, to measure the electrical signal.
Features:
If the material is above the paddle, the paddle of the ILT-type bin level indicator will not turn. Once the material level drops below the rotary range of the paddle, the rotary motion starts and drives the other parts of the indicator. Top or side mounted indicators are typically used for materials with densities ranging from 0.5 t / m3 to 2 t / m3.
Performance - Features - Benefits:
• 24 V (AC), 50-60 Hz
• 110 V (AC), 50-60 Hz
• 230 V (AC), 50-60 Hz
• 24 V (DC)
• Standard connection: 1½ "
• Explosion-proof models identified by zone 20/21
• Easy to install
• Reasonable price
Options & Accessories:
Spring paddle
