Quick Details
-
Memory Type:
-
DDR4, DDR2, DDR3, SO-DIMM DDR4 2133/2400MHz Max8GB
-
Graphics Card Type:
-
Integrated
-
Brand Name:
-
LIMYEE
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel Celeron J4125/J4105/N4000 Processor
-
Display chip:
-
Intel UHD Graphics 600
-
Display output:
-
LVDS+HDMI+VGA ; LVDS+EDP2+VGA;EDP1+EDP2+VGA ; EDP1+HDMI+VGA
-
Multi display support:
-
Can support three display synchronous/asynchronous output
-
USB Ports:
-
4*USB3.2 GEN1(5Gbps)+6*USB2.0
-
Memory:
-
1*SO-DIMM DDR4 2400MHz Max8GB
-
Storage:
-
1 * SATA3.0 interface 1 * mSATA
-
Size:
-
170X170mm
-
Power supply:
-
DC/4PIN DC12V Power Supply
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Desktop
-
Form Factor:
-
Thin MINI ITX
-
Memory Type:
-
DDR4, DDR2, DDR3, SO-DIMM DDR4 2133/2400MHz Max8GB
-
Graphics Card Type:
-
Integrated
-
Brand Name:
-
LIMYEE
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel Celeron J4125/J4105/N4000 Processor
-
Display chip:
-
Intel UHD Graphics 600
-
Display output:
-
LVDS+HDMI+VGA ; LVDS+EDP2+VGA;EDP1+EDP2+VGA ; EDP1+HDMI+VGA
-
Multi display support:
-
Can support three display synchronous/asynchronous output
-
USB Ports:
-
4*USB3.2 GEN1(5Gbps)+6*USB2.0
-
Memory:
-
1*SO-DIMM DDR4 2400MHz Max8GB
-
Storage:
-
1 * SATA3.0 interface 1 * mSATA
-
Size:
-
170X170mm
-
Power supply:
-
DC/4PIN DC12V Power Supply

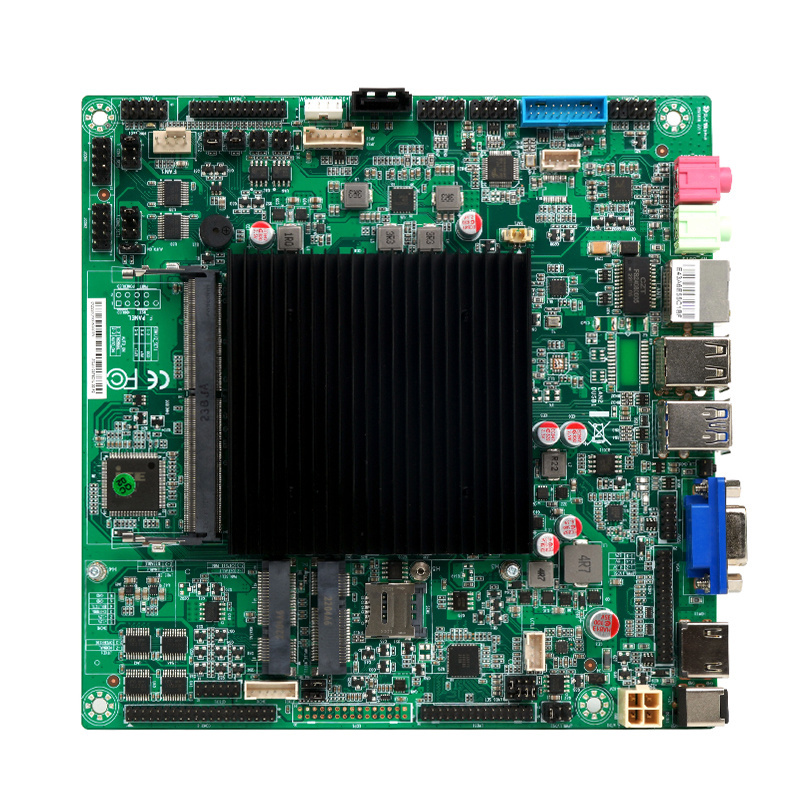

Specification
|
CPU
|
Intel® Celeron® J4125/J4105/N4000 Processor
|
|
Chipset
|
SOC
|
|
Display chip
|
Intel UHD Graphics 600
|
|
Display output
|
LVDS+HDMI+VGA ; LVDS+EDP2+VGA；EDP1+EDP2+VGA ; EDP1+HDMI+VGA
|
|
Multi display support
|
Can support three display synchronous/asynchronous output
|
|
USB
|
4*USB3.2 GEN1(5Gbps)+6*USB2.0
|
|
Memory
|
1*SO-DIMM DDR4 2400MHz Max8GB
|
|
sound effects
|
On board Realtek ALC269HD audio decoding controller
|
|
Network card
|
On board 1 * RTL8111H/RTL8111G Gigabit Ethernet card
(Optional dual port version) |
|
Storage
|
1 * SATA3.0 interface 1 * mSATA
|
|
BIOS
|
AMI BIOS
|
|
Power supply
|
DC/ATX 4PIN 12V power supply
|
|
Cooling System
|
Equipped with CPU heat sink
|
|
Environment
|
Working temperature: 0-60 ℃; Storage: -20 ℃~75 ℃
0%~95% relative humidity, non condensing |
|
Size
|
170X170mm
|
|
Power
|
DC+4PIN ATX 12V
|
|
Cooling System
|
FANLESS
|
|
Operating Humidity
|
0~60℃；-20% ~ 95% Relative Humidity,Non-condensing
|
|
Form Factor
|
170X170MM Thin MINI-ITX
|
|
Post I/O interface
|
1 * DC interface (P5.5&2.5mm DC Jack)
1 * HDMI interface 1 * VGA interface 2 * USB3.0 interface 2 * USB2.0 interface (LAN2 and 2 * USB2.0 optional) 1 * LAN1 * HP_ OUT interface 1 * MIC_ IN interface |
|
Internal I/O
|
1 * EDP2 pin
1 * VGA_ H pin 1 * F-AUDIO pin 1 * SPEAKER pin 1 * F_ USB3.0 pin (expandable 2 * USB3.0) 2 * F_ USB2.0 pin (expandable 4 * USB2.0) 1 * SATA pin 1 * SATA_ PWR pin 1 * JPS2 pin 1 * J_ PRINT pin 1 * F_ PANEL pin 2 * COM pin (supports one RS485 option, COM1 and COM2 support live reversible DCD/5V/12v) 1 * COM_ CONN pin (4 * COMRS232) 1 * GPIO pin 1 * LVDS pin/1 * EDP 1 pin 1 * INVERT pin 1 * LCTL pin 1 * 4PIN ATX socket |
