Quick Details
-
Products Name:
-
SFTP cat6 outdoor cable Lan Cable
-
Conductor Material:
-
Copper,Available(CCAG,CCA,CCS)
-
Insulation:
-
PE
-
Jacket Material:
-
Inner Jacket:PVC,Outer Jacket:PE
-
Shielded:
-
UTP,Available(FTP,STP,SFTP)
-
Certifcation:
-
UL,ROHS,CE,QC,CCC.
-
Standard:
-
TIA/EIA,568B
-
Sample:
-
Available for free
-
Packing:
-
1000ft(305m)/wooden drum,2drums in a Carton
-
Function:
-
Cabling systems (Outdoor,Waterproof)
Quick Details
-
Brand Name:
-
Z-Crown,OEM/ODM
-
Model Number:
-
ZC-6OS56BC
-
Place of Origin:
-
Guangdong, China
-
Products Name:
-
SFTP cat6 outdoor cable Lan Cable
-
Conductor Material:
-
Copper,Available(CCAG,CCA,CCS)
-
Insulation:
-
PE
-
Jacket Material:
-
Inner Jacket:PVC,Outer Jacket:PE
-
Shielded:
-
UTP,Available(FTP,STP,SFTP)
-
Certifcation:
-
UL,ROHS,CE,QC,CCC.
-
Standard:
-
TIA/EIA,568B
-
Sample:
-
Available for free
-
Packing:
-
1000ft(305m)/wooden drum,2drums in a Carton
-
Function:
-
Cabling systems (Outdoor,Waterproof)
Product Description

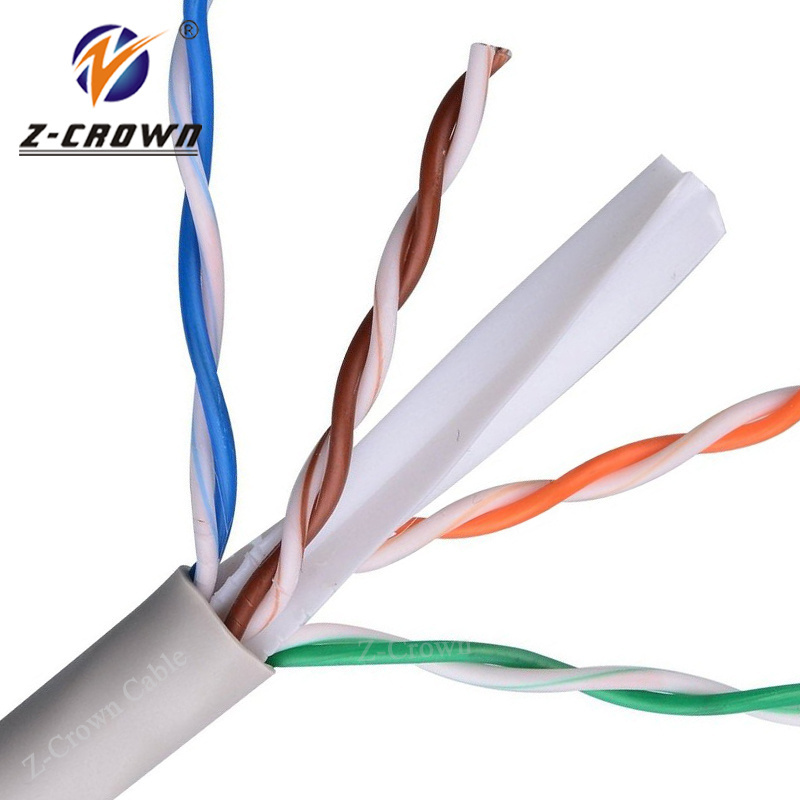

SFTP cat6 outdoor cable Lan Cable/Network Cable/Belden cat6 outdoor cable
- Application structured cabling for computer networks such as Ethernet over twisted pair.
- CAT6 cable support 100/1000,1GB Ethernet.
- Z-Crown utp/ftp/stp/sftp cat6 outdoor will support Ethernet,and Gigabit Ethernet. It can completely backwards compatible .
- Product testing is using MEA network analyzer that imported from Germany.
| Model | Cat 6 SFTP Outdoor Cable |
| Conductor Size | 23AWG, 24AWG, 25AWG |
| Stranded 7x0.12mm/7x0.16mm/7x0.20mm | |
| Conductor Material | BC/CCU/CCA/OFC/CCS |
| Nuber Of Conductor | 2P, 4P, 8P, 10P, 25P,32P, 50P, 100P, 200P |
| Shiled | UTP/FTP/STP/SFTP /SSTP |
| Flammability Grade: | CMX,CM,MP,CMG,MPG,CMR,MPR |
| Indoor / Outdoor | Single jacket / Double jacket |
| Insulation Material | PE , HDPE |
| Insulation Thickness | 0.55mm |
|
Number of pairs: 4 pairs
|
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
|
| Jacket Material | PVC, ROHS PVC, LSZH PVC |
| Jacket Thickness | 0.92-0.95mm |
| DC Resistance(Max.) | 9.5Ω/100m |
| DC Resistance Imbalance | 2.50% |
| Working Capacitance(Max.) | 5.4nF/100m |
| Insulation Resistance | 10000MΩ.km |
| Transmission Velocity | 65% |
| Operating Temperation | -20 °C - +75 °C |
| PVC Jacket Color | As client’s request. |
| Print Words On Cable |
CAT6 4P 23AWG VERIFIED TO
EIA/TIA 568B.ISO/IEC 11801 EN501 or clients' request. |
| Construcation Draw |
|
Packaging & Shipping
| Goods Name | Packing Type | Packing(mm) | Packing | Dimension(cm) | Unit.CBM | QTY/Container | |||||
| GIFTBOX | CARTON | GIFTBOX | CARTON | L | W | H | 20GP | 40HQ | |||
| CAT6 CABLE | IN GIFTBOX | 24*38*38 | 51*40*40 | 305m/roll | 2roll/ctn | 51 | 40 | 40 | 0.082 | 675 | 1650 |
| WOODEN REEL | 31.5*31.5*25.5 | 65*33*27 | 305m/Reel | 2reel/ctn | 65 | 33 | 27 | 0.058 | 950 | 2300 | |
